Inspection system for returnable glass containers

Ensure the safety and quality of your beverage containers with a precise and reliable empty bottle inspection system that detects even the smallest defects and contaminants in high-speed operations.

Inspects and Detects Defects in Bottles

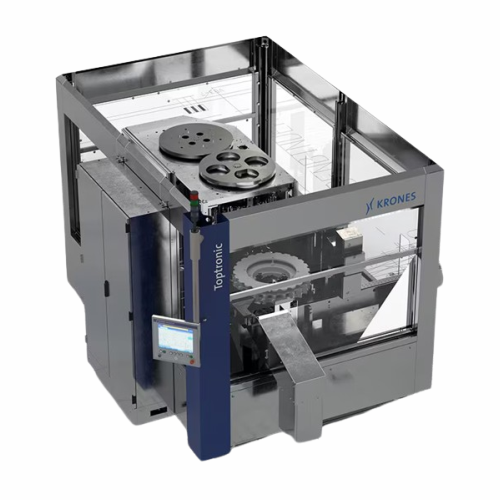

The Toptronic Empty Bottle Inspector from Krones leverages advanced camera technology to meticulously inspect and ensure the safety of glass and PET bottles in high-speed beverage production. Its modular system is tailored for precise detection of contaminants, cracks, and defects, integrating seamlessly into continuous operations. With no mechanical adjustments needed, this equipment allows easy cleaning and quick module retrofitting. Its inspection capabilities extend across numerous applications, including water, juice, and spirit bottles, providing high product safety with a false rejection rate of just 0.3%. The system’s seamless tracking minimizes downtime and enhances production efficiency, while its energy-efficient components reduce operational costs. The Toptronic is also customizable to meet specific production requirements, making it an invaluable asset for beverage manufacturers and packaging facilities striving for quality assurance and operational excellence.

Benefits

  • Enhances product safety by detecting even minute defects and contaminants.
  • Increases operational efficiency with a seamless, continuous inspection process.
  • Minimizes false rejections with a highly accurate inspection rate of just 0.3%.
  • Reduces maintenance requirements with no mechanical adjustments needed for cleaning.
  • Offers flexible inspection capabilities with easily retrofittable modules.

General


Applications
Pet bottles,Beverage containers,Returnable containers,Glass bottles,Liquid containers
End products
Beer bottles,Sauce bottles,Cosmetic jars,Spirit bottles,Water bottles,Condiment bottles,Food jars,Soft drink bottles,Juice bottles,Milk bottles
Steps before
Bottle washing,Sorting,Pre-inspection,De-palletizing
Steps after
Filling,Capping,Labeling,Packing
Input ingredients
empty glass containers,empty PET bottles
Output ingredients
inspected glass containers,inspected PET bottles,defect-free containers,containers with detected damages
Market info
Krones is renowned for its expertise in manufacturing beverage and liquid food processing and packaging equipment, offering comprehensive solutions that include filling, packaging technology, and processing systems, and is reputed for innovation and quality in the industry.

Technical Specifications


Detection type
Camera / Infrared / High-frequency
Contamination Detection
Non-transparent / Semi-transparent
Inspection Coverage
360° side-wall inspection
Size Range
1 mm size particles
Residual Liquid Detection Level
3 mm above the base
Residual NaOH Detection Level
1.5% moisture
False Rejection Rate
0.3%

Operating Characteristics


Inspection method
Camera-based
Automation level
PLC
Inspection modules
Multi-tasking
False rejection rate
0.3%
Container tracking method
Seamless
Machine stop
No
Inspection angle
360°
Retrofitting capability
Expandable
Residual detection
Infrared,High-frequency
Cleaning requirement
Simple

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Inspection modules
Customizable
Discharge method
Fixed position conveyance

Custom Options


Inspection modules
Retrofittable
Machine position
Fixed
Camera technology
State-of-the-art
Container types
Glass / PET
Inspection units selection
Customizable
Energy-saving components
Available
