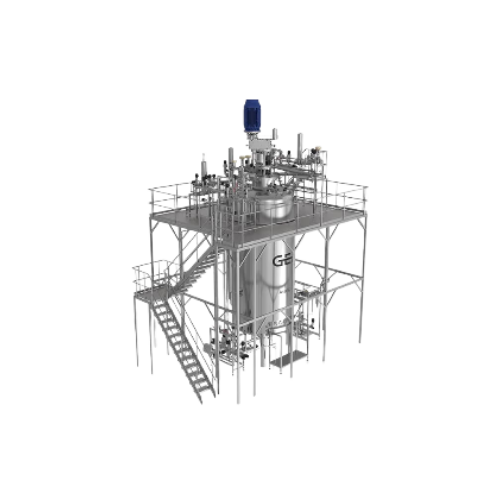

Industrial-scale bioreactor for new food applications

Unlock the potential of cultivated meats and alternative proteins with a bioreactor system designed for precision cell cultivation, enabling seamless scale-up from lab to industrial production in new food applications.

Cultivates and Ferments Cells for Food Production

The Axenic® C Bioreactor from GEA is an industrial-scale system specifically designed for cultivating mammalian and eukaryotic cells in the food industry, focusing on applications like cultivated meats and precision fermentation. Utilizing a stirred tank reactor approach, it allows both fed-batch and continuous cultivation processes, making it suitable for producing cultured chicken breast and plant-based protein patties. The system integrates GEA’s Virtual Bioreactor Testing technology, which employs digital twin simulations to optimize shear forces, oxygen transfer rates, and temperature settings tailored to your specific cell cultures.

Importantly, the Axenic® C is fully automated, featuring the GEA Codex® process control platform for enhanced operational stability and reduced manual intervention, minimizing contamination and maximizing process repeatability. It offers multiple gas connections and perfusion capabilities to manage gas dissolution and remove inhibitory by-products, ensuring consistent cell growth and high yield production. Compliance with food industry regulations makes it ideal for innovators in cultivated fats and new food sectors. The system supports CIP for effective cleaning, and its modular design can be customized with expert engineering support to fit seamlessly into both upstream and downstream processes, enhancing your production line’s efficiency and sustainability.

Benefits

  • Boosts production efficiency with continuous, fully automated operation.
  • Enhances yield reliability through precise control of shear forces and oxygen transfer.
  • Lowers operational costs by integrating waste-reducing perfusion technology.
  • Ensures compliance with food industry standards for cultivated and fermented products.
  • Facilitates innovation with customizable setups and real-time virtual testing insights.

General


Applications
Precision fermentation,Alternative proteins,Cultivated meats,Cell cultures,Cultivated fats,New food applications,Fermentation-based foods,Plant-based foods
End products
Precision-fermented cheese,Synthetic pork sausage,Plant-based protein patties,Plant-based egg substitute,Lab-grown beef steak,Cultured chicken breast,Cultured fish fillets,Fermented dairy-free yogurt,Cultivated duck meat
Steps before
Design Study,Process Evaluation,Cell Cultivation Preparation,Oxygen and Nutrient Delivery Setup
Steps after
Harvesting,Sterile Barriers Application,Process Control and Monitoring,Waste Reduction and Resource Management
Input ingredients
mammalian cells,eukaryotic cells,animal cells,oxygen,nutrients,CO2
Output ingredients
grown cell cultures,cultivated meats,cultivated fats,hybrid products,non-adherent eukaryotic cell types
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Automation
Fully automated
Oxygen transfer rate
Adjustable via virtual testing
Shear force management
Adjustable via virtual testing
Temperature control
Customizable for cell requirements
Gas connections
Multiple,for O2 and CO2 control
Perfusion technology
Optional configuration
Fed-batch and continuous cultivation
Available
Monitoring and feedback control
GEA Codex® platform

Operating Characteristics


Working Mechanism
Stirred tank reactor
Batch vs. Continuous Operation
Fed-batch and continuous
Automation Level
Fully automated
CIP/SIP
Automated,24/7 operation
Cleaning Method
CIP / SIP
Air Incorporation Control
Perfusion technology with gas connections for O2 and CO2

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Tank shape
Stirred tank reactor
Control panel type
Automated with GEA Codex®
Compact footprint
Yes
Discharge method
Continuous or fed-batch
Automation
PLC-controlled
Feed/discharge method
Automated continuous feeding

Custom Options


Control panel type
HMI with GEA Codex® process control platform
Integration possibilities
Virtual Bioreactor Testing technology
Automation level
Fully automated with valve feedback
Perfusion technology
Configurable for removal of inhibiting products
