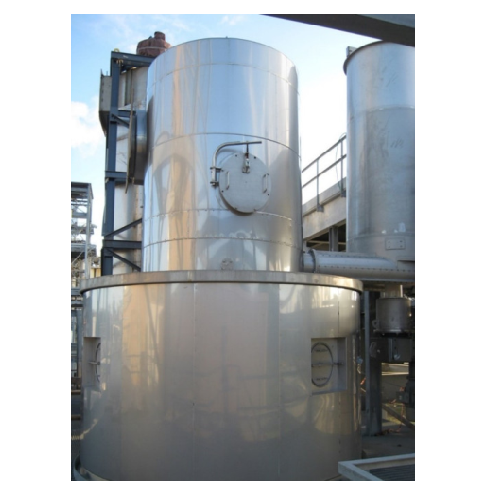

Industrial roto-flash dryer for chemical applications

Achieve uniform moisture and particle size in demanding drying processes with minimal setup, efficiently handling varied input forms such as cakes and pastes.

Efficiently Dries and Agitates Diverse Materials

The Roto-Flash Dryer from Dedert is an agitated flash dryer engineered for precise moisture removal across various industrial processes. This dryer stands out with its compact single-pass design and internal feed agitation, eliminating the need for external back-mixing. Operating with inlet temperatures up to 750°C, it ensures efficient and rapid drying within a few seconds. Primarily used in the chemical industry, it efficiently processes materials like silica, pigments, and titanium dioxide, and extends applications to food ingredients and biofuels, producing end-products such as silica gel and xanthan gum. Handling capacities accommodate cakes, pastes, fluids, and powders, with consistent particle size and moisture content delivery. Integration is seamless with continuous operation, automated control, and adaptability to process conditions. Energy efficiency is achieved through a tangential air inlet and rotor action for uniform gas flow, while construction options ensure durability and resistance to corrosion. Dedert provides customization and support to tailor this equipment for specific production requirements.

Benefits

  • Optimizes energy usage with rapid drying cycles and high inlet temperatures.
  • Enhances product quality by maintaining consistent particle size and moisture content.
  • Increases operational efficiency with continuous and automated processing.
  • Adapts to diverse material inputs, reducing the need for pre-treatment.
  • Minimizes installation footprint with its compact, single-pass design.

General


Applications
Grains,Titanium dioxide,Silica,Inorganic pigments,Chemical,Plant-based protein,Food ingredients,Starch,Organic pigments,Biofuel
End products
Corn starch,Rutile pigments,Carotenoid pigments,Silica gel,Sodium hydroxide,Textured vegetable protein,Ethanol,Rice flour,Iron oxide pigments,Xanthan gum
Steps before
Purification,Grinding,Emulsification,Mixing
Steps after
Sterilization,Packing,Coating
Input ingredients
cakes,pastes,fluids,powders,silica,organic pigments,inorganic pigments,titanium dioxide
Output ingredients
fine powder,uniform moisture content,consistent particle size distribution
Market info
Dedert is known for its expertise in designing and supplying advanced drying and evaporation technologies, serving the chemical, food, and other processing industries with innovative and efficient engineered-to-order solutions.

Technical Specifications


Drying air temperature
Up to 750°C
Feed compatibility
Cakes,pastes,fluids,powders
Air residence time
Few seconds
Product output
Fine powder with uniform moisture
Drying chamber type
Vertical cylinder
Agitation method
Integrated internal feed agitation
Power source for heating
Direct fired gas burner
Air inlet type
Annular,tangential
Rotor type
Axially mounted

Operating Characteristics


Working Mechanism
Agitated flash drying
Integrated Steps
Internal feed agitation
Air Residence Time
Few seconds
Inlet Temperature
Up to 750°C
Batch vs. Continuous Operation
Continuous
Energy Efficiency
Cost-effective in investment and running costs
Changeover Time
Not applicable due to continuous process
Feed Type Compatibility
Cakes,pastes,fluids,and powders

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Drying chamber shape
Vertical cylinder
Drying chamber design
Annular air inlet and axially mounted rotor
Footprint
Compact single pass dryer
Feed method
Feed via load cells with agitator and feed screw
Discharge method
Rotary action with mechanical dispersion
Air inlet temperature
Up to 750°C

Custom Options


Control panel type
PLC / HMI
Integration possibilities
SCADA / DCS
Internal feed agitation
Yes
Inlet temperature range
up to 750°C
Material feed types
Cake / Paste / Fluid / Powder
Drying air heating method
Direct fired gas burner
