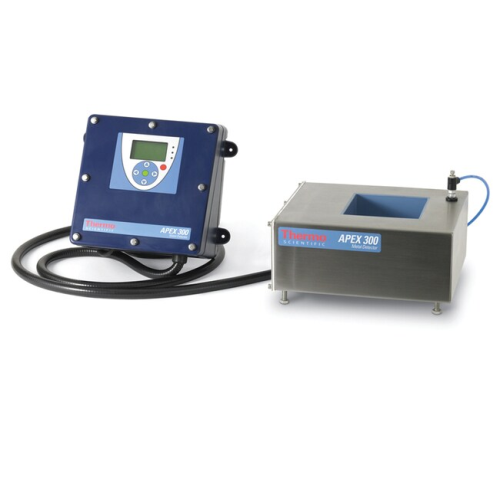

Industrial metal detector for food and beverage applications

Ensure your production line is free from metal contaminants and maintains quality standards with this compact detector, designed for seamless integration into high-speed operations across various products and formats.

Detects and Monitors Metal Contaminants

The APEX 300 Flexible Metal Detector from Thermo Scientific offers an adaptable solution for precise metal detection across food, beverage, and manufacturing industries. Utilizing a unique multi-coil design, it ensures consistent magnetic flux for reliable detection, even in complex products. Enhanced with Intellitrack XR signal processing and dual frequency capabilities, it suits diverse applications from cornflakes to pharmaceutical tablets.

Operating at speeds up to 1000 m/min and accommodating a wide range of product sizes, the APEX 300 integrates effortlessly into automated production lines with ModBus or Ethernet communication options for remote control. Built with durable stainless steel and ABS plastic, it meets cCSAus, CE, and ATEX zone 22 standards, ensuring robust performance. Its user-friendly interface with multilingual support and optional AuditCheck system simplifies operation and maintenance, offering custom configurations that align with your specific quality assurance protocols and production requirements.

Benefits

  • Enhances product safety by detecting metal contaminants with high precision.
  • Adapts to various production lines, minimizing installation time and costs.
  • Lowers operational interruptions with a user-friendly interface and remote monitoring capabilities.
  • Ensures compliance with international safety and quality standards, reducing risk.
  • Offers versatile application support, accommodating diverse product types and sizes.

General


Applications
Food,Beverages,Snacks,Pet food,Nutraceuticals,Sweets,Pharmaceuticals
End products
Cornflakes,Dog kibble,Bottled water,Potato chips,Chocolate bars,Tablets,Vitamin capsules
Steps before
Grinding,Mixing,Blending,Pre-packaging
Steps after
Inspection,Packaging,Labeling,Distribution
Input ingredients
food products,beverages,other products
Output ingredients
metal-free products,rejected products with metal contaminants
Market info
Thermo Fisher Scientific is renowned for providing innovative scientific instruments, laboratory equipment, and engineered-to-order solutions across various industries, esteemed for their high-quality products and expertise in life sciences, pharmaceuticals, and biotechnology sectors.

Technical Specifications


Input Types
6 Inputs - Active low with auxiliary supply for input sensors,NPN sinking
Electrical Requirements
85/260 V AC single phase plus earth ground
47/65 Hz,100 watts max.
Speed
0.5 m/min (1.7 ft/min) to 1000 m/min (3300 ft/min)
Operating Temperature
Ambient Temperature -10° to 40°C (14° to 104° F)
Product Temperature in Aperture
-10° to 55°C (14° to 131° F),Kynar™ liner option -10° to 120°C (14° to 248° F)
Maximum Washdown Temperature
80°C (176° F)
Output Types
6 Relay outputs
Relays
250 volt AC 2 amp max. 50 volt DC 1 amp max
Aperture Size
Width
Communications
Optional ModBus serial or Ethernet modules
IP Rating
IP69K
Relative Humidity
20 to 80% non-condensing
Detection type
Metal

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Inline Continuous
Energy efficiency
100 watts max
Operating Temperature
Ambient Temperature -10° to 40°C (14° to 104° F)
Product Temperature in Aperture
-10° to 55°C (14° to 131° F)
Maximum Washdown Temperature
80°C (176° F)

Material Compatibility


Corrosive resistance (e.g. acids)
Yes
Cleanability
High
Density/particle size
0.5–2.5 g/cm³


ATEX certification
Zone 22

Physical Characteristics


Aperture Size
Width
Control panel type
ABS plastic
Compact footprint
Yes,small and easy to install
Construction
Stainless steel 304
Customization
Drop through,pipeline,and check weighing

Custom Options


Control panel type
Solid-state,touch operation control panel
Integration possibilities
Optional ModBus serial or Ethernet modules
Product flow styles
Horizontal and vertical product flows
Software enhancements
Optional AuditCheck performance validation system
Display interface
Icon-driven interface with multilingual help
