Industrial lump breaker for particle size reduction

Optimize your production line with an advanced solution for efficient size reduction, capable of handling tough grinding and crushing applications in continuous, high-speed operations.

Reduces and Crushes Solid Material Efficiently

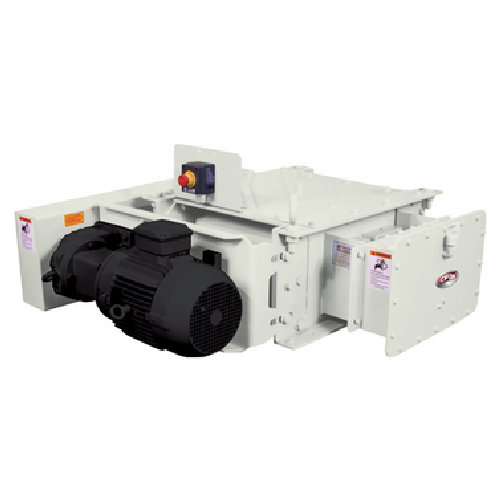

The Gladiator Lump Breaker from CPM is engineered for demanding size reduction and grinding applications across diverse industries including animal feed, ethanol, and biomass processing. With abrasion-resistant construction, it combines durability and efficiency. Capable of processing materials into particles as fine as 100 microns, the Gladiator suits applications from cattle feed production to hemp processing.

The equipment operates continuously, optimized for high-speed tasks vital in rendering plants and aquaculture facilities. A capacity range from 40 to 300 TPH ensures it meets varying demands. Its direct-coupled drive and four-bolt tapered roller bearings facilitate seamless integration into existing processes.

Material handling flexibility is offered with options for carbon or stainless steel configurations, enhancing corrosion resistance. An emergency stop and electronic shear pin ensure safe operation. For customizable solutions, engineering support is available for rotor speed adjustments and contact point material choices, helping tailor its use to specific production needs.

Benefits

  • Enhances processing efficiency with high-speed continuous operation, reducing material handling time.
  • Supports diverse material requirements with customizable configurations for different corrosion resistance needs.
  • Improves operational safety through emergency stop features and electronic shear pin for jam protection.
  • Facilitates seamless integration into existing lines, minimizing setup and changeover delays.
  • Optimizes particle size control, ensuring consistent quality and specification adherence in end products.

General


Applications
Aquaculture,Animal feed,Ethanol,Pet food,Hemp,Food industry,Oilseed processing,Rendering,Biomass
End products
Dog kibble,Wood pellets,Bone meal,Hemp hearts,Ethanol fuel,Fish feed pellets,Cattle feed pellets,Breakfast cereals,Soybean meal,Corn oil
Steps before
Pelleting,Particle Size Reduction,Oilseed Preparation
Steps after
Weighing,Cooling,Briquetting
Input ingredients
large lumps,bulk materials,solid chunks,coarse materials
Output ingredients
fine particles,grinded material,reduced size particles,processed fine material,particles < 3/8 in,particles < 10 mm
Market info
CPM is known for manufacturing high-quality process equipment and technology solutions for the industrial and agricultural sectors, specializing in particle size reduction, conditioning, and pelleting solutions with a strong reputation for reliability and innovation.

Technical Specifications


Speed
Low or high speeds from 7.5 HP to 30 HP
Capacity
40-300 TPH
Particle Size
Several inches to 100 microns
Motor Type
6 pole motor per shaft
Construction Material
Carbon steel,Stainless steel
Rotor Blade Thickness
Half-inch thick
Emission
Gravity bottom discharge
Drive Type
Direct-coupled drive
Automation
Electronic shear pin for jam protection

Operating Characteristics


Operation
24-hour continuous
Speed
Low or high speed
Automation level
Manual or PLC
Changeover time
Easy assembly of rotors
Discharge method
Gravity bottom discharge
Safety
Emergency stop protection

Material Compatibility


Abrasion resistance
Yes
Corrosive resistance (e.g. acids)
Yes
Density/particle size
100 microns to several inches
Cleanability
Yes

Physical Characteristics


Machine Footprint
965 x 1,225 mm
Discharge Method
Gravity bottom discharge
Construction Material
Carbon steel
Rotor Blade Material
Carbon steel over-tip-hook
Rotor Shaft Features
Air purge,lip seals,oil bath
Bearing Type
Four-bolt tapered roller bearings
Drive Type
Direct-coupled drive

Custom Options


Material Construction
Carbon steel / Stainless steel contact points
Rotor Type
Replaceable half-inch thick carbon steel over-tip-hook rotor blades
Discharge Method
Gravity bottom discharge
Drive Type
Direct-coupled drive
Feature Add-ons
Electronic shear pin for jam protection
Protection Features
Emergency stop protection
