Industrial hammer mill for size reduction in food and feed processing
Achieve precise grinding and milling for diverse feed and food products with this state-of-the-art hammer mill, designed to enhance production efficiency while ensuring minimal downtime in high-speed, continuous operations.
Performs Efficient Grinding and Size Reduction

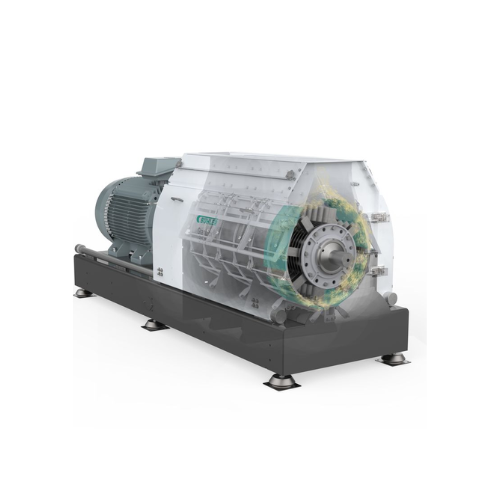

The Granulex® 3 Series from Bühler is a versatile hammer mill designed for efficient grinding and milling in the food and feed industries. This equipment excels through its unique ability to handle both coarse and fine grinding applications with a high degree of flexibility, thanks to its multi-chamber structure and adjustable hammers. It effectively processes materials such as livestock feed pellets, flour, and soybean meal, achieving high throughput with its innovative grinding chamber design. With a processing capacity that can increase throughput by over 10%, the Granulex 3 Series integrates seamlessly into continuous operations with its automated PLC system and tool-free maintenance features. Options for different screen sizes and hammer configurations allow for customization to specific material needs, ensuring optimal performance across various industry sectors. Additionally, its user-friendly design with easy-access doors and interlocked rotors enhances safety and simplifies maintenance tasks, minimizing downtime.
Benefits
- Maximizes throughput with over 10% increased capacity.
- Enhances operational flexibility with customizable configurations for various applications.
- Minimizes maintenance time with tool-free screen and hammer changes.
- Ensures safe operation with interlocked rotor and easy-access sliding doors.
- Optimizes energy use by efficiently breaking material circulation layers.
- Applications
- Brewery,Animal feed,Pet food,Oilseed,Grain processing,Aqua feed
- End products
- Dog kibble,Livestock feed pellets,Beer production,Flour,Fish feed pellets,Soybean meal
- Steps before
- Grain handling,Dehulling,Conditioning,Malting,Roasting
- Steps after
- Packing,Palletizing,Optical sorting,Sifting,grading,Filling,decorating,Sorting,drying
- Input ingredients
- animal feed,aqua feed,oilseed,grain,multifeed,brewery,pet food,premix and concentrates
- Output ingredients
- coarse grind,fine grind,processed feed,processed grain,processed pet food
- Market info
- Buhler is renowned for manufacturing advanced process solutions for food, feed, and advanced materials. They are highly regarded for their innovation in milling technology and equipment quality.
- Hammer speed
- High
- Grinding quality
- Excellent
- Screen clamping system
- Simple rapid
- Throughput increase
- More than 10%
- Flexibility
- Coarse and fine grinding
- Hammer tip speed
- Maximum contact
- Stationary hammer structure
- Optimal
- Configuration types
- Multiple
- Screen sizes
- Various
- Working mechanism
- Hammer mill
- Grinding flexibility
- Coarse and fine grinding
- Screen clamping system
- Rapid,tool-free
- Hammer bar locking
- User-friendly mechanism
- Automation level
- PLC/SCADA compatible
- Production flexibility
- Multiple configurations
- Throughput increase
- More than 10%
- Interlocked safety
- Rotor-door interlock
- Maintenance
- Minimal downtime
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Screen size
- Different size screens
- Hammer adjustment
- Adjustable to screen clearance
- Machine configuration
- Multiple configurations for coarse and fine grinding
- Grinding application
- Coarse and fine grinding
- Safety features
- Interlocked door with rotor
- Access type
- Fully-openable sliding doors
- Maintenance access
- Tool-free screen and hammer changes
