Industrial hammer mill for granulate grinding

Optimize the grinding process in feed production with a high-efficiency solution that reduces particle size to approximately 200 microns, ensuring uniformity in end products like poultry feed pellets and soybean meal.

Grinds and Mills Granules for Feed Production

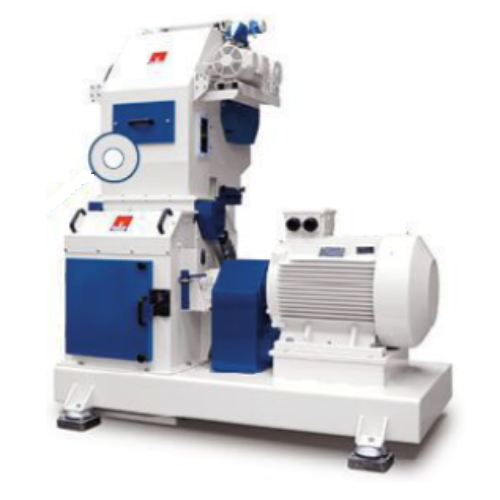

The Hammer Mills 650 Series from Ottevanger Milling Engineers is an expertly engineered solution for achieving precise granule size in feed manufacturing processes. This series features models like Type 650-375 and Type 650-550, renowned for their solid all-welded construction and anti-vibration design, ensuring seamless integration into feed and grain processing lines. The mills are capable of processing granule sizes up to 20 mm and reducing them to approximately 200 microns, meeting the needs of industries such as animal feed, pet food, and aquaculture feed production.

Equipped with a mechanically driven, fully enclosed vibrator feeder, the system ensures even feed distribution and is complemented by an automatic load control for continuous operations. The Type 650-550’s dual direction of rotation enhances its versatility, while an automatic self-cleaning magnet and stone trap improve efficiency and longevity. With options for ATEX 22 certified components, these hammer mills are designed to handle a variety of materials in a safe and energy-efficient manner, making them ideal for facilities focused on high yield and low energy consumption. Available configurations allow customization to meet specific processing needs, ensuring robust performance in demanding environments.

Benefits

  • Ensures consistent feed quality by achieving precise particle size reduction.
  • Increases processing efficiency with a dual-direction rotation and even feed distribution.
  • Minimizes energy usage through optimized motor control and load balancing.
  • Enhances safety and compliance with ATEX 22 certified options.
  • Lowers maintenance costs with easy access for parts replacement and automatic cleaning systems.

General


Applications
Handling,Pet food,Oilseed processing,Soybean processing,Aqua feed,Concentrates,Premix,Grain storage,Compound feed
End products
Sunflower oil,Animal feed concentrates,Grain transport systems,Dog kibble,Bulk grain silos,Soy flour,Rapeseed oil,Poultry feed pellets,Fish pellets,Soybean meal,Vitamin premix
Steps before
Product intake,Cleaning,Pre-cleaning,Dosing
Steps after
Sieving,Pelleting,Mixing,Conditioning,Drying,Cooling
Input ingredients
granulates,maize,barley
Output ingredients
ground product,particle size down to approx. 200 micron
Market info
Ottevanger Milling Engineers is renowned for designing and manufacturing innovative milling equipment and complete production lines for the grain processing industry, including feed mills, flour mills, and biomass processing, with a reputation for quality, efficiency, and customized solutions.

Technical Specifications


Capacity
2 - 12 tons per hour
Particle Size Reduction
Approx. 200 micron
Motor Power
30 - 90 kW
Screen Surface
0.54 - 2 x 0.37 m²
Rotation Type
Single,Dual Direction
Vibrator Feeder
Fully enclosed with permanent magnet
Automatic Self-cleaning Magnet
Included
Weight (Excl. Motor)
750 - 1175 kg
ATEX Certification
ATEX 22 certified components
Load Control
Automatic
Feeder Type
Drum type

Operating Characteristics


Working Mechanism
Grinding granulates
Flow Type
Batch
Automation level
Automatic load control
Vibration Control
Anti-vibration units
Direction of Rotation
Single and Dual
Feeding System
Mechanically driven feeder

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Material Size
Up to 20 mm diameter

Physical Characteristics


Construction type
Solid all-welded
Screen size
Up to 200 micron
Control panel type
Fully enclosed with permanent magnet
Discharge method
Automatic self-cleaning
Feed method
Mechanically driven feeder
Vibration control
Mounted on anti-vibration units

Custom Options


Control panel type
Manual / PLC
Direction of rotation
Single / Dual
Feeder type
Automatic / manual
Screen replacement system
Quick change
