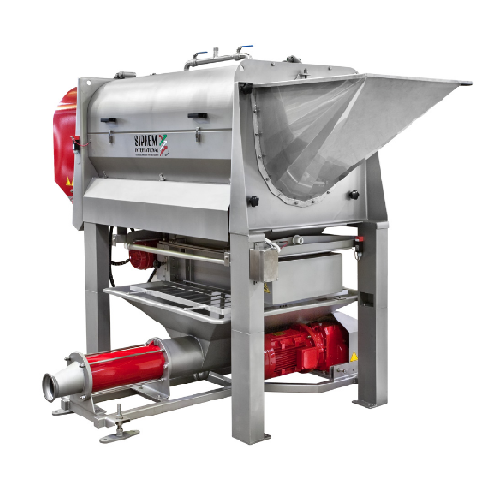

Industrial grape destemmer and crusher

Optimize your wine production with precise destemming and crushing, ensuring top quality grape must and juice ready for fermentation.

Processes and Crushes Grapes for Winemaking

Siprem International’s Alfa series destemmer-crushers provide an exceptional solution for wineries and vineyard operators who require efficient preprocessing. Made from durable AISI 304 stainless steel, these machines excel in destemming and crushing operations. The Alfa series offers models like the Alfa 7 through Alfa 100, catering to different capacities ranging from small batches to high-volume processing of up to 100 tons per hour. The unique design allows operators to bypass destemming or crushing as needed, offering flexibility in handling red and white wine grape processing to produce grape must and juice. The continuous speed variator enables precise control tailored to different grape characteristics, while robust construction ensures longevity and easy maintenance. With options for integration with existing systems, including suction and single screw pumps, the Alfa series supports seamless incorporation into your wine production line. Easy cleaning and maintenance are facilitated by removable components, ensuring minimal downtime and maintaining high operational standards.

Benefits

  • Increases productivity by processing up to 100 tons per hour with minimal operator intervention.
  • Enhances product quality by offering precise control over destemming and crushing processes.
  • Reduces maintenance time with easy-to-clean, removable components for quick upkeep.
  • Offers flexibility in production with adaptable bypass options, allowing for destemming or crushing as needed.
  • Integrates seamlessly into existing production lines, optimizing overall operational efficiency.

General


Applications
Grapes,Wine
End products
White wine,Grape must,Red wine,Grape juice
Steps before
Reception,Sorting,Cooling
Steps after
Pressing,Fermentation,Washing,Cleaning
Input ingredients
whole grapes,grapes,manually picked grapes,automatically picked grapes
Output ingredients
destemmed grapes,crushed grapes,whole grapes,conveyed grapes
Market info
Siprem International is known for manufacturing advanced winemaking equipment, specializing in complete systems for grape reception, processing, and fermentation. Their expertise in innovative technology and custom solutions has earned them a strong reputation in the wine industry.

Technical Specifications


Material
AISI 304 stainless steel
Capacity
7–100 tons/hour
Adjustability
External adjustment
Feed Method
Feed auger
Speed Control
Continuous speed variator
Output Capacity
7–100 tons/hour
Operating Flexibility
By-passing crushing stage
Cleaning and Maintenance
Easy removable components
Safety Features
Double side guard
Pump Compatibility
Suction,helical rotor,single screw
Operation Type
De-stalking only,crushing only,or combined
Transfer System
Horizontal transfer for de-stalking

Operating Characteristics


Batch vs. continuous operation
Batch / Inline Continuous
Automation level
Manual / PLC
Changeover time
Quick removal of components for cleaning
Cleaning method
Manual / CIP
Modular design
Easy access and cleaning of components
Integrated steps
De-stalking,crushing,or both
Versatility in application
Adaptable to different grape characteristics
Flexible processing modes
Possible to bypass stages

Material Compatibility


Abrasion resistance
AISI 304 Stainless Steel
Biological compatibility
Food-grade rubber
Cleanability
Easy cleaning and maintenance
Corrosive resistance (e.g.,acids)
AISI 304 Stainless Steel

Product type Characteristics


Material Handling
Grapes

Physical Characteristics


Material
Stainless Steel AISI 304
Capacity
Alfa 7/12/16/25
Alfa 30
Medium
Alfa 50/70
Large
Output Capacity
Alfa 30
Alfa 50
50 tons/hr
Alfa 70
55-70 tons/hr
Alfa 100
100 tons/hr
Feed Method
Auger
Discharge Method
Horizontal Transfer System
Adjustability
Beater and Cage Distance Adjustment
Design
Compact Structure

Custom Options


Material
Stainless Steel AISI 304
Operational Mode
Adjustable speed variator
Structural Design
Compact,Height adjustable
Cleaning and Maintenance
Removable transmission group and horizontal extraction
Functionality Mode
De-stalking only,Crushing only,or combined
