Industrial grain flaking solution

Enhance grain processing efficiency with precision-engineered flaking solutions, designed to optimize texture and quality across various production lines.

Processes and Flakes Grains and Oilseeds

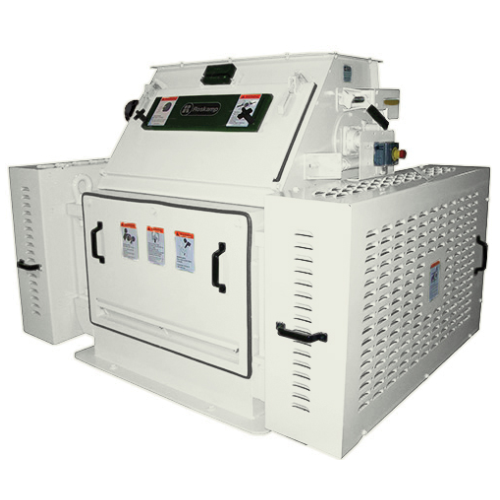

The FX Series, engineered by Roskamp under CPM, features industrial-grade flaking mills designed to optimize grain and oilseed processing. Equipped with indefinite chill cast rolls, these mills provide consistent flake quality necessary for producing soybean meal, cornflakes, and pet kibble. With self-aligning double-row spherical roller bearings and pneumatically operated feed gates, they ensure reliable performance and ease of maintenance. Capable of continuous, high-speed operation, the FX Series can handle substantial throughput, including configurations that support industrial applications like hemp flaking and DDGS processing. Fully customizable, these mills offer options like chilled iron rolls and hydraulic roll closures to suit specific production needs. Integration into existing production lines is seamless, thanks to features like a single-motor V-belt drive and PLC compatibility, ensuring streamlined operations while minimizing energy consumption.

Benefits

  • Enhances production efficiency with consistent flake quality, reducing rework.
  • Minimizes maintenance with durable engineering and self-aligning bearings.
  • Offers flexible processing options to adapt to diverse end-product requirements.
  • Integrates seamlessly into existing lines, improving operational flow.
  • Reduces energy consumption with efficient motor controls and optimized design.

General


Applications
Aquaculture,Animal feed,Ethanol,Rendered products,Pet food,Hemp,Oilseed products,Food products,Biomass
End products
Cornflakes,Rendered tallow,Breakfast cereals,Fish pellets,Hemp flakes,Pet kibble,Ddgs (dried distillers grains with solubles),Canola flakes,Soybean meal
Steps before
Steam Conditioning,Cleaning,Sorting
Steps after
Cooling,Briquetting,Packing
Input ingredients
small grains,oilseeds
Output ingredients
flaked grains,oilseed flakes
Market info
CPM is known for manufacturing high-quality process equipment and technology solutions for the industrial and agricultural sectors, specializing in particle size reduction, conditioning, and pelleting solutions with a strong reputation for reliability and innovation.

Technical Specifications


Roll Diameter
16",18",20",24"
Roll Material
Indefinite chill cast rolls
Roll Bearing Type
Self-aligning double-row spherical roller bearings
Roll Adjustment
One-point roll adjustment via machine jack screws
Drive Type
One-motor V-belt drive
Roll Speed Differential Ratios
Available for all applications
Feeder Type
Stainless steel pin feeder
Motor Platform
Industrial-duty adjustable,right- or left-side drive
Roll End Sealing
UHMW cheek plates to seal the roll ends
Optional Features
Chilled iron rolls,Roll feeder for oilseed applications,Heavy-duty permanent swingout magnets,Hydraulic roll closure
Capacity Range
Steam flaking small grains
Dimensions and Weight
Specified per model (e.g.,FX1600-30,FX2400-48)
Maximum Drive HP
40-100 HP,depending on model

Operating Characteristics


Working mechanism
Roll flaking
Automation level
Manual / PLC-controlled
Batch vs. continuous operation
Batch
Energy efficiency
Low operational cost
Changeover time
Fast adjustment using machine jack screws
CIP/SIP
Manual cleaning
Cleaning method
Manual

Material Compatibility


Abrasion resistance
High due to chill cast rolls
Cleanability
Stainless steel and UHMW components
Corrosive resistance (e.g. acids)
Stainless steel components increase resistance
Density/particle size
Suitable for small grains and oilseeds

Product type Characteristics


Primary Use
Steam flaking small grains
Optional Configuration
Oilseed flaking

Physical Characteristics


Machine footprint
Length
Roll diameter
16",18",20",24"
Bearing type
Self-aligning double-row spherical roller bearings
Roll housing
Split pillow block housings
Roll type
Indefinite chill cast rolls,chilled iron rolls (optional)
Roll adjustment method
One-point roll adjustment via machine jack screws
Drive type
One-motor V-belt drive
Feed method
Pneumatically operated feed gate
Machine height
54–66 in
Machine weight
7,600–21,000 lbs
Roll end sealing
UHMW cheek plates
Roll nip feeding
Flow directors

Custom Options


Roll diameter
16",18",20",or 24"
Roll configuration
Standard / Industrial / Oilseed
Feed gate operation
Pneumatically operated
Motor platform side
Right-side / Left-side
Flow configuration
"C" flow / "Z" flow
Optional roll material
Chilled iron
Additional features
Heavy-duty permanent swingout magnets / Hydraulic roll closure
