Industrial food dicer for high-fat and cold-temperature products
Achieve precise and consistent cutting with a high-capacity dicer designed for seamless integration into your food processing line, ensuring efficient handling of delicate to high-fat products across diverse food categories.
Processes and Cuts Cheese, Meat, and Produce

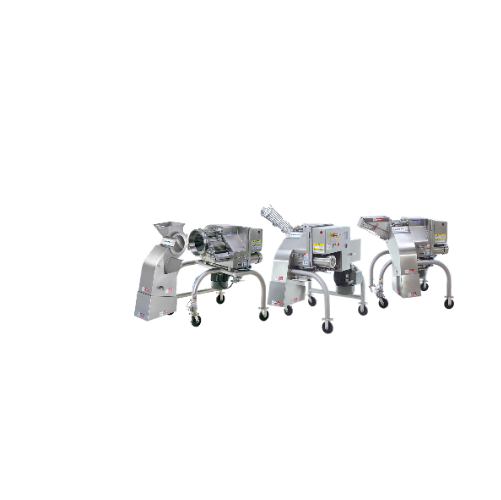

The Affinity® Dicer series from Urschel Laboratories offers precision cutting machines designed for challenging food processing tasks. Ideal for dairy, meat, and produce industries, these dicers excel in processing high-fat, cold-temperature, and difficult-to-handle products. Utilizing adjustable slicers and circular knives, they deliver precise 2- or 3-dimensional cuts, producing Swiss cheese cubes, ham dices, salami strips, and more, all while maintaining continuous, high-speed operation. Urschel’s dicers ensure superior sanitation with a design that separates the food and mechanical zones, featuring a rounded tube frame for effective washdowns, limiting microbial growth. With a capacity for products up to 10 inches and robust automation capabilities, including optional outboard bearing supports for heavy-duty applications, these machines integrate seamlessly into your production line. Crafted in stainless steel, they meet U.S.D.A. Dairy Division standards, making them ideal for facilities under rigorous inspection. Maintenance is straightforward with hinged panels for easy access, ensuring minimal downtime. Custom configurations are available to match specific production needs, supported by Urschel’s engineering expertise.
Benefits
- Maximizes processing capacity with high-speed, continuous operation.
- Ensures product consistency with precise 2- or 3-dimensional cutting options.
- Enhances sanitation and safety with food and mechanical zone separation.
- Facilitates compliance with U.S.D.A. standards for regulated facilities.
- Reduces maintenance time and costs with easy-access hinged panels.
- Applications
- Baked goods,Confectionery,Fruits,Cheese,Meat processing,Vegetables,Processed meats,Dairy
- End products
- Ham cubes,Processed meat logs,Cheddar cheese strips,Salami strips,Processed cheese strips,Pickle slices,Pot roast shreds,Carrot dice,Bacon dice,Tomato dice,Swiss cheese cubes,Feta crumbles,Cranberry strips,Bacon crumbles
- Steps before
- Precutting,Product In-feed Preparation
- Steps after
- Sterilization,Packing,Quality Inspection
- Input ingredients
- cheese,high-fat products,cold-temperature products,preformed meat logs,bacon,swiss cheese,salami,feta,cranberries,processed cheese,ham,pickles,pot roast,cheddar cheese,bread,tomato,carrot
- Output ingredients
- dices,crumbles,granulations,strips,slices,shreds
- Market info
- Urschel is known for its expertise in precision cutting technology and manufacturing industrial food processing equipment, especially cutting machines. It has a strong reputation for quality and innovation in delivering engineered-to-order solutions for the food processing industry.
- Length
- 60.33" (1533 mm)
- Width
- 62.52" (1588 mm)
- Height
- 69.64" (1769 mm)
- Net Weight
- 2800 lb (1270 kg)
- Motors
- 5 HP (3.6 kW) / 25 HP (18 kW)
- Infeed Size
- Up to 7" (178 mm) / up to 10" (254 mm)
- Cutting Capability
- 2- or 3-dimensional cutting
- Slice Thickness
- 1/8 to 3/4” (3.2 to 19.1 mm)
- Circular Knife Spindle
- 1/8 to 3” (3.2 to 76.2 mm)
- Crosscut Knife Spindle
- 1/8 to 2” (3.2 to 50.8 mm)
- Motor for Infeed Conveyor
- 1/6 HP (.12 kW)
- Sanitary Design
- Stainless steel,Ra 32 finish
- Hopper Size
- Large,accepts up to 10" in single dimension
- Operation
- Continuous
- Power Requirement
- 25 HP (18 kW) for maximum capacity
- Automation Level
- Manual / PLC
- Batch vs. Continuous Operation
- Continuous
- Sanitation Design
- Food zone separate from mechanical zone
- Cleaning Method
- Washdowns
- Maximum Infeed Product Size
- 7" (178 mm) / 10" (254 mm) with conveyor
- Adjustable Cutting
- 2D and 3D by adjusting spindles
- Cleanability
- Highly polished surfaces,sanitary design
- Corrosive resistance (e.g. acids)
- Stainless steel construction
- Density/particle size
- Various food products,including high-fat,cold-temperature items
- Machine Footprint (LxWxH)
- 60.33" x 62.52" x 69.64" (1533 mm x 1588 mm x 1769 mm)
- Machine Weight
- 2800 lb (1270 kg)
- Feed Method
- Conveyor-fed / Precutter / Direct In-feed
- Hopper In-feed Capacity
- Products up to 7" (178 mm),or up to 10" (254 mm)
- Construction Material
- Sanitary stainless steel
- Frame Design
- Rounded tube frame and angled surfaces
- Modular Configuration
- Multiple models available
- Pre-cutter Option
- Integrated pre-cutter
- Conveyor Feed Option
- Built-in conveyor
- Food Zone Separation
- Complete separation from mechanical zone
- Sanitation Design
- Rounded tube frame and angled surfaces
- Processing Ability
- High-fat and cold-temperature products
- Cutting Configuration
- 2- or 3-dimensional cutting
- Hinged Panels
- Ease of maintenance access
- Outboard Bearing Support
- Optional for heavy-duty applications
- Motor Power
- 25 HP (18 kW) motor
