Industrial fine dust particle ventilation filter
Optimize your production line with a modular filtration system designed to efficiently handle fine dust particles, ensuring cleaner air and improved product quality across continuous operations.
Filters and De-dusts Industrial Powders Continuously

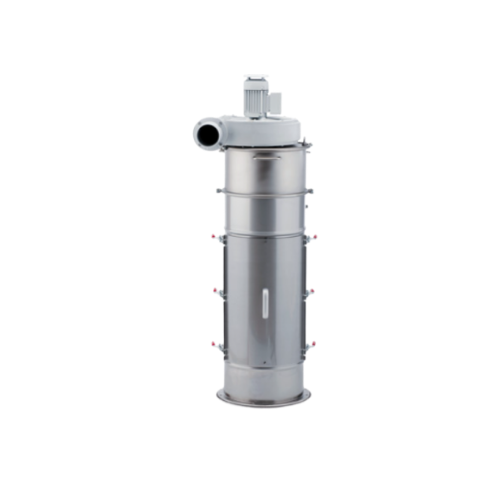

The JS Jet Filter ZSD from Zeppelin Systems is a robust solution for continuous dust filtration and de-dusting in plastic, rubber, food, and chemical industries. Featuring a modular design, this filter efficiently processes fine dust particles using an anti-static polyester needle felt bag, compliant with ATEX 2014/34/EU for Zone 22 areas. It operates with compressed air up to 6 bar, powered by integrated diaphragm valves and a 24 V DC controller, optimizing energy efficiency and reducing maintenance. With a stainless steel base and easily replaceable filter elements, the JS Jet Filter ZSD offers durability and ease of maintenance, making it ideal for handling powders such as rubber granules, cornmeal, and powdered cocoa while maintaining stringent safety and environmental standards.
Benefits
- Enhances workplace safety with effective fine dust particle filtration.
- Minimizes operational interruptions through easy filter element replacement.
- Complies with stringent ATEX standards for explosive environments.
- Optimizes energy use with integrated pressure regulation and diaphragm valves.
- Facilitates effortless integration into existing production lines with a modular system design.
- Applications
- Dispersion paints,Food industry,Plastics,Rubber and tire industry
- End products
- Tire tread compounds,Latex paints,Cake mix powders,Wheat flour,Cornmeal,Powdered cocoa,Acrylic emulsions,Rubber granules,Polypropylene pellets
- Steps before
- Conveying,Mixing,Compounding
- Steps after
- De-dusting,Packaging,Storage
- Input ingredients
- conveying air,fine dust particles
- Output ingredients
- filtered air,collected dust
- Market info
- Zeppelin Systems excels in designing and manufacturing high-quality bulk material handling and processing equipment. Renowned for its engineering expertise, the company serves industries including plastics, chemicals, and food, ensuring efficient, reliable, and innovative solutions tailored to customer needs.
- Operating Pressure
- 0 bar to +0.1 bar (g)
- Temperature Range
- -20 to +60°C
- Filter Type
- Bin vent filter with anti-static bag filter
- Filter Material
- Anti-static polyester needle felt
- De-dusting Mechanism
- With purified,de-oiled air compressed up to 6 bar
- Controller
- Integrated 24 V DC magnetic pilot valves
- Design Compliance
- ATEX 2014/34/EU for Zone 22 areas
- Container Connector
- Flange design
- Filter Housing Material
- Stainless steel (1.4301)
- Compressed Air Pressure
- up to 6 bar
- Automation level
- Manual / PLC / SCADA
- Batch vs. continuous operation
- Batch / Inline Continuous
- Cleaning method
- CIP / Manual
- Energy efficiency
- 0.5–2 kWh/kg moisture
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- ATEX certification
- 2014/34/EU for Zone 22 areas
- Filter housing material
- Stainless steel (1.4301)
- Base plate material
- Stainless steel (1.4301)
- Filter head design
- Removable
- Installation type
- Modular system
- Connector type
- Flange design
- Dust class
- M (DIN EN 60335-2-69)
- Filter element type
- Anti-static polyester needle felt
- Filter replacement method
- From underneath
- Operating pressure range
- 0 bar to +0.1 bar (g)
- Temperature range
- -20 to +60°C
- Control panel type
- HMI / PLC
- Integration possibilities
- SCADA / PLC / Automation systems
- Discharge method
- Automatic de-dusting
- Compressed air maintenance unit
- With separator
- Weatherproofing options
- Weatherproof hood
- Fan options
- Fan on filter head
