Industrial diverter valve for pneumatic conveying systems

Optimize your pneumatic conveying system with a versatile two- or three-way diverter valve designed for precise distribution and collection, ensuring seamless material flow of powders and pellets.

Distributes and Collects Powders and Pellets

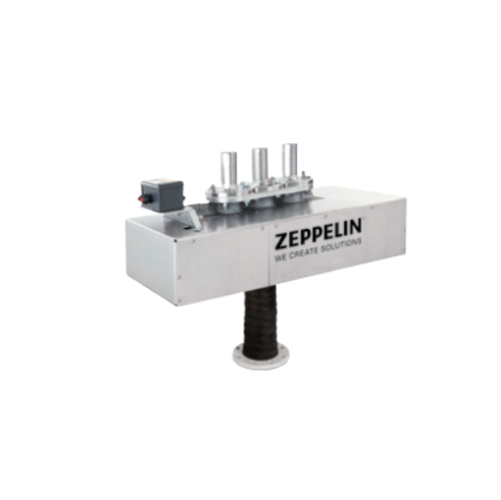

The ZWS/DWS valve from Zeppelin Systems is a two-/three-way hose-type diverter tailored for pneumatic conveying systems, effectively addressing the distribution and collection challenges of powders and pellets in diverse industrial settings. Its auto-tight seal ensures pressure integrity up to 4.0 bar (g), making it suitable for various operational requirements. Available in nine sizes, it integrates seamlessly with continuous electro-pneumatic operations, requiring minimal maintenance over an extensive lifetime. Featuring a cast aluminum housing and PTFE-lined slide plate, this valve ensures durability, while the stainless steel components in contact with bulk materials provide robust performance and corrosion resistance. It accommodates a temperature range of -10 to +80°C and offers an array of options, including highly anti-abrasive distributor hoses and high-temperature versions, catering to specific application needs. Compliance is reinforced through installation declarations and ATEX certification, guaranteeing operational safety across chemical, plastics, rubber, and food sectors.

Benefits

  • Ensures reliable material flow control, minimizing production interruptions.
  • Reduces maintenance costs due to its maintenance-free, durable design.
  • Enhances operational efficiency with quick, seamless integration into existing systems.
  • Offers flexibility with customizable options for specific industry needs.
  • Guarantees safety and compliance with ATEX certification for hazardous environments.

General


Applications
Pellets,Powders
End products
Steps before
Grinding,Drying,Emulsification
Steps after
Distribution,Packing,Weighing
Input ingredients
powders,pellets
Output ingredients
distributed materials,collected materials
Market info
Zeppelin Systems excels in designing and manufacturing high-quality bulk material handling and processing equipment. Renowned for its engineering expertise, the company serves industries including plastics, chemicals, and food, ensuring efficient, reliable, and innovative solutions tailored to customer needs.

Technical Specifications


Valve Type
Two-way/Three-way Hose-Type Diverter Valve
Material Handling
Powders and Pellets
Pressure Rating
Up to 4.0 bar (g)
Size Range
50-225
Sealing Type
Auto-tight Seal
Hose Pressure Rating
Standard up to 0.8 bar (g),Special up to 4.0 bar (g)
Temperature Range
-10 to +80°C
Material
Cast Aluminium,Stainless Steel
Coating
Hard Coated,PTFE Lined
Maintenance
Maintenance-free
Assembly
Electro-pneumatic,Fully Assembled and Wired
Options
Highly Anti-abrasive Distributor Hose,Metal Hosing,High Temperature Version

Operating Characteristics


Working mechanism
Two-/Three-way diverter valve
Pressure rating
Up to 4 bar (g)
Automation level
Electro-pneumatic,fully assembled and wired
Temperature range
-10 to +80°C
Changeover time
Quick switch between flow paths
Seal type
Auto-tight seal
Maintenance
Maintenance-free
Distribution or collection capability
Powders and pellets
Protection
Includes protection hood

Material Compatibility


Abrasion resistance
Highly abrasive resistant hoses available
Corrosive resistance (e.g. acids)
Stainless steel parts in contact with bulk material
Temperature range
-10 to +80°C
Pressure resistance
Up to 4.0 bar (g)
Dust and powder compatibility
Smooth surfaces with PTFE lining
Density/particle size
Handles powders and pellets of varying sizes


ATEX certification
Available
EC type examination certificate
Available
Declaration of conformity
Available

Physical Characteristics


Size availability
Available in nine sizes (50-225)
Seal type
Auto-tight seal
Pressure tightness
Up to 4.0 bar (g)
Maintenance
Maintenance-free
Equipment Assembly
Electro-pneumatic equipment fully assembled and wired
Material
Housing and slide plate made of cast aluminium
Material Coating
Slide plate is hard coated and PTFE lined
Contact Material
Parts in contact with bulk material are stainless steel
Temperature Range
-10 to +80°C

Custom Options


Customizable Sizes
Available in nine sizes (50-225)
Seal Type
Auto-tight seal,pressure tight
Temperature Range
-10 to +80°C
Hosing Options
Standard hose up to 0.8 bar (g),special hose up to 4.0 bar (g)
Materials in Contact
Stainless steel
Special Options
Highly anti-abrasive distributor hose,Metal hosing,High temperature version
