Industrial coffee extraction system for high yields

Maximize coffee yield and quality with precision-controlled extraction systems designed to handle diverse coffee varieties, optimizing your production line’s efficiency while maintaining the aroma and taste integrity of every bean.

Extracts and Refines Coffee Aroma and Flavor

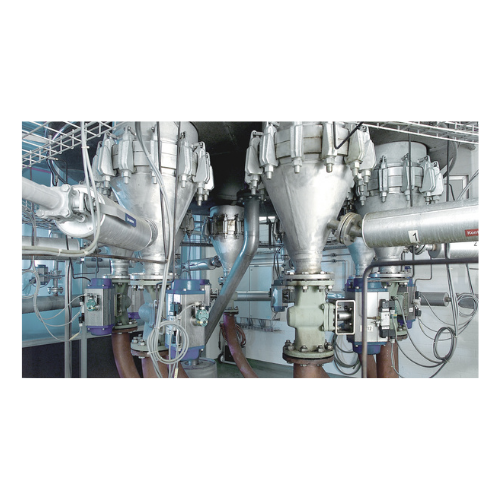

The FIC® and CARINE Extractors from GEA are advanced solutions tailored for the coffee processing industry, designed to enhance the efficiency and quality of coffee aroma and flavor extraction. The FIC® extractor utilizes a rapid, turbulent water flow technique to boost extraction rates, supported by its continuous operation with eight percolator vessels allowing flexible processing modes that can handle various coffee types with capacities ranging from 125 to 1500 kg/h. In contrast, the CARINE extractor operates with ten percolator columns at elevated temperatures of 185–195 °C, optimizing yield up to 60% with its high-temperature hydrolysis process. Both extractors feature integrated PC/PLC systems for seamless automation and offer optional modes for maximizing yield or quality. Engineered from materials ensuring long-lasting performance, these extractors integrate effortlessly within your production line, supporting applications for both liquid and granule end-products like Arabica and Robusta instant coffees, freeze-dried coffee, and concentrated coffee extracts. Whether for large-scale or pilot-scale operations, the FIC® and CARINE provide exceptional versatility, supported by GEA’s extensive engineering support and customization options.

Benefits

  • Maximizes yield and quality with adaptable extraction modes tailored to specific coffee types.
  • Enhances operational efficiency with fully automated, continuous processing and integrated PC/PLC controls.
  • Achieves up to 60% yield, reducing raw material costs through optimized high-temperature extraction.
  • Maintains product integrity by preventing flavor degradation with precise cooling and heating steps.
  • Offers flexibility for both pilot-scale and large-scale production, accommodating diverse industry needs.

General


Applications
Extracts,Instant coffee,Coffee,Beverage
End products
Ready-to-drink coffee beverages,Coffee aroma extracts,Soluble coffee crystals,Robusta instant coffee,Powdered coffee extract,Arabica instant coffee,Freeze-dried coffee,Coffee concentrate
Steps before
Roasting,Grinding
Steps after
Cooling,Aroma Capture,Packaging
Input ingredients
coffee beans
Output ingredients
coffee extract,aroma extract
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Process capacities
125–1500 kg/h
Extraction temperature
140–195°C
Yield
Up to 60%
Automation
Fully automated,PLC-controlled
Number of percolator vessels
8 (FIC®) / 10 (CARINE)
Operating modes
Multiple,including FIC® mode
Extraction rate
50% faster than conventional methods (FIC®)

Operating Characteristics


Automation level
Fully automated,PLC-controlled
Flow type
Continuous
Modes of operation
Three modes (including FIC® mode)
Extraction temperature
CARINE
FIC®
Desired temperature
Extraction type
Enhanced extraction rate (FIC®),High yield (CARINE)
Yield range
FIC®
CARINE
Up to 60%
Component design
High manufacturing standards
Plant type availability
Full- and pilot-scale
Process capacity
125–1500 kg/h

Material Compatibility


Cleanability
Easy to clean design
Corrosive resistance (e.g. acids)
High-grade stainless steel
Density/particle size
Suitable for coffee particles

Physical Characteristics


Compact footprint
Yes
Control panel type
Integrated PC/PLC system
Discharge method
Automated
Tank size
Varies with process capacities
Basket shape
Percolator vessels in flowing battery design

Custom Options


Control panel type
PC/PLC (Programmable Logic Controller)
