Industrial coating drum for breakfast cereals
Optimize your cereal production with a coating drum designed to enhance product coating precision while minimizing maintenance and operational complexity, ensuring consistent results for high-quality breakfast cereals and snacks.

Applies Uniform Coating to Cereal and Snack Products

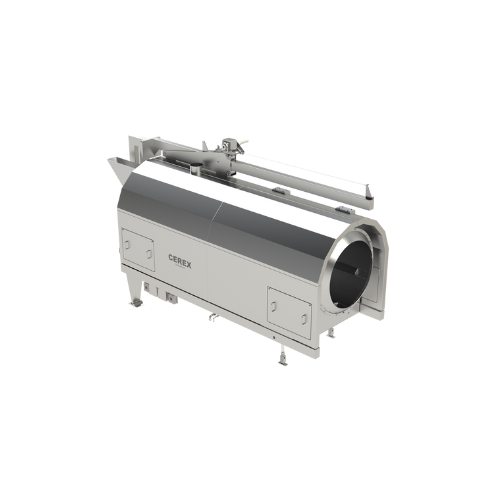

The Coating Drum from CEREX AG is engineered to enhance your cereal and snack production line with a focus on precision and efficiency. Featuring a diameter of 1200 mm, it allows for flexible coating of various products, including cornflakes, chocolate-coated nuts, and granola clusters. The drum is insulated to prevent heat loss, eliminating the need for additional drum heating. Its design focuses on minimal abrasion and uniform slurry application via specially designed adaptable spraying nozzles, supporting easy integration into continuous operations. The heated blocks with internal piping and individually controlled nozzle diameters enable precise control over slurry application. Constructed with modular components, this drum ensures quick maintenance and cleaning, making it ideal for operations in food processing environments.
Benefits
- Ensures uniform coating and prevents product shrinkage, optimizing product quality.
- Reduces energy costs through efficient heat retention without additional drum heating.
- Minimizes maintenance time with modular design and easy access for cleaning.
- Enhances production flexibility, handling diverse cereal and snack products seamlessly.
- Offers precise slurry control, leading to consistent output and reduced material waste.
- Applications
- Snacks,Puffed products,Cereals,Nuts,Coated products,Bars,Granola,Seeds,Breakfast cereals
- End products
- Muesli base flakes,Sesame-coated seeds,Frosted cereals,Cornflakes,Caramel-coated puffed rice,Sugar-coated breakfast puffs,Yogurt-covered snack bars,Honey-coated oats,Almond granola clusters,Chocolate-coated nuts
- Steps before
- Flaking,Puffing,Granola production
- Steps after
- Drying,Packing,Coating
- Input ingredients
- raw grain products,puffed products,crispies,cereals,seeds,nuts,granola
- Output ingredients
- coated products,cereals,granola bars,muesli
- Market info
- CEREX is known for specializing in the production of engineered-to-order (ETO) equipment, providing customized industrial solutions with a strong emphasis on innovation, quality, and customer satisfaction in niche market segments.
- Drum Diameter
- 1200 mm
- Operation
- Easy operation
- Maintenance
- Quick and easy maintenance
- Efficiency
- High efficiency
- Abrasion Minimization
- Minimizes abrasion
- Sugar Coating Suitability
- Suitable for low sugar coating
- Nozzle Design
- Adaptable spraying nozzles
- Nozzle Control
- Control panel selection
- Heating Requirement
- No additional drum heating necessary
- Insulation
- Insulated cover
- Working mechanism
- Spray coating with adaptable spraying nozzles
- Automation level
- Control panel with individual nozzle selection
- Batch vs. continuous operation
- Batch
- Changeover time
- Quick and easy maintenance
- Cleaning method
- Easy to clean
- Energy efficiency
- No additional drum heating necessary
- Abrasion resistance
- Optimized for minimal abrasion
- Cleanability
- Easy to clean
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Drum Diameter
- 1200 mm
- Insulated Cover
- Yes,provides protection from heat loss
- Spraying Nozzles
- Adaptable,ensures control over slurry addition
- Modular Design
- Configurable heating blocks and nozzles
- Control Panel
- Individual nozzle selection
- Maintenance
- Quick and easy
- Operation
- Easy
- Smooth Operation
- Ensured
- Heated Nozzles
- Yes,with internal piping
- Nozzle Configuration
- Individual diameters and angles
- Cleaning
- Easy to clean
- Nozzle Configuration
- Adaptable spraying nozzles
- Nozzle Selection
- Individual nozzle selection via control panel
- Modular Design
- Modular and configurable blocks
