Industrial checkweighers for medium-large products

Manage large and heavy packagings with precision and efficiency, ensuring accurate weight compliance and reducing product giveaways in high-speed production environments.

Controls and Verifies Product Weights

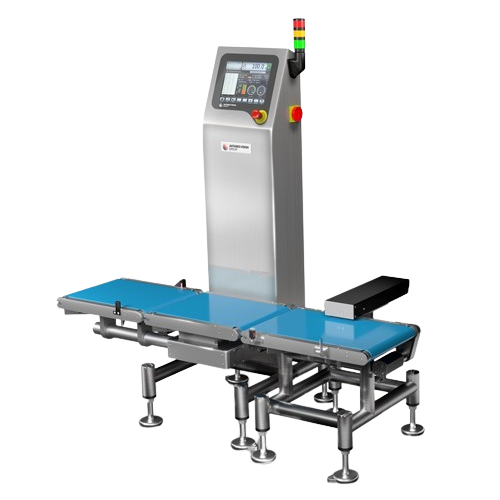

The BR 6000 and BR 12000 from Antares Vision Group are expertly engineered checkweighers designed to maintain precision in dynamic industrial weighing. Using brushless motors and planetary gearboxes, these systems effectively manage the weight control of medium-large products like boxes and bags in high-speed operations. Their robust design in stainless steel and treated aluminum ensures durability and integration into challenging industrial environments. With a throughput of up to 75 ppm, the checkweighers facilitate seamless inspection across food, beverage, and cosmetics industries.

Equipped with a 12-inch touchscreen interface, they offer intuitive operation for line personnel, simplifying total system management and allowing for the storage of 254 product recipes. Compliance with rigorous standards such as MID, CE, and HACCP ensures quality and regulatory adherence, while Industry 4.0 compatibility provides easy interconnection and remote support. The hygienic design, featuring quick-removal conveyor belts, streamlines maintenance and sanitation, optimizing uptime and operational efficiency. Customizable configurations provide flexibility for future adaptation to different product formats.

Benefits

  • Ensures compliance with weight regulations, safeguarding against costly penalties.
  • Increases production efficiency by inspecting 100% of output with high accuracy.
  • Minimizes product waste and reduces material costs.
  • Streamlines operations with user-friendly interface and remote access for quick troubleshooting.
  • Adapts to diverse product types and sizes, offering long-term flexibility.

General


Applications
Food,Medium-large products,Boxes,Rigid containers,Beverage,Primary packings,Cosmetics,Secondary packings,Bags
End products
Lotion bottles,Glass jars,Rice sacks,Juice cartons,Canned soup,Bottled water,Shampoo tubes,Flour bags,Pasta boxes,Shrink-wrapped pallets,Perfume bottles,Carbonated drinks,Plastic jugs,Ready-to-eat meals,Cereal boxes,Cardboard boxes
Steps before
Filling,Primary Packaging,Secondary Packaging
Steps after
Packing,Logistics,Distribution
Input ingredients
medium-large format products,bags,boxes,primary and secondary packages
Output ingredients
checked products,verified weight products,complete packages
Market info
Antares Vision is renowned for providing inspection, track and trace, and quality control systems primarily to the pharmaceutical, food, and beverage industries, ensuring product integrity and supply chain transparency.

Technical Specifications


Control Panel
Colour touchscreen 12”
Data Processing Electronics
RISC Embedded FPGA
Self-learning System and Calibration
Included
Data Collection Software
Included through Ethernet and USB
Kit for Remote Assistance
Included
Compliance Industry 4.0
with Bidirectional Protocol
Linear Speed
up to 40m/min
Production
up to 75 ppm
Weight Range
up to 12000 g
Display Division
starting from 1 g
Protection Degree
IP65

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Inline Continuous
Cleaning method
Manual
Energy efficiency
High Productivity
Integration capability
Industry 4.0 Compliance
Modularity
Adjustable for different formats
Remote assistance
Included

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container type
Bags / Boxes

Physical Characteristics


Conveyor width
240-320-350 mm,350 mm
Control panel type
Touchscreen 12” panel
Main support structure material
Stainless steel AISI 304
Movement modules material
Anodized aluminium treated in hard nickel
Weight Range
up to 12000 g
Protection Degree
IP65
Modularity
Modular components for flexibility
Discharge method
Rollers with transmission without pulleys

Custom Options


Control panel type
Touchscreen 12” panel
Integration possibilities
Data Collection Software through Ethernet and USB,Industry 4.0 Compliance
Modularity of components
Flexible solution for different product formats
Remote assistance management
Included
