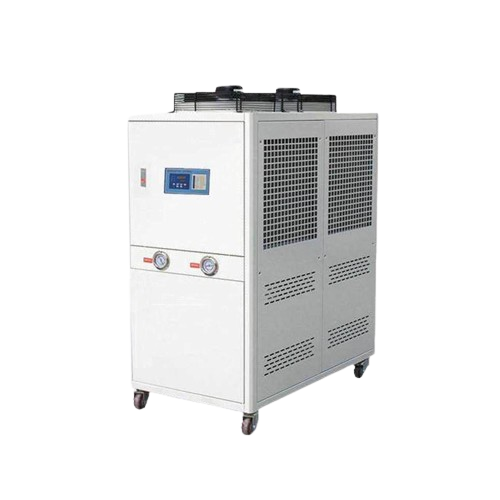

Industrial air cooled chiller for carbonated beverages

Optimize your beverage production with precise temperature control using our air cooled chiller, ensuring consistent quality in carbonated drinks and brewing operations.

Cools and Controls Temperature for Liquid Processing

The Industrial Air Cooled Chiller Model LS10HP from Alps Machinery provides reliable cooling solutions for the food and beverage industry. Featuring a scroll hermetic compressor and efficient axial condensers, this chiller ensures stable operations and precise temperature management. It excels in applications ranging from carbonated beverages to bottled water, maintaining optimal conditions for product quality throughout continuous industrial processes. With a capacity ranging between 1,000 and 50,000 liters per hour, it integrates seamlessly into existing production lines, offering advanced protections like high and low pressure and anti-freezing safeguards. Constructed with industrial-grade materials, the chiller is durable and equipped with a stainless steel water tank, ensuring longevity and corrosion resistance. Its centrifugal water pump enhances efficiency, while the energy-efficient design minimizes operational costs. The LS10HP ensures consistent performance, making it an essential component for high-quality beverage production.

Benefits

  • Enhances product quality by providing precise and stable temperature control.
  • Minimizes operational costs with energy-efficient design and components.
  • Extends equipment lifespan and reduces maintenance needs with robust, corrosion-resistant construction.
  • Facilitates seamless integration into existing production lines, enhancing operational flow.
  • Ensures operational safety through comprehensive protection systems, reducing risk of equipment failure.

General


Applications
Carbonated beverages,Mineral water,Beer brewing,Canned drinks,Juice,Edible oil
End products
Soda,Olive oil,Bottled water,Lager beer,Sparkling water,Canned soft drinks,Fruit juice
Steps before
Water treatment,Beverage preparation,Carbon dioxide infusion,Juice mixing
Steps after
Carbonated beverage filling,Beer brewing,Bottle blowing,Labeling,Packing
Input ingredients
water,air
Output ingredients
chilled water
Market info
Alps Machine is known for specializing in the design and manufacturing of industrial engineered-to-order equipment, providing innovative solutions and reliable machinery tailored to the specific needs of industries like beverage and packaging.

Technical Specifications


Cooling Capacity
14.4 - 104 kW
Nominal Cooling Capacity
14.4 - 104 kW
Machine Power
4.7 - 43.8 kW
Machine Operating Current
9.2 - 78.1 A
Compressor Type
Scroll Hermetic Compressor
Compressor Quantity
1 - 4
Refrigeration Input Power
4.0 - 36.4 kW
Rated Current
7.7 - 64.5 A
Evaporator Type
Pipe dry high efficiency heat exchanger
Flow Rate
417 - 2381 L/min
Condenser Type
Efficiency copper pipe and aluminum foil wing heat exchanger
Quantity of Fans
1 - 8
Fan Power
0.2 - 4.4 kW
Chilled Water Pump Type
High efficiency,low noise centrifugal water pump
Pump Input Power
0.55 - 3.00 kW
Head
22 - 25 mH2O
Nominal Tank Volume
80 - 370 L
Overall Dimensions - Length
1050 - 3100 mm
Overall Dimensions - Width
700 - 1500 mm
Overall Dimensions - Height
1090 - 2100 mm
Machine Weight
180 - 1550 kg
Operating Weight
260 - 1920 kg
Cooling Temperature
7°C
Capacity
1000 - 50000 Liter Per Hour

Operating Characteristics


Working mechanism
Semi-hermetic screw compressor
Integrated steps
Suction filter,oil filter,oil separators
Noise
Low noise operation
Stability
Stable operation
Automation level
Built-in protection module
Protection
High and low pressure protection,air discharge protection
Operation temperature
7℃ air-cooled
Leakage
No leakage

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless steel components

Product type Characteristics


Application environment
Carbonated beverage / Beer brewing system
System compatibility
Beverage preparation systems

Physical Characteristics


Tank volume
80 L to 370 L
Weight
180 kg to 1550 kg
