In-line leakage detection for sealed water bottles

Ensure the integrity of your bottled beverage products with reliable in-line leakage detection through precise pressure measurement, preventing potential issues with product quality and packaging efficiency.

Detects Leaks and Measures Pressure

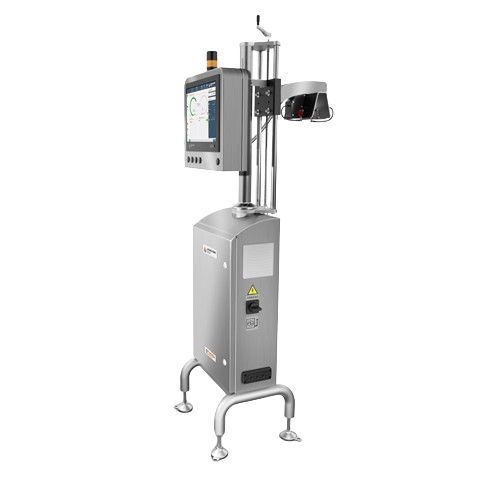

The PCS WATER from Antares Vision Group is an advanced in-line solution for detecting leaks and measuring pressure in bottled drinks through laser spectroscopy. Designed for high-speed beverage and packaging operations, it precisely monitors headspace pressure in bottles to ensure sealing integrity and correct pressure levels, vital for maintaining product quality.

Utilizing molecular absorption at specific wavelengths, PCS WATER offers a rapid, reliable, and contactless inspection method, adaptable to various bottle types and cap configurations. Installed post-bottling, it detects discrepancies in nitrogen-induced pressure, signaling potential leaks or dosage issues, thus preventing deformation and waste.

Typically applied in beverage industries, it is suitable for still, flavored, and sparkling water, as well as vitamin waters and bottled soft drinks. PCS WATER integrates seamlessly into production lines, providing real-time analysis and trend detection that facilitate maintenance of high product standards.

With a compact, washable design, PCS WATER supports easy setup and format changes within 5 minutes, minimizing downtime. Its ability to distinguish between liquid and gas leaks, monitor capper efficiency, and optimize nitrogen dosage enhances sustainability by reducing false rejects and material waste.

Benefits

  • Enhances product quality by detecting leaks and pressure deviations early, preventing costly recalls.
  • Reduces waste by optimizing nitrogen dosage and minimizing false rejects.
  • Improves line efficiency with rapid, non-destructive inspection at high speeds.
  • Lowers maintenance needs with a contactless, durable design.
  • Facilitates precise troubleshooting by identifying specific production issues in real-time.

General


Applications
Still water,Beverage,Bottle water,Bottled drinks
End products
Spring water bottles,Distilled water bottles,Sparkling water bottles,Mineral water bottles,Bottled fruit juice,Bottled soft drinks,Purified water bottles,Alkaline water bottles,Flavored still water bottles,Bottled iced tea,Vitamin water bottles
Steps before
Bottling,Capping,Nitrogen Dosing
Steps after
Leak Detection,Inspection,Rejection of Defective Bottles
Input ingredients
sealed water bottle,nitrogen,nitrogen doser,bottle with cap
Output ingredients
leakage-free water bottle,non-defective bottled water,flagged defective bottles
Market info
Antares Vision is renowned for providing inspection, track and trace, and quality control systems primarily to the pharmaceutical, food, and beverage industries, ensuring product integrity and supply chain transparency.

Technical Specifications


Measurement Speed
At line speed
Measurement Type
Contactless
Setup Time for New Format
5 minutes
User Interface
User-friendly
Real-time Analysis
Yes
Calibration
Configured for specific gas detection
Inspection Method
Laser spectroscopy
Automation Level
Fully automated
Material Compatibility
Any bottle material
Cap Compatibility
Any cap type

Operating Characteristics


Working Mechanism
Laser Spectroscopy
Inspection Type
Contactless
Inline Flow
Post-bottling Phase
Batch vs. Continuous Operation
Continuous Inline
Automation Level
Real-time Analysis
Changeover Time
5 minutes
Cleaning Method
Hygienic Design,Washable Structure
Energy Efficiency
High accuracy,reducing rejects

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Gas detection in headspace
Nitrogen (N2)

Physical Characteristics


Compact design
Yes
Hygienic design
Yes
Washable structure
Yes
Contactless inspection
Yes
Machine installation location
After bottling phase

Custom Options


Control panel type
User-friendly interface
Compact design
Hygienic,washable structure
