Icebox cookies extrusion solution

Streamline your cookie production with a solution that efficiently extrudes, shapes, refrigerates, and slices icebox cookie dough, perfecting each cookie with precision and consistency.

Extrudes and Shapes Dough for Icebox Cookies

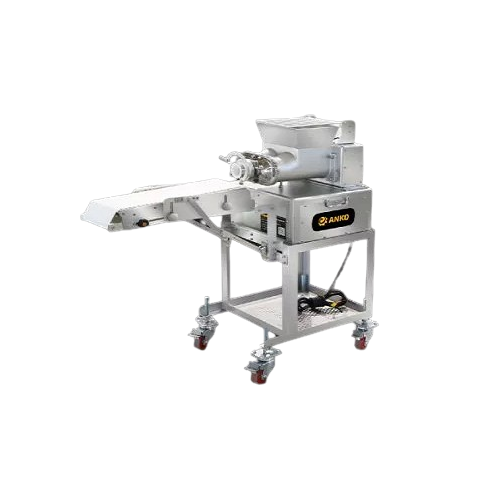

The SK-60S Icebox Cookies Extruder from ANKO streamlines the complex process of producing perfectly shaped icebox cookies for industrial food manufacturers. This machine stands out with its ability to extrude and shape dough into consistent bars, ideal for uniform slicing post-refrigeration. Catering to food production, confectionery, and bakery industries, it efficiently handles various end-products including heart-shaped and assorted cookies, biscotti, and oatmeal cookies. With a processing capacity of 400 to 4,000 grams per minute, the SK-60S supports high-speed continuous operations. It seamlessly integrates into existing lines with automated features and customized molds to suit specific product designs. Compact and efficient, the SK-60S requires minimal maintenance, supporting large-scale output with reduced labor requirements.

Benefits

  • Enhances production efficiency by automating the dough shaping and extruding process.
  • Supports diverse product customization with interchangeable molds.
  • Reduces manual labor and associated costs with high-speed continuous operations.
  • Maintains quality with precise dough consistency for uniform slicing.
  • Integrates easily into existing production lines, minimizing setup time.

General


Applications
Cookies,Biscuits,Snacks,Confectionery,Sweets
End products
Round cookies,Heart-shaped cookies,Oatmeal cookies,Icebox cookies,Assorted cookies,Biscotti
Steps before
Dough Preparation,Dough Shaping,Refrigerating
Steps after
Refrigerating,Slicing,Packing
Input ingredients
cookie dough
Output ingredients
icebox cookies,heart-shaped cookies,assorted cookies,round cookies,biscotti,biscuits,oatmeal cookies
Market info

Technical Specifications


Dimensions
1,080 (L) x 450 (W) x 1,080 (H) mm
Power
0.4 kW
Capacity
400–4,000 g/min
Diameter of shaping mold
Max. 60 mm
Weight (net)
100 kg
Weight (gross)
140 kg

Operating Characteristics


Automation level
PLC controlled
Batch vs. continuous operation
Batch
Cleaning method
Manual / CIP
Energy efficiency
Low kWh/kg

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Heat sensitivity
Medium to high
Shape reproducibility
High precision

Physical Characteristics


Dimensions
1,080 (L) x 450 (W) x 1,080 (H) mm
Weight (net)
100 kg
Weight (gross)
140 kg
Control Panel Type
Customizable
Mold Diameter
max. 60 mm
Discharge method
Extrusion

Custom Options


Mold customization
Available
Control panel type
PLC-controlled
Integration possibilities
IoT Applications
Shape customization
Cylindrical,Heart-shaped
Recipe optimization
Available
