Ice cream transfer and dipping solution

For ice cream manufacturers looking to maximize production efficiency, this solution offers rapid, precise dipping and transfer capabilities to handle diverse product lines, from chocolate-dipped bars to mini bites, ensuring consistent quality and reduced waste in high-speed operations.

Transfers and Dips Ice Cream Products

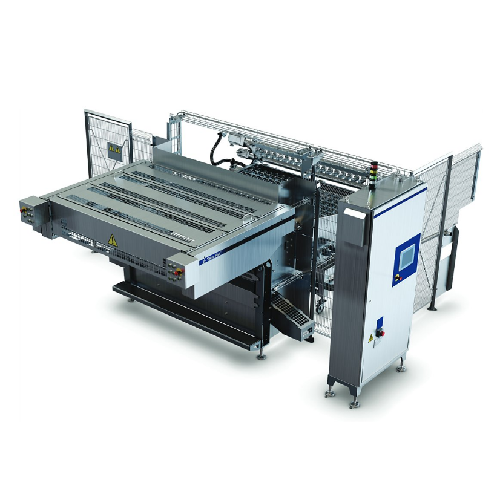

The Tetra Pak® Dip and Transfer Unit 1800 M2 is a versatile equipment designed to enhance your ice cream production line. Ideal for ice cream manufacturers and food processing companies, this unit seamlessly integrates with the Tetra Pak® Extrusion Tunnel M3. It excels in transferring and dipping products like ice cream sticks, sandwiches, slices, candy bars, and cones, handling up to 24,000 products per hour.

This equipment features a unique gripper head system with overlapping profiles, ensuring minimal product waste and precise handling, even when positioning is slightly off. The chocolate tank with a controlled dipping system ensures consistent coating with minimal giveaway, enhancing cost efficiency. The unit’s adaptable design allows for future expansion with additional modules and supports a wide range of product types, including mini-bites and multipacks, thanks to the dual-section coating tank.

Automation is achieved through a PLC-controlled recipe handling system, promising accuracy and repeatability in dipping parameters. Maintenance is simplified with tool-free dismantling, reducing downtime and ensuring easy cleaning. Constructed with robust materials for durability in continuous operations, this unit also enhances food safety with a servo-driven, contact-free lay down system. Customization options and engineering support are available to meet specific operational needs.

Benefits

  • Maximizes production efficiency with a capacity of up to 24,000 products per hour.
  • Minimizes product waste through precise overlapping gripper technology.
  • Ensures cost-effective coating application with controlled dipping and minimal giveaway.
  • Facilitates rapid product changeovers, reducing downtime to just one minute.
  • Enhances food safety with a hands-free, servo-driven lay down system.

General


Applications
Wafer cups,Ice cream sticks,Ice cream slices,Ball top cones,Candy bars,Bite-sized treats,Ice cream sandwiches
End products
Chocolate-dipped ice cream bars,Mini ice cream bites with almond slivers,Strawberry ice cream slices with nut topping,Vanilla ice cream sandwiches with chocolate coating,Vanilla wafer cups with sprinkle topping,Ball top waffle cones with chocolate drizzle,Chocolate-coated nougat candy bars
Steps before
Extrusion,Product Forming,Tray Loading
Steps after
Wrapping,Cold Storage,Packing
Input ingredients
ice cream base,chocolate coating,dry ingredients (e.g. rice puffs,nuts,almond splits)
Output ingredients
ice cream sticks,damwiches,slices,candy bars,bite sizes,ball top cones,wafer cups
Market info
Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.

Technical Specifications


Capacity
Up to 24,000 products/hour
Product Types
Ice cream sticks,sandwiches,slices,candy bars,bites,cones,wafer cups
Automation
Recipe handling system
Gripper Head Cradle
Ingenious design for fast changeovers
Chocolate Tank
Coating precision with controlled temperature
Energy Efficiency
Servo-driven system
Changeover Time
Approx. 1 minute
Dipping Control System
Automated dipping speed,time,and level
Modular Design
Easily add extra modules

Operating Characteristics


Changeover time
1 minute with two operators
Automation level
PLC-controlled
Cleaning method
Tool-free dismantling,CIP
Batch vs. continuous operation
Continuous

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Suitable for
Tetra Pak Extrusion Tunnel M3 models

Physical Characteristics


Machine footprint
Compact
Discharge method
Lay down system
Control panel type
PLC-controlled
Tank shape
Chocolate tank with sloped bottom

Custom Options


Control panel type
HMI/PLC
Integration possibilities
Compatible with Tetra Pak® Extrusion Tunnel M3 models
Module addition
Easy to add extra modules for future needs
Design
Highly compact and robust
Gripper head system
Ingenious gripper head cradle,fast connection air fittings
Dipping divisions
Split coating tank with separate pumps
Dip-cup design
Uniform dry ingredients distribution,no build-up
Dipping control system
Automated with recipe handling system
Tool-free dismantling
Pumps and dip cup
