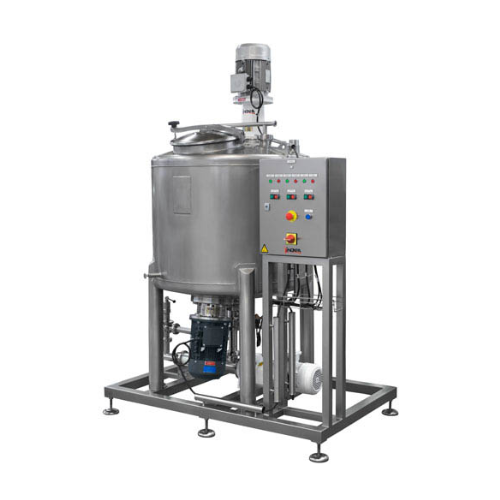

Hydroalcoholic gel mixing system

Ensure seamless production of hydroalcoholic gels with an advanced mixing system designed for rapid dispersion and precise blending of alcohol-based solutions and thickeners.

Mixes and Dispenses Hydroalcoholic Gel Components

The CMC-ATEX System by INOXPA is a versatile mixing unit tailored for the production of hydroalcoholic gels, particularly suited for cosmetic and pharmaceutical industries. It employs a rotor-stator mixer to ensure efficient dispersion and homogenization of thickeners like xanthan gum and carbopol in alcohol-based solutions. The system supports both batch and continuous operations, capable of handling viscosities up to 5000 cP with adaptability for more viscous products.

Engineered with AISI 316L stainless steel for corrosion resistance, it integrates seamlessly into production lines, featuring CIP capabilities for efficient cleaning. The CMC-ATEX is fully ATEX-certified for safe operation in volatile environments and is equipped with a control panel for seamless integration with existing automation systems. Options for customization include anchor-type agitators, jacketed tanks for thermal control, and skid-mounted pumps, ensuring the system meets specific production requirements.

Benefits

  • Ensures rapid and homogeneous mixing, minimizing product variability and enhancing consistency.
  • Safely operates in explosive atmospheres, reducing risk for alcohol-based production lines.
  • Lowers cleaning time with integrated CIP capabilities, boosting overall plant efficiency.
  • Adaptable design accommodates a wide range of viscosities, making it suitable for diverse formulations.
  • Facilitates regulatory compliance with ATEX certification for operation in volatile environments.

General


Applications
Stabilisers,Alcohol-based solutions,Jellifying agents,Hydrocolloids,Hydroalcoholic gel,Complexing agents,Thickeners
End products
Carbopol gel,Guar gum solution,Hydroxypropyl cellulose gel,Cmc thickened solution,Xanthan gum solution,Pectin gel,Hand sanitizers
Steps before
Purification,Drying,Emulsification,Grinding
Steps after
Sterilization,Packing
Input ingredients
carboxymethylcellulose (CMC),flours,carbopol,pectin,guar gum,xanthan gum,ethanol,isopropanol,water,glycerin,gelling agents
Output ingredients
hydroalcoholic gel
Market info
INOXPA is known for its expertise in manufacturing stainless steel components and equipment, particularly for the food, dairy, cosmetic, and pharmaceutical industries. They are reputed for high-quality, hygienic, and reliable processing solutions.

Technical Specifications


Agitation method
Cowles-type,anchor-type
Batch size
Configured for products up to 5000 cP
Material
AISI 316L stainless steel
Mixing speed
Incorporates rotor-stator mixer
Surface finish
Internal Ra ≤ 0.8 µm,External brushed,washed and passivated welds
Viscosity capability
Up to 5000 cP (standard configuration)
Tank volume capacity
Configured for viscous and less viscous products
Powder dispersion time
Efficient due to high-shear and agitator system
Control system
Manual butterfly valves
Feeding mechanism
Manhole for powder adding
CIP capability
Equipped with CIP spray balls
Level monitoring
Maximum and minimum level probe
Mixing tank type
Vertical closed unit
Discharge method
Manual butterfly valves

Operating Characteristics


Working Mechanism
High-shear mixing with rotor-stator
Batch vs. Continuous Operation
Batch
CIP/SIP
CIP
Automation Level
Manual / PLC
Cleaning Method
CIP
Explosive Atmosphere Compliance
ATEX
Product Viscosity Handling
Up to 5000 cP
Shearing Efficiency
Enhanced by rotor-stator

Material Compatibility


Corrosive resistance (e.g. acids)
AISI 316L stainless steel
Cleanability
EPDM gaskets
Abrasion resistance
AISI 316L stainless steel
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Tank shape
Vertical
Tank material
AISI 316L Stainless Steel
Agitator type
Vertical agitator with cowles propeller
Footprint
Compact
Additional mixer
Rotor-stator mixer at tank bottom
Level detection
Maximum and minimum level probe
Inspection feature
Manhole for powder adding and inspection
Cleaning method
CIP spray balls
Discharge method
Manual butterfly valves
Surface finish
Internal 2B,with polished welds Ra ≤ 0.8 µm
External surface
2B,brushed,washed,and passivated welds

Custom Options


Control panel type
Manual / Non-classified zone installation
Agitator type
Vertical agitator with cowles propeller / Anchor-type agitator
Discharge method
Manual butterfly valves
Tank features
Jacketed and insulated tank / Manhole for powder adding and inspection
Agitation elements
Rotor-stator mixer / Cowles-type agitator
Pump options
Product discharge pump / Skid-mounted discharge pump
Level detection
Maximum and minimum level probe
Sampling option
Sampling valve in the tank body
