Hydraulic press for frozen meat and bacon

Achieve consistent shaping and high-quality output for frozen meat and bacon products with precision three-dimensional pressure, optimizing your yields and streamlining your slicing and packaging processes.

Shapes and Presses Meat for Uniform Consistency

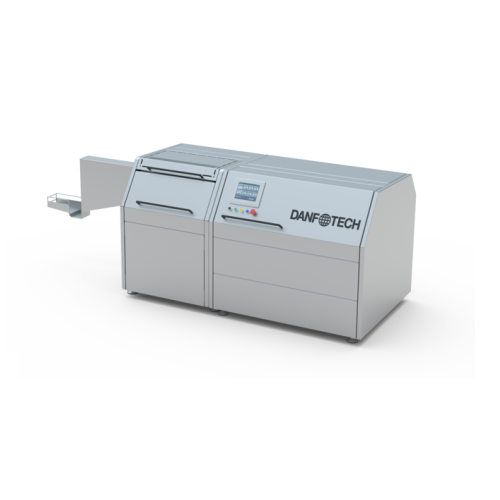

The Type 6+ Press from Danfotech is a hydraulic press designed to mold and shape meat products with precision. Utilizing a three-dimensional pressure system, this press achieves uniformity in products like bacon strips and meat loins, optimizing slicing and packaging efficiency. Suitable for applications in meat processing and alternative protein production, it accommodates manual or automatic operation, boasting a throughput of up to 6 cycles per minute. The press integrates seamlessly into production lines, using less energy with an optimized hydraulic system and eliminating the need for water cooling. Made for durable performance, it offers quick, toolless die changes and is constructed to handle the rigorous demands of food processing environments. With a user-friendly HMI control system, the Type 6+ Press supports easy operation and maintenance, ensuring reliable performance and consistent product quality.

Benefits

  • Enhances product consistency, increasing slicing yield and reducing waste.
  • Lowers energy costs with an optimized hydraulic system and no water cooling needed.
  • Simplifies operation and maintenance with an intuitive HMI control and quick die changes.
  • Adapts easily to existing setups, using current die-sets from older models.
  • Ensures robust and reliable performance with durable, proven technology.

General


Applications
Meat products,Alternative proteins,Pet food,Bakery,Lean finely textured beef,Whole muscle products,Sausages,Bacon,Cured meat products
End products
Sandwich bacon,Cured ham,Bacon strips,Lean beef patties,Sausage links,Frozen beef slices,Meat loins,Pet food chunks,Vegan meat slices
Steps before
Defrosting,Loading,Manual Infeed
Steps after
Automatic Discharge,Slicing,Packaging
Input ingredients
frozen meat,bacon,meat loins
Output ingredients
specific shapes,uniform shapes,finished product
Market info
Danfotech (Middleby) is known for designing and manufacturing custom-engineered food processing equipment, specializing in solutions for the meat and poultry industry. They hold a strong reputation for innovation and quality in engineered-to-order systems.

Technical Specifications


Cycle speed
Up to 6 cycles per minute
Power requirement
40 hp / 30 kW
Control voltage
24 VDC
Service amps
63 A
Air pressure
73-100 PSI or 5-7 bars
Press chamber dimensions
790 mm x 406 mm x 120 mm (31”x16”x4.7”)
Voltage
380V-460V x 3 phase 50Hz or 60 Hz
Cooling water requirement
1.6 gal/min. / 6.05 l/min.
Water pressure
29-87 psi / 2-6 bars
Temperature range
14°-25° F (-10° to -4° C)
Tool change time
Less than 5-7 min.
Automation level
Manual infeed and automatic discharge

Operating Characteristics


Working mechanism
Hydraulic Optimized Press
Automation level
Manual infeed / Automatic discharge
Changeover time
Quick toolless die change in less than 5-7 min
Batch vs. continuous operation
Batch
Energy efficiency
Optimized hydraulic system using less energy
Cleaning method
No water cooling needed for hydraulic oil
Control panel type
Intuitive HMI control

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Pressing
Bacon and meat loins into specific shapes

Physical Characteristics


Machine footprint
N/A
Press chamber dimensions
790 mm x 406 mm x 120 mm (31”x16”x4.7”)
Discharge method
Automatic discharge
In-feed method
Manual infeed
Quick die change capability
5-7 minutes
Control panel type
HMI control

Custom Options


Control panel type
Intuitive HMI control
Discharge method
Automatic discharge
In-feed method
Manual infeed with optional in-feed conveyor
