Hot mounting press for metallographic samples
Streamline your sample preparation with high-speed, modular hot mounting presses, designed to ensure precise, energy-efficient mounting of metallographic specimens while enhancing operator safety with innovative dust management features.
Mounts and Prepares Metallographic Specimens

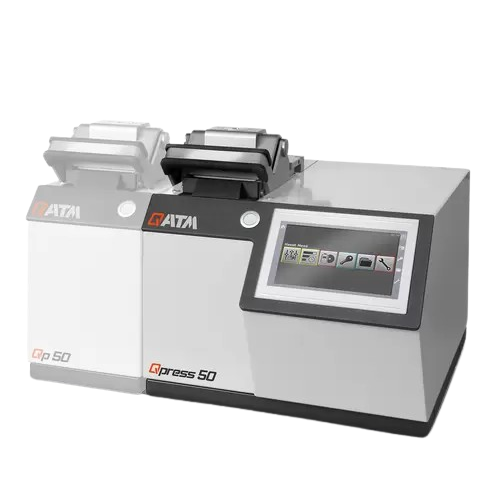

The Qpress 50 series from ATM Qness GmbH is a modular hot mounting press uniquely designed for metallographic and materialographic sample preparation. Its modularity allows configuration to meet specific laboratory requirements, enabling the simultaneous and independent mounting of samples. Equipped with a 7-inch touch screen and intuitive control software, it features pre-installed preparation methods and user account management for ease of operation. The Qpress 50 improves safety and mounting efficiency with an integrated Dust Guard and sliding closure system, offering fast mounting cycles through pre-heating functions and adjustable cooling power. Suitable for applications ranging from metallurgy to aerospace, and supporting operations in research and development settings, this press handles variable mount sizes and is designed for benchtop installation, making it ideal for both educational institutions and industrial quality control departments.
Benefits
- Enhances sample preparation efficiency with fast mounting cycles, reducing overall workflow time.
- Boosts laboratory safety with integrated Dust Guard to prevent inhalation of fine particles.
- Customizes operations with modular design, allowing configuration for specific sample sizes and material types.
- Conserves water with adjustable cooling modes and pre-heating functions, decreasing operational costs.
- Provides operational flexibility with user-friendly touch screen and pre-installed preparation methods.
- Applications
- Metal powders,Metallographic samples,Materialographic specimens,Hardness testing,Industrial components,Laboratory consumables,Industrial coatings,Mounting consumables,Alloys
- End products
- Mounted industrial components,Laboratory test samples,Metal powder compacts,Coated metal samples,Metallographic sections,Materialographic mounts,Alloy test samples,Hardness test samples,Mounted metallographic specimens
- Steps before
- Specimen preparation,Material selection,Mould preparation,Pre-heating,Filling with mounting material
- Steps after
- Cooling,Grinding,Polishing,Etching,Analyzing,Hardness testing
- Input ingredients
- materialographic specimens,mounting material,mold assembly,mounting resin
- Output ingredients
- mounted metallographic samples,mounted materialographic specimens,mounted specimen
- Market info
- QATM is renowned for its expertise in manufacturing high-quality metallographic equipment and consumables, providing innovative solutions for material testing and analysis, which are trusted by laboratories and quality control professionals globally.
- Touch Screen Size
- 7“
- Mould Cylinder Size
- ø 25.2 - 50 mm
- Thermostate Range
- 20-200°C
- Heating Power
- 1200 W
- Max Pressure in Mould Cylinder
- 250-350 bar
- Connection Power (Basic Unit)
- 1.6 kVA
- Connection Power (Additional Pressing Unit)
- 1.5 kVA
- Max Number of Pressing Units
- 4
- Weight
- ~ 50 kg
- Unit Dimensions (Basic Unit)
- 402 x 382 x 563 mm
- Unit Dimensions (Additional Pressing Unit)
- 187 x 382 x 449 mm
- Closure System
- Slide closure
- Modularity
- High
- Cooling Options
- Adjustable cooling modes
- User Accounts
- Management with different access rights
- Automation level
- Touch screen interface
- Batch vs. continuous operation
- Batch
- Cleaning method
- Manual cleaning with removable components
- Changeover time
- Quick due to modular design
- Energy efficiency
- High due to innovative heating/cooling
- User interface
- 7” touch screen with QATM software
- Mounting cycle speed
- Fast,due to pre-heat function
- Safety features
- Dust Guard with exhaust device
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Machine footprint
- 402 x 382 x 563 mm (basic unit)
- Machine footprint
- 187 x 382 x 449 mm (additional pressing unit)
- Weight
- ~ 50 kg
- Mould sizes
- Ø 25.2 mm,Ø 30 mm,Ø 1¼“ (~32 mm),Ø 1½“ (~38 mm),Ø 40 mm,Ø 50 mm
- Closure system
- Slide closure
- Control panel type
- 7” color touch screen
- Mounting quantity
- Up to 4 mounts simultaneously
- Control interface
- 7" touch screen
- User account management
- Different access rights
- Mounting unit configuration
- 1 to 4 mounts
- Cooling modes
- Adjustable
- Mould sizes
- 25.2 mm to 50 mm
- Heating/Cooling Power
- Adjustable
- Pre-installed recipes
- Yes
- Modularity
- Extendable pressing units
