Horizontal tray dryer for moisture removal

Ensure consistent product quality in nut and olive processing by efficiently removing moisture with a system that adapts to various drying needs and allows seamless integration into your production line.

Removes Moisture from Nuts and Olives

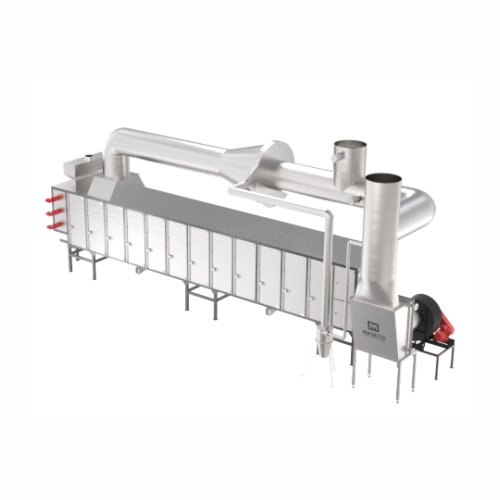

The Horizontal Tray Dryer from Maseto is designed for efficient moisture removal in nuts and olives, crucial for achieving consistent product quality in food processing. Its modular tray system, constructed from stainless steel, ensures optimal air ventilation and uniform drying. Capable of processing 500 to 3500 kg/h, the dryer allows flexible adaptation to various production demands. The automatic control of product retention time and temperature regulation facilitates precise drying for products such as roasted almonds and dehydrated walnuts. With easy access for thorough cleaning and potential for capacity expansion, this dryer integrates smoothly into continuous production lines, offering reliability and efficiency.

Benefits

  • Enhances product quality with precise moisture control.
  • Increases processing efficiency with high throughput of up to 3500 kg/h.
  • Minimizes labor intervention through automatic temperature and retention control.
  • Simplifies cleaning and maintenance with easy-access doors.
  • Offers scalability with modular design for expanding production capacity.

General


Applications
Nuts,Olives
End products
Nut flour,Olive tapenade,Roasted almonds,Nut snack mixes,Olive oil cakes,Dried olives,Dehydrated walnuts
Steps before
Cleaning,Selection and Sieving,Blanching,Grinding and Milling
Steps after
Storage,Roasting and Seasoning,Optical Sorting,Packing
Input ingredients
moisture-rich products,olives
Output ingredients
dehydrated products,dried olives
Market info
Maseto is known for supplying industrial engineered-to-order (ETO) equipment, specializing in custom machinery solutions for various sectors. Their expertise lies in advanced engineering, innovation, and high-quality manufacturing, earning them a strong reputation for reliability and precision.

Technical Specifications


Capacity
500–3500 kg/h
Material of Construction
Stainless Steel
Ventilation
Perfect ventilation through tray apertures
Automation
Automatic control of product permanence and temperature
Modularity
Expandable for increased production
Product Type
Olive dehydration capability

Operating Characteristics


Airflow control
Regulated according to product needs
Tray movement
Adjustable
Tray accessibility
Easily removable for cleaning
Automation level
Automatic control of product permanence and temperature
Modular capabilities
Expandable production
Batch vs. continuous operation
Continuous

Material Compatibility


Abrasion resistance
Stainless steel trays
Cleanability
Easy access for cleaning
Corrosive resistance (e.g. acids)
Stainless steel construction

Product type Characteristics


Heat sensitivity
Adjustable temperature regulation
Moisture removal efficiency
500 – 3500kg/h

Physical Characteristics


Machine footprint
Modular design
Construction material
Stainless steel
Tray design
Exclusive,easily removable
Ventilation apertures
Built-in trays
Access doors
Perimeter access for cleaning
Production capacity
500 – 3500 kg/h
Expandability
Modular expansion

Custom Options


Tray Design
Exclusive,easily removable stainless steel
Modular Expansion
Possible
Temperature Regulation
Automatic control
Product Permanence Control
Automatic
Tray Movement Regulation
Adjustable
