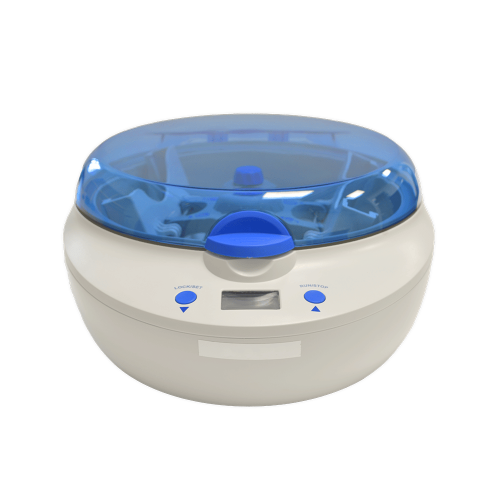

Horizontal plate centrifuge for Pcr and elisa plates

Achieve efficient droplet removal and thorough sample processing with a compact horizontal plate centrifuge designed for simultaneous handling of PCR and Elisa plates, enhancing your laboratory’s workflow precision and speed.

Processes and Centrifuges PCR and Elisa Plates

The Horizontal Lab Plate Centrifuge offers a practical solution for laboratories seeking efficient sample processing in PCR and Elisa plate applications. This compact unit is distinguished by its unique horizontal rotor design, enabling simultaneous processing of two sample plates. Ideal for biotech, pharmaceutical, and diagnostic industries, it excels in droplet removal and sample processing. Operating at speeds up to 2,200 RPM, it ensures rapid and reliable centrifugation. Its manual, bench-top operation suits any laboratory setup without compromising on speed or efficiency. The centrifuge’s streamlined design minimizes noise and enhances user experience, supporting a diverse range of laboratory applications with interchangeable adaptors for various plate and tube types.

Benefits

  • Enhances lab productivity with efficient droplet removal and sample processing.
  • Saves space with a compact design suitable for bench-top use.
  • Reduces operational noise, creating a quieter laboratory environment.
  • Facilitates versatile sample handling with adaptable rotors for different plate and tube configurations.
  • Offers quick and easy operation, minimizing setup and user intervention.

General


Applications
Biotechnology,Diagnostics,Laboratory research,Pcr plates,Elisa plates,Life sciences
End products
Protein binding assays,Pcr products,Molecular biology reagents,Diagnostic test samples,Elisa assay kits,Dna/rna extraction samples
Steps before
Sample Preparation,Plate Loading,Reagent Addition
Steps after
Analysis,Detection,Sample Storage
Input ingredients
PCR Plates,Elisa Plates,PCR Tubes,PCR Strip Tubes,non-skirted plates
Output ingredients
spun down droplets,centrifuged samples,separated components
Market info
Molgen is known for manufacturing customized engineered-to-order (ETO) equipment, specializing in tailored solutions for complex industrial needs. Their expertise lies in innovative engineering, delivering high-quality, precise, and reliable machinery that meets specific client requirements.

Technical Specifications


Maximum Speed
2,200 RPM
Width
290 mm
Depth
360 mm
Height
140 mm
Weight
3.6 kg
Compact footprint
Yes
Timer
Up to 10 minutes
Fast breaking time
Within 30 sec
Compatible plastics
2x Standard PCR Plates,2x Elisa Plates,8x 0.2 mL PCR Strip Tubes,8x 0.2 mL PCR Tubes

Operating Characteristics


Rotor Type
Horizontal
Number of Plates Processed
2
Operation Mode
Manual / Auto
Speed Control
Max Speed
Timer Function
Up to 10 minutes
Start/Stop Mechanism
Quick Start/Brake
Noise Level
Low Running Noise

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm
Compatibility with PCR Plates
Skirted,Non-Skirted
Compatibility with PCR Tubes
0.2 mL

Physical Characteristics


Compact footprint
Yes
Control panel type
2 button operation
Width
290 mm
Depth
360 mm
Height
140 mm
Weight
3.6 kg
Discharge method
Horizontal rotor centrifugation

Custom Options


Compact footprint
Yes
Control panel type
2 button operation
Discharge method
Horizontal rotor centrifugation
Integration possibilities
Compatible with PCR Plates,Elisa Plates,PCR Tubes
