High-speed sifting for safety screening in pharmaceutical production

Achieve precise particle sizing with a high-speed sifter designed for continuous pharmaceutical production, ensuring product quality through efficient screening and sieving operations.

Processes Fine Powders and Granules Efficiently

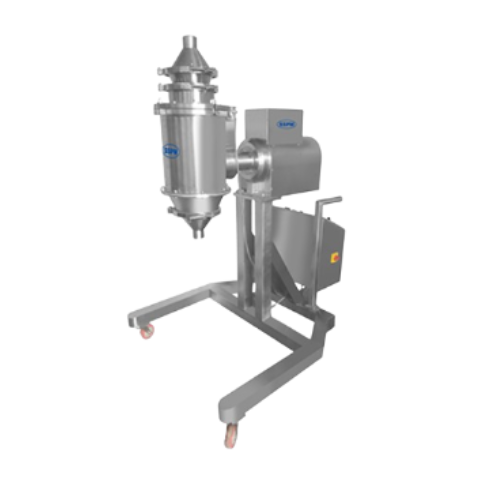

Designed by SSPM Systems & Engineers Pvt. Ltd., the SigmaHighSift offers a high-speed solution for sifting and screening across pharmaceutical, nutraceutical, and chemical industries. Its vacuum-rated design ensures precise separation of powders and granules, essential for producing paracetamol tablets, protein powders, and more. With a sieve speed adjustable from 150 to 1500 RPM via VFD, it accommodates varying process requirements, optimizing particle size distribution and output from 300 to 2000 kg/hr. Constructed for continuous operations, it integrates seamlessly with pre-processing lines and is suitable for both online and offline applications. The robust construction, including optional magnetic grill and customizable sieve sizes, supports efficient, contamination-free processing aligned with GMP standards. Its stainless steel build offers excellent durability and resistance to corrosion, making it ideal for demanding operational conditions. Additionally, engineering support allows for tailored configurations, ensuring the equipment meets specific production needs while minimizing downtime through easy maintenance protocols.

Benefits

  • Ensures consistent product quality with precise particle sizing.
  • Enhances production efficiency with high-speed, continuous operation.
  • Adapts to various process needs with customizable sieve sizes.
  • Minimizes contamination risk with stainless steel construction.
  • Integrates seamlessly into existing production lines for streamlined operation.

General


Applications
Vitamins,Metal powders,Fine chemicals,Pharmaceutical tablets,Minerals,Nutraceuticals,Pharmaceutical powder,Supplement
End products
Gold nanopowder,Iron supplement powder,Herbal supplement capsules,Sodium ascorbate powder,Magnesium oxide fine powder,Ferrous sulfate powder,Vitamin c effervescent tablets,Zinc supplement tablets,Calcium tablets,Multivitamin tablets,Beta-carotene tablets,Paracetamol tablets,Green tea extract capsules,Protein supplement powder,Whey protein powder
Steps before
Mixing,Dry Granulation,Sizing,Milling
Steps after
Packing,Coating,Tablet Pressing
Input ingredients
Output ingredients
Market info

Technical Specifications


Output
300 to 2000 Kg/Hr
Size of Sieves
1/1.5/2/2.5/3/4/5/ 6 mm,Onwards On Request
Sieve Speed
150 to 1500 RPM Via VFD
Motor Power
5 HP

Operating Characteristics


Working Mechanism
High Speed Sifter
Operation Type
Online or Offline
Sieve Speed
150 to 1500 RPM Via VFD
Magnetic Grill Option
Available
Output Range
300 to 2000 Kg/Hr
Vacuum Rated Design
Yes

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Compact / Large
Size of Sieves
1/1.5/2/2.5/3/4/5/6 mm,Onwards On Request
Sieve Speed
150 to 1500 RPM
Feed/Discharge Method
Online or Offline

Custom Options


Integration possibilities
Online/Offline
Control panel type
Customizable
Magnetic Grill
Optional
Sieve Size
1/1.5/2/2.5/3/4/5/ 6,Onwards On Request
