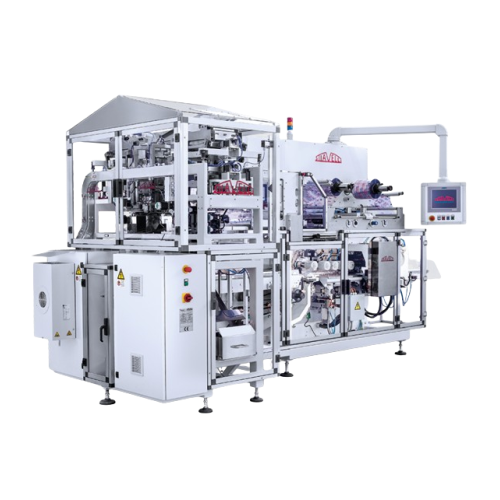

High-speed pasta packaging system
Streamline your pasta packaging process with an advanced system that combines precise weighing, efficient sealing, and rapid packaging, all powered by brushless motors to enhance accuracy and reduce waste.
Packs and Seals Long Cut Pasta Efficiently
The GEA H-Packer SO is a high-speed packaging system designed for pasta and snack industries, powered by advanced brushless motors. What sets this equipment apart is its ability to manage precise weighing, feeding, and sealing processes, utilizing double dosers with integrated volumetric finishing systems. It’s ideal for packaging long cut pasta, such as spaghetti, linguine, and lasagna sheets, ensuring minimal product waste through its innovative stripping sealing jaws. Operating up to 120 bags per minute with MCR sealing jaws, the system maintains flexibility and integration with existing production lines through its PLC control and automatic film splicing device. The GEA H-Packer SO excels in efficiency and consistent product quality, making it a valuable addition for food processing companies seeking seamless operation and reliable packaging solutions.
Benefits
- Increases packaging speed up to 120 bags per minute, maximizing production efficiency.
- Minimizes product waste with patented stripping sealing jaws, enhancing quality control.
- Offers flexible operation with adjustable feeding channels, accommodating various pasta formats.
- Integrates seamlessly into existing lines with PLC-controlled automation.
- Enhances energy efficiency through optimized brushless motor management.
- Applications
- Snacks,Breakfast cereals,Pasta
- End products
- Spaghetti,Linguine,Fettuccine,Lasagna sheets
- Steps before
- Mixing,Cutting,Drying
- Steps after
- Sealing,Labelling,Cartoning
- Input ingredients
- long cut pasta,spaghetti
- Output ingredients
- packaged long cut pasta,packaged spaghetti
- Market info
- GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.
- Packaging speed (MCR sealing jaws)
- Up to 120 bags per minute
- Packaging speed (Stripping sealing jaws)
- Up to 100 bags per minute
- Bag size
- 500 g
- Product type compatibility
- Long cut pasta
- Automation
- Brushless motor control
- Feeding channel adjustability
- Various long cut pasta formats
- Sealing jaws operation mode
- MCR traditional / STRIPPING action
- Sealing technology
- Patented stripping sealing jaws
- Film splicing device management
- PLC and motion control boards
- Motor type
- Brushless motors
- Automation level
- PLC / Motion Control
- Cleaning method
- Manual / CIP
- Batch vs. continuous operation
- Continuous
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Product Type
- Pasta
- Machine footprint
- Compact
- Discharge method
- Horizontal
- Control panel type
- Brushless motor control
- Feeding channels
- Adjustable
- Sealing jaws design
- MCR/STRIPPING assembly
- Control panel type
- PLC and motion control boards
- Motor type
- Brushless motors
- Sealing jaws configuration
- MCR/STRIPPING assembly
- Sealing jaws motor control
- Independent brushless motor
