High-speed drift-dwell motion doypack forming system

Optimize your liquid packaging efficiency with a dual-motion system designed for precise pouch forming and filling, perfect for handling various bag dimensions and ensuring secure sealing for consistent product quality.

Forms and Fills Liquid Doypack Pouches

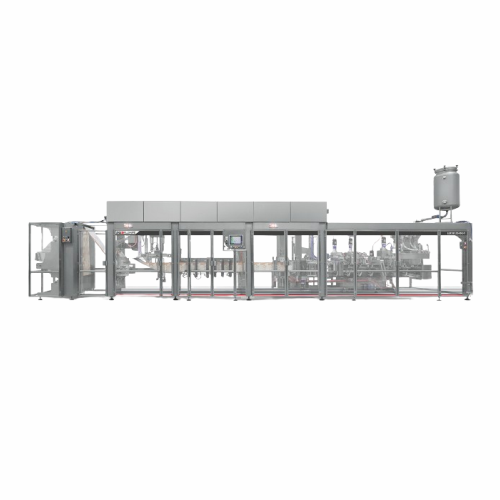

The LUX DD 235-100/8 from IMA Group is a high-speed Doypack machine designed for the efficient production of liquid-filled pouches. Employing a unique dual motion system, it combines intermittent motion for precise pouch forming and spout application with continuous motion for extended filling times, improving throughput. Applications include personal care products such as liquid soaps and shampoos, as well as home care products like liquid detergents and fabric softeners. With a processing capacity of up to 100 pouches per minute for 500 ml volumes, this equipment suits high-demand production lines.

Automated with PLC controls, it integrates seamlessly into existing production environments, ensuring high efficiencies with energy savings via servo-controlled operations. The LUX DD 235-100/8 handles various pouch dimensions and integrates spout pre-heating and sealing stations, enhancing reliability and maintaining precise film tension with integrated sensors. This machine supports sustainable materials like paper-based or recyclable mono-material films, aligning with environmental goals. It requires minimal maintenance and offers easy cleaning features to reduce downtime in continuous operations.

Benefits

  • Enhances production efficiency by combining dual motion systems for precise forming and extended filling times.
  • Supports sustainability goals with compatibility for recyclable and paper-based film materials.
  • Minimizes waste through precise pouch positioning and accurate cutting.
  • Reduces operational costs with energy-efficient servo motor technology.
  • Integrates smoothly into existing lines with automated PLC controls, reducing labor requirements.

General


Applications
Beverages,Sauces,Personal care products,Liquid formulations,Detergents,Home care products
End products
Ketchup,Liquid detergents,Shampoos,Barbecue sauce,Dishwashing liquids,Mayonnaise,Fabric softeners,Tomato sauce,Conditioners,Hand sanitizers,Iced teas,Fruit juices,Liquid soaps
Steps before
Film Roll Preparation,Pouch Forming,Fitment Application
Steps after
Product Handling,Cartoning,Tray Packing,Shrink Wrapping,Over Wrapping,Case Packing,Palletizing,Labelling,Quality Control
Input ingredients
flat film roll stock,liquid products,sustainable materials,paper-based films,recyclable PE films,PP mono material films
Output ingredients
Doypack bags,high quality Doypack,corner spout application,shaped round corners,handle punch
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Automation
Duel motion system
Capacity
70–100 ppm depending on pouch volume
Noise level
within 80db
Reel dimension
Ø 600mm – 23.622”
Reel core
Ø 76/152mm – 2.992”/ 5.984”
Electrical consumption
400/480VAC – 50/60Hz
Pressure and air consumption
6 bar – 750Nl/min + 600Nl/min
Pouch width
120/235 mm – 4.724” / 9.251”
Pouch height
190/330 mm – 7.480” / 12.992”
Pouch gusset height
15/60 mm – 0.59” / 2.362”
Filling method
Continuous motion filling unit
Filling volume
up to 1.5 lt.
Pouch feature
Corner spout,shaped round corners,handle punch
Cooling system
Top cooling system integrated

Operating Characteristics


Dual Motion System
Intermittent and Continuous
Forming and Filling Mechanism
Pouch Forming and Fitments Application with Continuous Motion Filling
Film Tension Control
Active Control with Dual Motion
Pouch Positioning Accuracy
Eye Mark Reading Sensors
Pouch Cutting Precision
Rotary Motion Cutting System
Mono-material Handling Ability
High-speed Production with Spout Pre-heating
Rejection System
Outfeed Wheel for Good vs Rejected Pouches
Cooling System
Integrated Top Cooling System

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm
Compatibility with sustainable materials
Paper-based,recyclable PE and PP mono material films

Product type Characteristics


Container type
Doypack bag
Material compatibility
Paper-based,PE and PP mono material films

Custom Options


Control panel type
HMI Available
Integration possibilities
Inline check weigher integration
Film material compatibility
Paper-based,recyclable PE and PP mono material films
Pouch customization
Corner spout application,shaped round corners,handle punch
Motion system
Dual motion (intermittent and continuous)
Servo control
Rotary servo motorized bottom punch,Servo controlled forming triangle
