High-speed decanting centrifuges for solid-liquid and liquid-liquid separation

Optimize your separation processes with high-speed centrifuges designed for efficient solid-liquid and liquid-liquid separation, ensuring precise product purification and enhanced production efficiency across diverse applications.

Performs High-Speed Solid and Liquid Separation

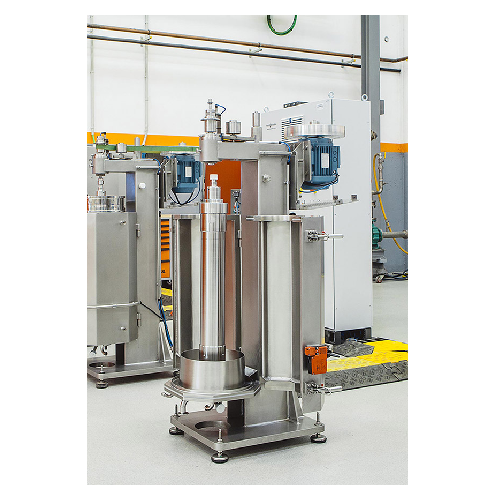

The RINA SRP from Riera Nadeu is a vertical decanting tubular bowl supercentrifuge designed for high-speed solid-liquid and liquid-liquid separations. With its robust construction, the RINA SRP efficiently clarifies and purifies liquids by exploiting a G-force up to 15,000G. This enhances the separation of fine impurities or immiscible phases in industries such as pharmaceuticals, biotechnology, and chemical processing. It allows precise extraction and clarification of products like insulin, antibiotics, essential oils, and more.

Operating with adjustable feed rates, the centrifuge offers flexibility in residence time, optimizing the separation process for continuous or batch operations. Its full-opening casing ensures ease of maintenance and safe operation while conforming to GMP standards. The option to incorporate heating or cooling coils minimizes product heat transfer, and its adaptability for explosive environments provides versatility and safety. Equipped with CIP and SIP systems, the RINA SRP simplifies maintenance and reduces downtime. This centrifuge seamlessly integrates into existing lines, providing a reliable solution for diverse separation needs.

Benefits

  • Enhances separation efficiency with high G-force, ensuring superior product purity.
  • Minimizes operational downtime with easy manual solid discharge and full-opening casing.
  • Reduces maintenance costs through integrated CIP and SIP systems.
  • Adaptable for hazardous environments, ensuring safety with customizable certifications.
  • Conforms to GMP standards, ensuring regulatory compliance for pharmaceutical applications.

General


Applications
Biotechnology,Gas,Fine chemicals,Oil,Waste treatment,Chemical,Biopharmaceuticals,Foodstuff,Mining,Pharmaceuticals
End products
Fruit juice clarification,Antibiotic separation,Insulin purification,Monoclonal antibodies,Fragrances,Crude oil processing,Chemical solvents,Protein extraction,Natural gas purification,Wastewater treatment,Mineral extraction,Peptides,Vaccine components,Essential oils
Steps before
Purification,Filtration,Mixing
Steps after
Clarification,Separation,Liquid Extraction,Manual Discharge
Input ingredients
liquid with suspended solids,non-miscible liquid phases,liquid phase with low concentration of solids
Output ingredients
clarified liquid,purified liquids,extracted solids
Market info
Riera Nadeu is known for its expertise in manufacturing centrifuges and drying equipment, particularly for industrial applications. They are reputed for high-quality, customized, engineered-to-order solutions in separation technologies for various industries.

Technical Specifications


Speed
15,000 rpm
G factor
15,000G mini
Bowl Diameter
0.254–1.014 m
Bowl Height
0.520–1.573 m
Volume Capacity
0.25–5 L
Motor Power
1-5 hp
Automation
Manual / Auto
Operation Type
Solid-liquid and liquid-liquid separation
Feed rate
Adjustable
Discharge Method
Manual
Temperature Control
Heating/cooling coils available
CIP/SIP System
Available
Noise Emission
Reduced through full opening casing
Safety Features
GMP compliant

Operating Characteristics


Working mechanism
Vertical decanting tubular bowl centrifuge
Separation method
Solid-liquid or liquid-liquid
Automation level
Manual solid discharge
CIP/SIP
Optional
Batch vs. continuous operation
Continuous with manual solid discharge
Feed rate adjustment
Manual to set residence time
Safety features
Full opening casing,explosion-proof options
Noise reduction
Full opening casing
Heating/cooling option
Coils for heat transfer control

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Solid-Liquid Separation
Vertical decanting tubular bowl centrifuge
Liquid-Liquid Separation
Different densities


GMP Compliance
Yes
ATEX Certification
Yes
CE Marking
Yes
FDA Compliance
Yes

Physical Characteristics


Machine footprint
Compact
Bowl diameter
254 mm - 1014 mm
Bowl height
520 mm - 735 mm
Volume
25 L - 101 L
Discharge method
Manual
Noise emission
Low
Rotor extraction
Front side
Casing type
Full opening
Casing thermal control
Heating/Cooling coils

Custom Options


Heating/Cooling option
Heating or Cooling Coils
Diaphragm installation
Various options depending on liquid phase concentration
