High-speed coffee capsule filling and sealing system

Streamline your capsule production with a high-speed solution that enhances efficiency, reduces waste, and supports various formats, perfect for high-demand environments requiring rapid output and versatile capabilities.

Fills and Seals Capsules Efficiently

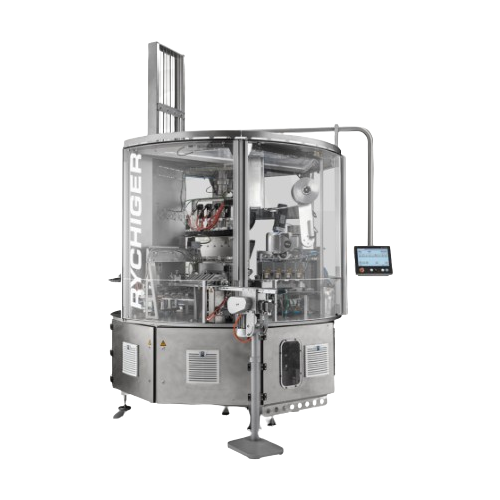

The FS 190 HS from Rychiger is a compact, high-speed capsule filling and sealing machine designed to meet the needs of coffee, tea, and multi-beverage manufacturers. This machine sets itself apart by delivering up to 400 capsules per minute through its efficient rotary indexing process, seamlessly handling capsules compatible with Nespresso, Dolce Gusto, K-Cup, and proprietary designs. With a minimal footprint under 5 square meters, it integrates seamlessly into existing production lines, offering continuous operation with minimal waste. Its modular design includes features like a low-waste foil punching module and integrated coffee grinder, all controlled by a robust electric drive system embedded within the base frame. Capable of processing a variety of materials, including plastic, aluminum, and paper, the FS 190 HS ensures reliable performance and enhanced energy efficiency. Whether filling, sealing, packing, and palletizing, this machine supports comprehensive automation and offers configurable options for different capsule types, ensuring tailored solutions for diverse production demands.

Benefits

  • Maximizes production output with 400 capsules per minute, increasing profitability.
  • Optimizes material usage to minimize waste, lowering operational costs.
  • Compact design saves valuable floor space, enhancing facility layout efficiency.
  • Supports diverse capsule types, expanding market reach and product offerings.
  • Efficient integration into existing lines reduces installation time and disruption.

General


Applications
Multi beverage capsules,Coffee capsules,Tea capsules,Proprietary capsules,Nespresso capsules,K-cup capsules,Dolce gusto capsules
End products
Espresso coffee capsules,Mocha dolce gusto-compatible capsules,Breakfast blend k-cup capsules,Earl grey tea capsules,Lungo nespresso-compatible capsules,Cappuccino multi-beverage capsules,Custom brand proprietary capsules
Steps before
Grinding,Material Preparation
Steps after
Packing,Palletizing
Input ingredients
coffee capsules,tea capsules,multi beverage capsules,Nespresso capsules,Dolce Gusto capsules,K-Cup capsules,proprietary capsules,plastic capsules,aluminum capsules,paper capsules
Output ingredients
filled coffee capsules,filled tea capsules,filled multi beverage capsules,packed capsules,palletized capsules
Market info
Rychiger is known for engineering high-precision filling and sealing machines for the food and medical industries, offering customized, innovative automation solutions, with a strong reputation for reliability and exceptional engineering expertise in the packaging sector.

Technical Specifications


Speed
100 cycles/min
Capacity
400 capsules/min
Footprint
Less than 5 m²
Number of Lanes
4 lanes
Weight
2,100 kg
Rated Power
7 - 14 kW
Connected Load
3 x 400 V + Pe / 50 Hz
Compressed Air
≥ 6 bar,15 l/min
Unit Height
45 mm
Outer Unit Diameter
35 mm - 55 mm

Operating Characteristics


Rotary cycles per minute
100 cycles/min
Capsule output rate
400 capsules/min
Machine footprint
Less than 5 m²
Automation level
Integrated electric drive systems
Changeover time
Quick retooling
Material compatibility
Plastic,aluminum,paper
Sealing method
Directly on the plate
Capsule types
Nespresso,Dolce Gusto,K-Cup,proprietary
Integrated functions
Foil punching,filling,palletizing
Energy efficiency
Optimized for low production waste
Compressed air requirement
≥ 6 bar,15 l/min

Physical Characteristics


Machine footprint
Less than 5 square meters
Compact design
Small footprint with integrated control unit and electric drive systems
Number of lanes
4
Machine size
2.1 x 2.1 m
Weight
2,100 kg
Output capability
400 capsules per minute
Coffee type compatibility
Nespresso,Dolce Gusto,K-Cup,and proprietary capsules

Custom Options


Control panel type
Integrated control and electric drive systems
Compact footprint
Less than 5 square meters
Capsule type compatibility
Nespresso,Dolce Gusto,K-Cup,others
Material handling capability
Plastic,Aluminum,Paper
