High shear GMP wet granulator

Achieve precise and homogenous wet granulation of powders with adaptable settings for improved batch consistency and reduced processing time, ensuring optimal preparation for downstream formulation.

Processes and Granulates Powders into Uniform Granules

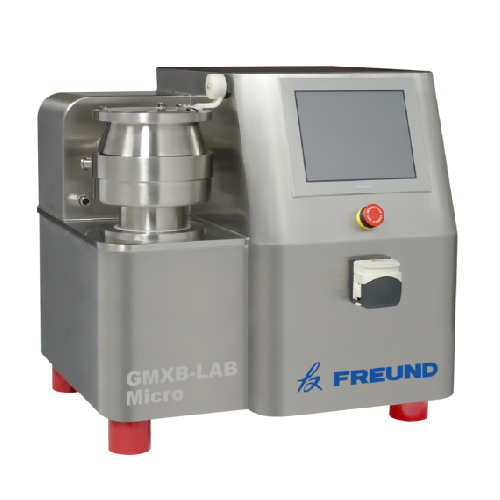

The GMXB-LAB Micro GRANUMEIST® by Freund is a lab-scale high shear wet granulator, integral to transforming powders into consistent, high-density granules for pharmaceutical, biopharmaceutical, and fine chemical applications. Its bottom-drive design ensures easy maintenance and user safety, while interchangeable product bowls provide flexibility across 1L to 6L batches. This granulator handles mixing and homogenizing processes with precision, supported by a peristaltic pump for both aqueous and solvent-based operations. The system also features user-defined speed settings and optional Smart-Safe™ containment for controlled environments. The integration of a color touchscreen control and USB data collection facilitates streamlined operations and process validations, ensuring compliance with industry standards.

Benefits

  • Enhances product consistency through precise control over mixing and granulation parameters.
  • Increases operational efficiency with tool-free, quick changeover design.
  • Offers scalable solutions from R&D to pilot-scale production.
  • Ensures safety and cleanliness with optional containment features.
  • Adapts to various formulations with flexible bowl and mixing configurations.

General


Applications
Supplements,Fine chemicals,Nutraceuticals,Biopharmaceuticals,Coating materials,Pharmaceutical powders,Pharmaceuticals
End products
Coating agents,Herbal extract granules,Effervescent granules,Active pharmaceutical ingredients (apis),Vitamin powders,Fine chemical intermediates,Tablet granules,Nutritional supplement tablets,Controlled-release tablets,Antibiotic powders
Steps before
Powder Handling,Emulsification
Steps after
Drying,Tablet Coating,Roller Compaction,Spray Drying,Packing
Input ingredients
powders,aqueous solutions,solvent solutions
Output ingredients
medium density granule,high density granule
Market info
Freund is known for its expertise in granulation and coating technology, supplying high-quality industrial equipment for pharmaceutical, chemical, and food industries. Renowned for innovation and reliability, Freund consistently delivers engineered-to-order solutions tailored to client needs.

Technical Specifications


Bowl Capacity
1L,2L,4L,6L
Working Capacity
0.3 - 0.7L,0.6 - 1.4L,1.2 - 2.8L,1.8 - 4.2L
Mixer Speed
710 - 1100 RPM,640 - 990 RPM,525 - 820 RPM,455 - 710 RPM
Engine Type
Bottom Drive
Automation
Color Touchscreen Control System
Integration
Integrated Peristaltic Pump
Temperature Control
Jacketed Bowl (Optional)
Process Flexibility
Aqueous and Solvent Processing
Data Collection
USB Data Collection Port
Safety
Smart-Safe™ Containment (Optional)

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch
Changeover time
Quick Changeover Design – No Tools Required
CIP/SIP
Easy cleaning and maintenance
Cleaning method
Bottom Drive Self-Contained System
Process Flexibility
Interchangeable Product Bowls
Process control
Color Touchscreen Control System

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Bowl Capacity
1L,2L,4L,6L
Working Capacity
0.3-0.7L,0.6-1.4L,1.2-2.8L,1.8-4.2L
Discharge method
Bottom Drive
Control panel type
Color Touchscreen
Interchangeable Product Bowls
Yes

Custom Options


Control panel type
Color Touchscreen Control System
Interchangeable Product Bowls
1L,2L,4L,6L
Integrated System
Self-Contained System
Containment Option
Smart-Safe™ Containment Optional
Jacketed Bowl
Optional for Product Temperature Control
