High pressure plunger pump for edible fats processing

Ensure consistent, high-quality edible fat products with precision control and hygienic transfer, utilizing high-pressure plunger technology for versatile processing needs.

Conveys and Pressurizes Liquid Edible Fat Products

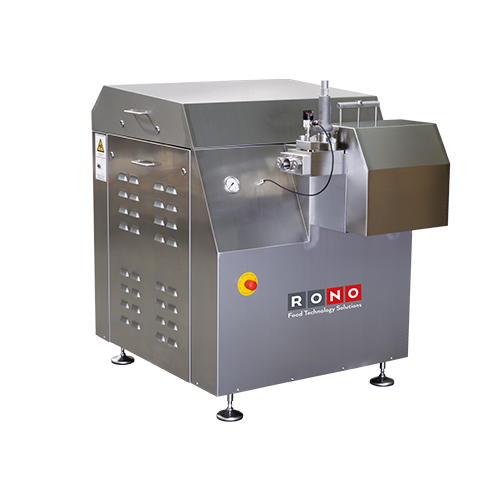

The RHP series from RONO comprises high pressure plunger pumps engineered for precision and reliability in edible fat processing lines. Utilizing a triplex piston mechanism, these pumps ensure smooth and stable product flow, ideal for applications like margarine, shortening, and butter blend production. Capable of handling up to 15,000 liters per hour, the RHP pumps offer digital process control for seamless integration into continuous processing operations. Built with a modular system, the pumps facilitate easy component replacement and maintenance, complying with stringent food industry standards, including CIP cleaning requirements. With a working pressure range up to 120 bar and available in various models, including options for poppet and ball valves, these pumps are customizable to meet diverse processing needs and ensure hygienic and efficient product transfer.

Benefits

  • Ensures consistent product quality with stable and smooth flow.
  • Enhances process flexibility with adjustable capacity and digital control.
  • Minimizes maintenance time due to modular design and easy part replacement.
  • Complies with strict hygiene standards through CIP cleaning compatibility.
  • Supports a wide range of edible fats, offering versatility in production.

General


Applications
Food industry,Edible fat products,Multipurpose process lines
End products
Shortening,Lard,Butter blends,Vegetable oils,Margarine
Steps before
Emulsification,Cooking/Mixing
Steps after
Packaging,Cooling
Input ingredients
edible fat products
Output ingredients
processed edible fats
Market info

Technical Specifications


Capacity (ℓ/h)
600 – 15,000
Working pressure range (bar)
Up to 120
Design pressure (bar)
100 – 150
Motor power (kW)
15.0 – 75.0
Pump type
Triplex / Quintuplex
Pump valve types
Poppet/Ball
Plunger diameter (mm)
36.5 – 69.9
Stroke (mm)
57.0 – 114.0
Frequency converter
Included
Safety valve
Included
Inlet/Outlet connection (DIN11851)
DN40/DN50/2×DN50
Dimensions (m)
0.75 × 1.1 × 1.4 – 1.5 × 1.5 × 2.3
Weight (kg)
930 – 2500

Operating Characteristics


Working Mechanism
Triplex plunger
Product Flow Stability
Stable and smooth
Automation Level
Digital process control
Flow Adjustment
Frequency converter
CIP/SIP
CIP compliant
Maximum Pressure
120 bar
Pressure Safety
Included safety valve
Operation Method
Multipurpose process lines

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Viscosity
Low to high (as different fat products may vary in thickness)
Heat sensitivity
Moderate (consideration for edible fat products)
Container size and shape
Various (depends on application and setup)
Abrasion potential
Low (due to soft nature of fat products)
Foaming potential
Low


CIP Compliance
Yes

Physical Characteristics


Machine Footprint
Varies by model (e.g.,0.75 × 1.1 × 1.4 m)
Weight
Varies by model (e.g.,930 kg)
Modular System
Yes
Plunger Diameter
Varies by model (e.g.,36.5 mm)
Stroke Length
Varies by model (e.g.,57.0 mm)

Custom Options


Control panel type
Digital process control
