High-pressure hydrogen generator for laboratory use
Replace cumbersome hydrogen cylinders with an on-demand generation solution that provides high-purity hydrogen directly from water, ensuring safety and efficiency in laboratory settings.
Generates On-Demand Hydrogen for Laboratory Applications

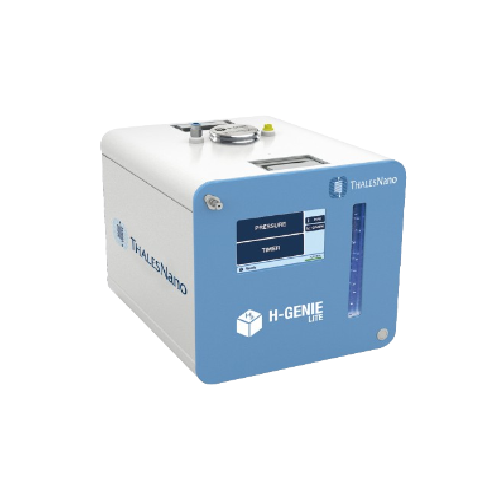

The H-Genie Lite from ThalesNano is a compact hydrogen generator designed for laboratory environments, offering a safe and efficient solution for hydrogenation processes in chemical, pharmaceutical, and research labs. Generating hydrogen on-demand up to 50 bar, it eliminates the need for conventional cylinders, saving space and ensuring safety with built-in leak detectors. Its intuitive touchscreen interface allows quick setup and operation, making it suitable for pharmaceuticals, fine chemicals, and isotopically labeled compounds production. The H-Genie Lite’s compact design fits standard fume hoods, streamlining integration into existing lab setups, and operates using deionized water, ensuring high purity output with minimal consumption.
Benefits
- Ensures laboratory safety with on-demand hydrogen generation and advanced leak detection.
- Decreases operational costs by replacing hydrogen cylinders with a consistent in-lab supply.
- Fits seamlessly into lab environments with its compact design suitable for fume hoods.
- Simplifies operation with an intuitive touchscreen interface for rapid setup and control.
- Provides high-purity hydrogen supply, essential for precise chemical reactions.
- Applications
- Laboratory equipment,Biochemical research,Fine chemicals,Pharmaceuticals
- End products
- Laboratory-scale hydrogen gas supply for experimental setups,Active pharmaceutical ingredients (apis),Isotopically labeled compounds,Hydrogenation-based laboratory samples,Specialty chemical intermediates
- Steps before
- Water Purification,Equipment Setup,Pressure Setting
- Steps after
- Reactor Connection,Safety Check,Maintenance
- Input ingredients
- deionized water,heavy water
- Output ingredients
- hydrogen gas,on-demand hydrogen
- Market info
- Thalesnano is known for manufacturing advanced flow chemistry solutions, particularly in catalyst and hydrogenation technologies. They are recognized for their expertise in continuous processes, enhancing safety and efficiency in chemical synthesis.
- Output pressure range
- 1-50 bar
- Purity
- ≥ 99.9% at room temperature
- Water consumption rate
- 200 mL/hr
- Water reservoir capacity
- 3L
- Unit dimensions (H x W x D)
- 385 x 365 x 476 mm
- Unit weight
- 33.7 kg
- Outlet fitting
- Swagelok tube fitting 1/8″ stainless steel
- Maximum flow rate at 1 bar
- 1 L/min
- Flow rate at 100 bar
- 10 mL/min
- Working mechanism
- On-demand hydrogen generation
- Integrated safety features
- Internal hydrogen leak detectors
- Automation level
- Intuitive touchscreen control
- Changeover time
- Instant start
- Batch vs. continuous operation
- Continuous on-demand
- Corrosive resistance (e.g. acids)
- High
- Cleanability
- Easy to clean
- Hydrogen compatibility
- Yes
- High-pressure resistance
- Up to 50 bar
- Temperature stability
- Room temperature
- Compact footprint
- 385 x 365 x 476 mm
- Control panel type
- Intuitive touchscreen display
- Unit weight
- 33.7 kg
- Discharge method
- Swagelok tube fitting 1/8″ stainless steel
- Water reservoir capacity
- 3L
- Control panel type
- Intuitive touchscreen
- Integration possibilities
- Can be integrated with laboratory reactors
- Footprint
- Compact size,fits into fume hoods
