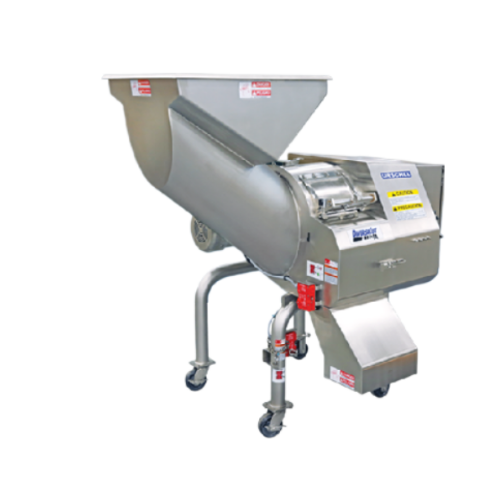

High-precision dicer for challenging food applications

Designed to handle challenging cutting tasks, this high-efficiency dicer excels in producing consistent, precise cuts, enhancing throughput for producers dealing with sticky or temperature-sensitive ingredients.

Processes Challenging Foods with Precision Cutting

The Affinity Integra® Dicer from Urschel Laboratories is a robust solution designed to tackle the toughest food processing challenges. This dicer excels in precision cutting for applications such as cheese, soft meats, and cold temperature products, producing high yields of targeted cut sizes. Utilizing a sophisticated feed spindle and drum mechanism, it ensures controlled cutting of sticky and moisture-rich products. The machine seamlessly integrates into existing production lines by replacing Model RA series machines, offering a potential increase in capacity between 20% to 50%. Constructed from corrosion-resistant stainless steel, it emphasizes sanitation with a fully separate food zone and easy-to-clean hinged panels. Designed for continuous, high-speed operation, the dicer features a soft-start function to extend drive train life and includes optional outboard bearing support for heavy-duty applications like dicing frozen-tempered bacon. Its NEMA 4X IP66-rated electrical enclosure provides robust protection from water and environmental conditions. With Urschel’s engineering support, you can tailor the Affinity Integra® to meet specific production requirements, ensuring efficiency and reliability across diverse food processing tasks.

Benefits

  • Enhances production capacity by up to 50% with a larger infeed and impeller design.
  • Ensures high sanitation standards with a fully separate food zone and corrosion-resistant materials.
  • Reduces maintenance time and effort with easy-access hinged panels and a self-draining round tube frame.
  • Extends machinery life and minimizes repair costs with a soft-start function and robust construction.
  • Adapts seamlessly to existing lines by integrating with previous Urschel models.

General


Applications
Tomatoes,Cheddar,Cheese,Sticky bakery ingredients,Graham crackers,Relish,Dried strawberries,Bacon,Pork belly,Cold temperature products,Garlic,Green pepper,Mozzarella,Pickles,Strawberries,Soft meats,Corn tortilla chips,Cream-filled cookies,High-fat meats,Blue cheese,Salami,Chocolate candy bars,Brined products
End products
Tortilla chip seasoning blends,Pork belly bites,Gourmet relish spreads,Cookie dough blends,Cream-filled cookie chunks for ice cream,Diced green peppers for toppings,Cheddar cheese for snack mixes,Strawberry preserve fillings,Pulled pork sandwiches,Chocolate bark pieces,Chicken sausages,Frozen fruit bars,Shredded mozzarella for pizza,Pre-cooked bacon bits,Graham cracker crumbs for pie crusts,Pickle relish jars,Diced tomatoes for salsa,Cheddar cheese cubes,Sliced strawberries for desserts,Blue cheese crumbles for salads,Salami strips for charcuterie boards,Minced garlic paste
Steps before
Preparation of raw materials,Temperature conditioning,Sorting,Washing
Steps after
Packaging,Sorting for quality control,Storage,Distribution
Input ingredients
cheese,soft meats,meats with high-fat content,cold temperature products,sticky bakery ingredients,brined products,pickles
Output ingredients
bacon crumble,pork belly dice,blue cheese crumble,chocolate candy bar granulation,cheddar dice,corn tortilla chips granulation,dried strawberry strip cut,garlic dice,graham crackers granulation,green pepper dice,relish dice,salami strip,cream-filled cookie granulation,strawberries dice,tomato dice,mozzarella strip
Market info
Urschel is known for its expertise in precision cutting technology and manufacturing industrial food processing equipment, especially cutting machines. It has a strong reputation for quality and innovation in delivering engineered-to-order solutions for the food processing industry.

Technical Specifications


Length
55.98" (1422 mm)
Width
54.05" (1373 mm)
Height
70.97" (1803 mm)
Net Weight
1500 lb (680 kg)
Motor Power
10 HP (7.5 kW)
Material
Stainless steel construction
Infeed Product Size
Up to 4.75" (120 mm)
Hinged Panels
Yes,for cleaning and maintenance
Electrical Enclosure Rating
NEMA 4X IP66
Design Efficiency Increase
20-50% compared to RA series
Operation
Continuous operation
Soft-start Feature
Yes

Operating Characteristics


Working mechanism
Hinged panels,positive feeding system
Batch vs. continuous operation
Continuous
Cutting action
Clean-cutting,high yields
Operation capability
Day-round continuous operation
Sanitation features
Separate food/mechanical zones,stainless steel construction,sloped surfaces
Design efficiency
Hinged panels for cleaning,optional outboard bearing
Energy efficiency
Soft-start system to extend drive train life

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product size compatibility
Up to 4.75" (120 mm)
Temperature sensitivity
Cold temperature products

Physical Characteristics


Machine Footprint
Length
Material Construction
Stainless steel
Net Weight
1500 lb (680 kg)
Frame Type
Round tube frame
Infeed Product Size
Up to 4.75" (120 mm)
Hinged Panels
Available for cleaning and maintenance access
Feed Method
Feed Spindle and Feed Drum
Construction Material
Corrosion-resistant,nonporous,nonabsorbent

Custom Options


Hinged panels
For cleaning and maintenance
