High infeed palletizer for varied product types
Optimize your production line with high infeed palletizers, ensuring seamless integration for products like bottled beverages and personal care items, while delivering efficient handling and perfect load formation for various packaging needs.
Palletizes and Organizes Product Loads

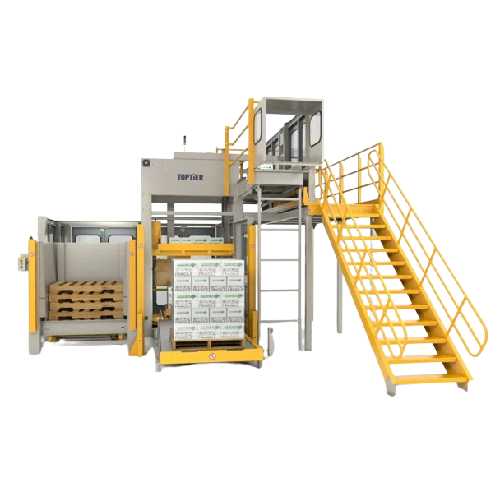

The TopTier High Infeed Case Palletizer from OCME sets a new standard in automated palletizing solutions for beverage, food, and personal care industries. Utilizing a modular design, it seamlessly integrates into your packaging line with precision and efficiency. Its advanced working principle features EuroDrive gear motors with servo-controlled VFDs, ensuring accurate motion control. Easily adaptable, it can accommodate high-speed continuous operations and diverse product types, from shampoo bottles to cardboard boxes. The palletizer’s EasyStack® software is user-friendly, enabling you to store and access 99 pallet patterns, with the option to create new ones via an intuitive HMI. Safety is built into the system, with features like a category 3 safety cage and light curtain protection. With load labeling, sheet handling, and options for tall and heavy loads, this palletizer offers comprehensive and efficient solutions for various production demands. Additionally, it conserves floor space and reduces end-of-line costs with concurrent stretch wrapping capabilities, making it a vital addition to any high-output production facility.
Benefits
- Maximizes operational efficiency with continuous, high-speed palletizing, reducing bottlenecks in production.
- Enhances safety with integrated light curtain and controlled access protocols, protecting personnel and machinery.
- Minimizes floor space usage and end-of-line costs with concurrent stretch wrapping technology.
- Allows seamless integration into existing lines with modular design and flexible configuration options.
- Simplifies product handling and pattern organization, reducing error rates with EasyStack® software and precise motion control.
- Applications
- Food,Personal care,Beverage,Tissue,Lubricants,Paper,Corrugated,Home
- End products
- Shampoo bottles,Cardboard boxes,Bottled water,Toilet paper rolls,Engine oil containers,Facial tissues,Soap bars,Snack chips,Breakfast cereals,Soft drinks
- Steps before
- Sorting,Conveying,Infeed Product Processing
- Steps after
- Stretch Wrapping,Load Labeling,Shipping
- Input ingredients
- case,bag,tray,trayless,open top,lidded,overwrapped,unwrapped,bundles,nested,display pack,totes
- Output ingredients
- palletized loads,labeled loads,stretch wrapped loads
- Market info
- OCME, part of Aetna Group Italy, is renowned for manufacturing innovative, high-quality packaging and material handling solutions, including filling, palletizing, and conveying systems, with a strong reputation for reliability and technological advancement in industrial sectors.
- Speed
- 1-5 layers per minute
- Load Height
- Maximum 108"
- Layer Weight
- Maximum 1000 lbs
- Case Weight
- Maximum 300 lbs
- Infeed Height
- 108" to 144"
- Minimum Case Dimension
- 4.5"
- Maximum Case Dimension
- 29"
- Footprint
- Typical 190" x 142"
- Pallet Types
- Every product type including case,bag,tray,etc.
- Automation level
- PLC / SCADA controlled
- Batch vs. continuous operation
- Inline Continuous
- Changeover time
- Minimal due to modular design
- Cleaning method
- Manual and automated cleaning features
- Energy efficiency
- Optimized through modular and flexible design
- Induction and load exit orientation
- Customizable per requirement
- Patented US
- 9,896,229 and 10,604,284
- Safety standard
- Category 3 safety cage design
- Machine footprint
- 80" x 80" to 190" x 142"
- Infeed Height
- 108" to 144"
- Maximum load height
- 108"
- Minimum Load Height
- 72"
- Maximum Layer Dimension
- 50"
- Minimum Layer Dimension
- 38"
- Minimum Case Dimension
- 4.5"
- Maximum Case Dimension
- 29"
- Maximum Case Weight
- 300 lbs
- Maximum layer weight
- 1000 lbs
- Supporting framework
- Category 3 safety cage
- Control Panel Type
- HMI touch screen
- Induction and Load Exit Orientation
- Customizable
- Modular Design
- Yes,shared functional modules
- Sheet Inserter Configuration
- High infeed,mezzanine level
- Multiple Palletizer Shuttle
- Automated shuttle for multiple palletizers
- Conveyance and Control System
- EuroDrive gear motors with VFD mode
- Safety Controls
- Category 3 safety cage with redundant protocols
- High Infeed Case Palletizer Model Groups
- Shared functional modules and frame systems
- Sheet Bin Configuration
- Manual load with optional lift
- Software
- EasyStack® Software,up to 99 pallet patterns
- Concurrent Stretch Wrapping Option
- Available
- Product Handling Features
- Perfect Pattern Induction
