High impact mixer for powders and liquids

Achieve highly homogeneous mixtures with precision. This high impact mixer excels in blending challenging combinations of powders and liquids, crucial for producing consistent and quality end products in continuous production environments.

Mixes and Agglomerates Powders and Liquids Continuously

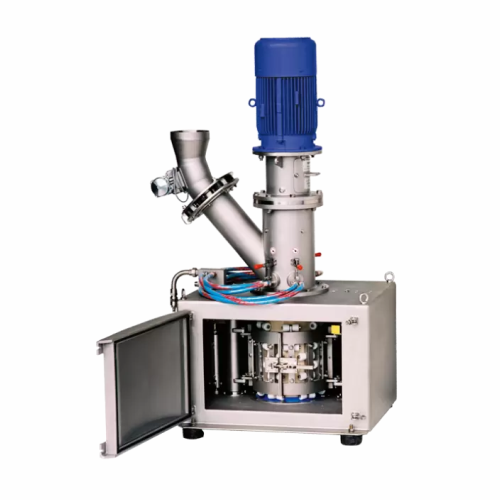

The Flexomix from Hosokawa Micron is a distinctive continuous vertical mixer and agglomerator that excels in creating homogeneous mixtures of powders and liquids. Its unique design features a vertical cylindrical chamber with a high-speed rotating shaft, achieving turbulent mixing for self-cleaning efficiency. Equipped for simultaneous high liquid loads, it supports complex agglomeration and mixing applications, such as starch modification, the formation of detergent granules, and lithium-ion battery cathode powders. Capable of processing 50 kg/hr to 40 t/hr, it integrates seamlessly into existing production lines and new installations. The Flexomix offers robust automation with precise control systems, optimizing energy use with variable-speed motors. Designed for a broad range of industries, from pharmaceuticals to energy sectors, it meets various compliance requirements, and customization options are supported through collaborative engineering with Hosokawa Micron’s experienced team.

Benefits

  • Ensures high product consistency with precise mixing and agglomeration capabilities.
  • Minimizes operational costs through self-cleaning design, reducing maintenance needs.
  • Enhances process efficiency by integrating smoothly into existing production lines.
  • Accommodates various material types, improving versatility across diverse applications.
  • Optimizes energy usage with adjustable motor speeds, lowering overall consumption.

General


Applications
Detergent powders,Recovered carbon black,Phosphates,Feed additives,Veterinary antibiotics,Drinking chocolate,Crop protection agents,Pesticides,Starch,Super absorbent polymers,Filter cakes,Fine powders,Nuclear applications
End products
Lithium-ion battery cathode powder,Ampicillin granules,Instant hot chocolate mix,Activated carbon powder,Sodium polyacrylate granules,Glyphosate granules,Modified corn starch,Diammonium phosphate granules,Conductive carbon black,Laundry detergent granules,Bifenthrin granules,Amino acid supplements,Uranium dioxide powder
Steps before
Grinding,Pulverizing,Drying,Size Reduction
Steps after
Packing,Tablet Pressing,Coating,Sterilization
Input ingredients
powders,liquids,starch,veterinary antibiotics,pesticide formulae,fine powders,phosphates,detergent ingredients,filter cakes,drinking chocolate components,cross-linking agents,super absorbent polymers,humidifying agents
Output ingredients
homogeneous powder mixtures,agglomerated veterinary antibiotics,agglomerated pesticide granules,compacted fine powders,hydrated phosphates,detergent powders,finished filter cakes,instantized drinking chocolate,agglomerated super absorbent polymers,humidified extrudables
Market info
Hosokawa Micron is renowned for specializing in the manufacturing of powder and particle processing technologies, including mixing, drying, and milling equipment. They are respected for their innovative solutions and engineering excellence in industrial engineered-to-order equipment markets.

Technical Specifications


Mixing speed
High rotation speed
Mixing chamber design
Vertical cylindrical
Rotation mechanism
Vertical rotating shaft
Mixing accuracy
Very high
Capacity
50 kg/hr to 40 t/hr
Residence time
Instantaneous mixing (< 1 second)
Self cleaning
Flexible mixing chamber
Liquid addition capability
High liquid loads possible
Model Length
520–1270 mm
Model Width
620–1100 mm
Model Height
1265–2910 mm
Model Capacity
100 kg/h to 40,000 kg/h
Motor power
7.5–75 kW
Continuous process
Yes

Operating Characteristics


Mixing type
Continuous
Automation level
PLC-controlled
Residence time
< 1 second
Mixing chamber cleaning
Self-cleaning
Knife speed control
High speed rotation
Liquid incorporation
Simultaneous addition
Mixing accuracy
Very high
Liquid load capacity
High

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Agglomeration capability
Wet agglomeration

Physical Characteristics


Vertical Chamber
Yes
Vertical Rotating Shaft
Yes
Length
520–1270 mm
Width
620–1100 mm
Height incl. motor
1265–2910 mm
Feed/discharge method
Top inlet
Compact design
Yes

Custom Options


Compact design
50 kg/hr to 40 t/hr
Continuity of process
Continuous / Low maintenance
Self-cleaning capability
Yes
Control of liquid addition
Simultaneous / High liquid load
Integration with existing systems
Customizable through design services
