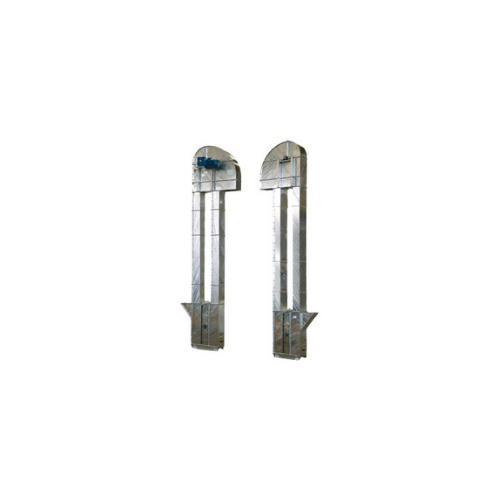

High capacity vertical conveying for grains and cereals

Ensure efficient vertical transport of bulk materials like cereals and grain with robust bucket elevator technology, tailored for operations that demand ATEX compliance and high throughput.

Elevates and Conveys Grains and Cereal Products

The EC-Type Bucket Elevators from WAMGROUP specialize in the efficient vertical elevation of cereals and similar materials, catering to industries such as flour milling, rice milling, and animal feed production. Designed with compliance to the European Explosion Protection Directive (ATEX), they ensure safe operation in hazardous environments. This equipment utilizes a robust system of antistatic, oil-repellent, and self-extinguishing belts, with buckets crafted from high-density polyethylene (HDPE), providing superior conveying efficiency for up to 1,600 m³/h throughput and discharge heights reaching 44 meters. Integrating seamlessly into existing processes, these elevators boast features like hot-dip galvanization for longevity, direct gear motors for reliability, and sensors for rotation and belt misalignment. For enhanced customization, a version made entirely of stainless steel is available, ensuring corrosion resistance and adaptability to specific process needs.

Benefits

  • Achieves high conveying efficiency, minimizing processing time and maximizing throughput.
  • Enhances safety in hazardous environments with ATEX compliance.
  • Reduces maintenance with a self-cleaning foot design and robust construction.
  • Customizable materials ensure compatibility with corrosive materials.
  • Offers reliable, precise operation with integrated sensors for rotation and belt alignment.

General


Applications
Animal feed,Pasta,Grain,Noodles,Cereals,Flour,Rice,Brewing ingredients
End products
Muesli base flakes,Spaghetti,Cornflakes,Lager malt,Pasta noodles,Wheat flour,Cat food,Rice flour,Granola,Animal feed pellets,Ale hops,Dog food
Steps before
Harvesting,Cleaning,Sorting,Drying
Steps after
Storage,Packaging,Distribution
Input ingredients
cereals,dry materials,powdery materials,non-abrasive materials,non-packing materials,particle size up to 13 mm
Output ingredients
elevated cereals,elevated dry materials,discharged materials,centrifugally discharged materials
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Surface treatment
Hot dip galvanized
Throughput
Up to 1,600 m³/h (942 cfm)
Discharge height
Up to 44 metres (144 ft)
Bucket material
High-density polyethylene (HDPE)
Belt type
Antistatic,oil-repellent,self-extinguishing
Sensor type
Rotation and belt misalignment sensors
Compliance
ATEX II 3D T4-compliant

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
CIP 121°C / SIP 135°C
Cleaning method
CIP / Manual
Energy efficiency
0.5–2 kWh/kg moisture

Material Compatibility


Abrasion resistance
Non-abrasive materials compatible
Biological compatibility
Not applicable
Cleanability
Easy to clean,self-cleaning foot
Density/particle size
Up to 13 mm particle size
Corrosive resistance (e.g. acids)
Limited due to galvanized steel


ATEX certification
II 3D T4-compliant

Physical Characteristics


Belt and bucket design
Antistatic,oil-repellent,self-extinguishing belts with HDPE buckets
Surface treatment
Hot dip galvanized
Customizability
Version completely in stainless steel on request
Foot section
Self-cleaning
Height
Discharge height up to 44 metres (144 ft)
Throughput rate
Up to 1,600 m3/h (942 cfm)
Sensor features
Anti-skid belt sensors,rotation,and control sensors
Material compatibility
Non-abrasive,non-packing materials up to 13 mm particle size

Custom Options


Belt Material
Antistatic,Oil-repellent,Self-extinguishing
Bucket Material
High-density Polyethylene (HDPE)
Surface Treatment
Hot Dip Galvanized
Compliance
ATEX II 3D T4-compliant
Material Finish
Completely Stainless Steel (on request)
