High-capacity tubular screw conveyor for grain transport

Optimize your production flow with a robust solution that ensures precise dosing and efficient handling of raw materials, tailored for high-speed operations in continuous processes.

Discharges and Doses Grain and Feed Materials

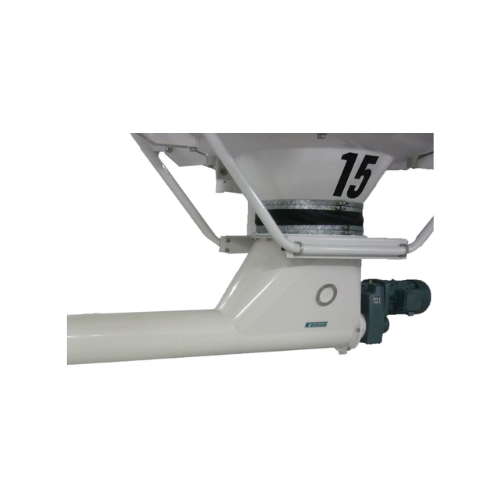

The Tubular Screw Conveyor MNSH from the Bühler Group is engineered to efficiently manage raw material flow in your processing line. This conveyor excels in discharging and dosing grains and feed components across various industries such as animal feed production, brewing, and coffee processing. With a high-capacity inlet and progressive spindle design, it can handle substantial throughputs, ensuring a constant discharge rate facilitated by its frequency converter and optional agitator. Built for high sanitation and food safety, the MNSH features a fully welded, closed housing that separates bearings from product flow, minimizing contamination risks. Its construction simplifies maintenance, with external bearing access to reduce downtime. Compatible with continuous, high-speed operations, this conveyor supports hassle-free integration, improving operational efficiency for compound livestock feed, barley grist, wheat flour, and other end-products.

Benefits

  • Enhances production efficiency with high-capacity discharging and dosing.
  • Maintains product quality by ensuring sanitary and contamination-free operation.
  • Simplifies maintenance with easy access to external bearings, reducing downtime.
  • Ensures consistent output with a frequency converter for stable discharge rates.
  • Integrates seamlessly into high-speed operations for optimized workflow.

General


Applications
Animal feed,Grain handling,Brewing,Coffee,Wheat and grain,Rice and paddy
End products
Jasmine rice,Pale malt,Layer feed,Wheat flour,Barley grist,Arabica coffee grounds,Compound livestock feed
Steps before
Storage,Raw material reception,Pre-cleaning,Dehulling,Conditioning
Steps after
Milling,Grinding,Sifting,Packing,Palletizing
Input ingredients
raw material,grain,animal feed,wheat,rice,paddy
Output ingredients
discharged material,processed grain,processed animal feed
Market info
Buhler is renowned for manufacturing advanced process solutions for food, feed, and advanced materials. They are highly regarded for their innovation in milling technology and equipment quality.

Technical Specifications


Capacity
High-capacity inlet
Discharge Rate
Constant with frequency converter
Length
3 meters
Dosing Accuracy
Accurate dosing capability
Maintenance
Low maintenance design
Material Handling
Raw material
Sanitation
High sanitation design
Spindle Type
Progressive spindle

Operating Characteristics


High Flow Rate
Elevated throughputs
Sanitation and Food Safety
Closed housing,separated bearings
Low Maintenance
Outside installed bearings
Discharge,Dosing Accuracy
Frequency converter for constant discharge rate
Automation Level
Manual / Frequency converter assisted
Agitator Option
Optional agitator at outlet

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


3A Sanitary Standards
Designed for high sanitation
GMP Compliance
Yes
FDA compliance
Yes
ATEX certification
N/A
CE marking
Yes
EHEDG certification
Yes
FDA materials
Food safe materials

Physical Characteristics


Feed/discharge method
High-capacity inlet / Progressive spindle
Conveyor length
3 meters
Construction
Completely welded
Cleaning features
Closed housing

Custom Options


Control panel type
Frequency converter available
Integration possibilities
Optional agitator at outlet
Discharge method
High-capacity inlet and progressive spindle
Customization Features
Installation of bearings outside product chamber
