High-capacity ring-die pellet mill for animal feed production

Optimize your high-capacity feed production with this pellet mill, designed to handle multiple feed formulations efficiently while maximizing energy transfer for reduced operational costs.

Processes High-Volume Feed and Biomass Pellets

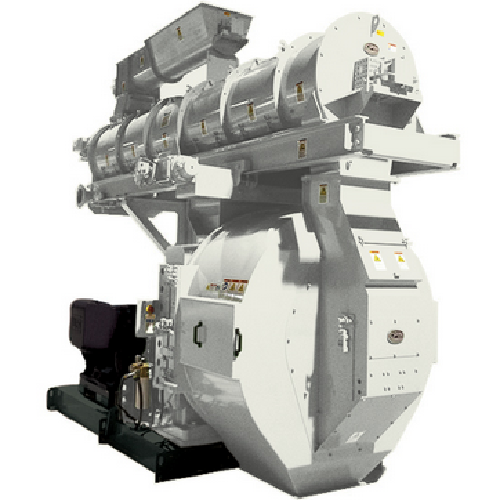

The Pellet Mill 9950-14 from CPM is engineered for high-capacity applications across animal feed and biomass production. Featuring the largest ring-die design worldwide, it maximizes throughput for products like poultry starter feed, wood pellets, and soybean meal. This model employs a positive direct gear drive for 98% efficient energy transfer and simplifies maintenance with metal-to-metal seals and a stand-alone oil lubrication system. Its robust 800 horsepower, 1200 RPM motor ensures reliable operation, while multi-positioning feeders aid seamless integration into existing production lines. Customizable options like Lineator remote roller adjustment and roll speed measurement further enhance its adaptability. Made from stainless steel, it is built to withstand the demanding conditions of industries such as ethanolic processing and pet food manufacturing, ensuring longevity with minimal downtime.

Benefits

  • Enhances production efficiency with high-capacity output and consistent pellet quality.
  • Lowers operational costs through 98% energy transfer efficiency, reducing power consumption.
  • Streamlines integration into existing systems with flexible feeder positioning and remote roller adjustment options.
  • Minimizes maintenance with a durable design featuring stainless steel construction and advanced sealing.
  • Increases versatility across multiple industries, accommodating diverse feed and biomass applications.

General


Applications
Aquaculture,Animal feed,Ethanol,Turkey feed,Pet food,Swine feed,Pelleted feeds,Hemp,Oilseed processing,Hops,Rendering,Biomass,Broiler feed
End products
Hemp pellets,Wood pellets,Meat and bone meal,Kibble,Poultry starter feed,Grow-finish swine feed,Turkey grower feed,Ethanol production pellets,Hop pellets,Fish feed pellets,Soybean meal
Steps before
Grinding,Conditioning
Steps after
Cooling,Crumbling,Packaging
Input ingredients
swine feed,turkey feed,broiler feed
Output ingredients
pellets
Market info
CPM is known for manufacturing high-quality process equipment and technology solutions for the industrial and agricultural sectors, specializing in particle size reduction, conditioning, and pelleting solutions with a strong reputation for reliability and innovation.

Technical Specifications


Die area
2,200 square inches (14,190 cm²)
Motor power
800 horsepower (600 kW)
Motor speed
1200 RPM
Energy transfer efficiency
98%
Feed type
Integrated swine,turkey,and broiler feeds
Drive type
Positive direct gear drive
Roller adjustment
Lineator remote roller adjustment (optional)
Roll speed measurement
Available (optional)
Lubrication system
Stand-alone oil lubrication system
Pellet chamber
Stainless steel

Operating Characteristics


Working Mechanism
Positive direct gear drive
Integrated Steps
Multi-positioning feeder for installment and alignment
Automation level
Manual / Lineator remote roller adjustment
Changeover time
Quick due to universal hinge pellet chamber
Energy efficiency
98% energy transfer

Material Compatibility


Abrasion resistance
High
Corrosive resistance (e.g. acids)
Stainless steel construction
Biological compatibility
Animal feed and food-grade applications
Density/particle size
Suitable for various feed types
Cleanability
Easy to clean design

Physical Characteristics


Pellet chamber size
2,200 square inches (14,190 cm²) of die area
Motor size
800 horsepower (600 kW),1200 RPM
Die configuration
Ring-die

Custom Options


Control panel type
MM4 Automation System
Roller adjustment
Lineator remote roller adjustment
Roll speed measurement
Roll speed measurement (RSM)
Automatic lubrication
Automatic grease system
