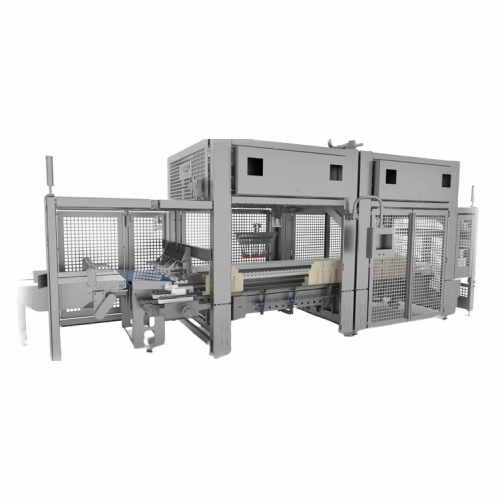

High-capacity ice cream cartonizing solution

Effortlessly handle complex ice cream production with a cartonizing solution capable of managing multi-flavor packaging, reducing waste, and optimizing floor space—all while maintaining high-speed, continuous operation.

Cartonizes Multi-Flavor Ice Cream Products

The GCS Ice Cream Cartonizing Machine from Gram Equipment is engineered to cater to the dynamic needs of the ice cream production industry. Specializing in high-speed packing, this machine streamlines the handling of multi-flavor ice cream bars, sticks, and layered products. With a processing capacity of up to 780 products per minute, it efficiently supports continuous operations in food processing environments. This equipment seamlessly integrates into your production line and is designed for flexibility and adaptability in packaging patterns and carton sizes. Its advanced automation, featuring PLC control and Delta robots, ensures precise flavor variation management while minimizing waste. Built with robust materials, the GCS machine offers reliable performance under the rigors of industrial settings, complete with maintenance features like easy-access components and optional vacuum monitoring. For ice cream manufacturers seeking efficient, customizable solutions, the GCS represents a powerful addition to your packaging lineup.

Benefits

  • Increases production efficiency with a capacity of up to 780 products per minute.
  • Enhances flexibility with customizable carton sizes and pack patterns.
  • Reduces waste through precise flavor management and integrated balance systems.
  • Saves space with a compact footprint and multi-pick feature reducing the number of robots.
  • Supports diverse ice cream variations, ensuring broad market adaptability.

General


Applications
Ice cream products
End products
Mixed flavor ice cream packs,Multi-flavor ice cream layers,Ice cream sticks,Ice cream bars,Assorted ice cream cartons,Almond-topped ice cream
Steps before
Ingredient selection,Mixing,Freezing,Extrusion,Molding
Steps after
Labeling,Shipping,Distribution
Input ingredients
ice cream,product flavours,flat stick,upright stick,flavour A,B,C,D
Output ingredients
cartons,pack sizes,pack patterns,filled boxes,shipping size cartons,multi-flavored cartons
Market info
Gram Equipment is known for manufacturing innovative industrial ETO equipment for the ice cream industry, offering advanced technology solutions and a strong reputation for high-quality, reliable machinery tailored to customer needs.

Technical Specifications


Capacity
Up to 780 pcs/min
Additional Capacity for Rework
Plus 10% capacity
Flavour Variety Per Layer
Up to 4 different product flavours
Automation
Integrated with production line
Pack Flexibility
Full flexibility in pack sizes and patterns
Box Size Flexibility
Fully flexible box sizes and counts
SKU Production
Production of 2 SKU’s simultaneously
Performance Efficiency
99++%
Robotics
Delta robots as buffer
Carton Conveyor Control
Double servo chain
Compression Packing
Complete compressed layer
Flavor Balancing
Prevents waste
Pack Patterns
Configurable 2 to 6 products per layer
Product Detection
Product missing detection in gripper head

Operating Characteristics


Batch vs. continuous operation
Inline Continuous
Automation level
PLC / SCADA
Changeover time
Quick changeover for multiple flavors
Cleaning method
Manual / CIP options available
Energy efficiency
High performance with low waste
Integration capability
True integration with production line
Flexibility in operation
Handles multiple SKUs and flavors

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product flavors per layer
Up to 4
Ice cream product types
Stick,Cup,Cone
Pack pattern flexibility
Full flexibility in layout
Flavor mixing capability
Multi-flavor
Box size range
Single to shipping cartons
Carton style
Top-load,Side-load

Physical Characteristics


Compact footprint
Smallest footprint and full flexibility in layout
Discharge method
Carton conveyor with double servo chain
Control panel type
Customer configurable pack patterns through software interface
Loading method
Top-load and side-load box options
Box size compatibility
Fully flexible box sizes and counts,ranging from single carton to shipping size cartons

Custom Options


Control panel type
Advanced HMI
Integration possibilities
Full production line integration
Box sizes
Fully flexible
Pack patterns
Customer configurable
Flavor configuration
Mix up to 4 different flavors
Robot pick head configuration
Configurable for 2-6 products per layer
Box loading method
Top-load and side-load options
Recipe changeover
Quick change recipe over box sizes
Vacuum monitoring
Optional for robots' pick heads
Footprint
Smallest footprint possible
