Heatsealable double-chamber tea bag packaging system
Achieve unmatched speed and versatility in tea bag production, delivering up to 600 heatsealed, double-chamber bags per minute. Optimize your packaging process with the only machine capable of producing naked bags, crimped, and heatsealed envelopes seamlessly in one operation.
Packages and Cartons Tea Bags Efficiently

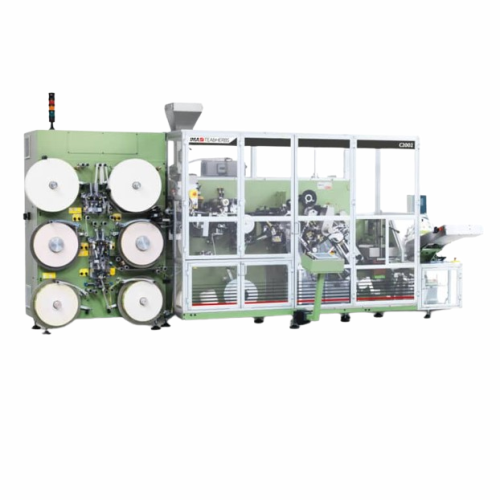

The C2002 from IMA Group is a high-speed tea bag packaging machine designed to revolutionize production for tea and beverage industries. This machine is unique for its capacity to handle up to 600 heatsealed, double-chamber tea bags per minute, featuring a special adhesive paper system that secures the string and tag without aluminum staples. It efficiently processes a range of products from black tea to herbal infusion sachets, adapting quickly to packaging in naked bags, crimped, and heatsealed envelopes. The C2002 seamlessly integrates with production lines, offering fully automated cartoning solutions with minimal downtime through its advanced automatic splicing system and single bag rejection capability. Operating at a total installed power of 23 kW and equipped with an integrated PC for cycle logic and quality control, the machine ensures optimal energy use and performance. Designed for easy maintenance and equipped for continuous, high-speed operation, the C2002 provides the scalability and flexibility essential for competitive tea and beverage manufacturing.
Benefits
- Achieves high-speed production with up to 600 bags per minute, enhancing overall output efficiency.
- Facilitates seamless packaging transitions with rapid changeover adaptability, minimizing downtime.
- Eliminates the need for aluminum staples, ensuring environmentally friendly packaging.
- Enhances product quality control with integrated rejection of defective bags, reducing waste.
- Offers flexible packaging solutions for multiple bag types on a single platform, optimizing operational versatility.
- Applications
- Tea,Herbal infusions,Beverage packaging
- End products
- Green tea bags,Black tea bags,Lemongrass herbal bags,Loose leaf tea sachets,Rooibos tea bags,Herbal infusion sachets,Chamomile tea bags,Peppermint tea bags,Organic tea bags,Ginger tea bags,Fruit-flavored tea bags
- Steps before
- Tea leaf drying,Tea leaf blending,Ingredient weighing,Batch preparation
- Steps after
- Cartoning,Palletizing,Quality control,Warehousing
- Input ingredients
- filter paper,string,tag,carton blanks
- Output ingredients
- heatsealed double-chamber tea bags,crimped envelopes,naked tea bags,heatsealed envelopes,cartons
- Market info
- IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.
- Machine speed
- Up to 600 bags/minute
- Tea bag capacity
- Up to approximately 3.0 grams
- Filter bag maximum volume
- 9.0 cubic centimeters
- Total installed power
- 23 kW
- Maximum power consumption
- 18.8 kW
- Duty pressure
- 6 bar
- Air consumption
- Max 750 Nl/min
- Machine net weight
- Max 6,000 Kg
- Automation level
- PLC / Integrated PC
- Batch vs. continuous operation
- Continuous
- Changeover time
- Quick and easy
- Cleaning method
- Manual
- Energy efficiency
- Optimized with non-stop processing capabilities
- Integrated steps
- Cartoning,splicing,weight control
- Working mechanism
- Heatsealed,crimped and naked bag processing
- Heat resistance
- Suitable for heatsealed bags
- String and tag compatibility
- Non-metallic components
- Staple avoidance
- No aluminium staples used
- Paper compatibility
- Crimped and heatsealed envelopes
- High-speed processing
- Up to 600 bags/min
- Naked bag processing
- Compatible
- Bag type
- Naked,crimped,heatsealed
- Machine net weight
- Max. 6,000 Kg
- Control panel type
- Integrated PC for working cycle logic and quality control
- Discharge method
- Naked bags,crimped and heatsealed envelopes
- Control panel type
- Integrated PC for working cycle logic and quality control
- Integration possibilities
- Fully integrated cartoning solutions with variety of carton styles and sizes
- Packaging configuration adaptability
- Quick and easy configuration for different packaging types
- Bag type production
- Naked bags,crimped envelopes,and heatsealed envelopes
- Changeover time
- Quick size changeover
