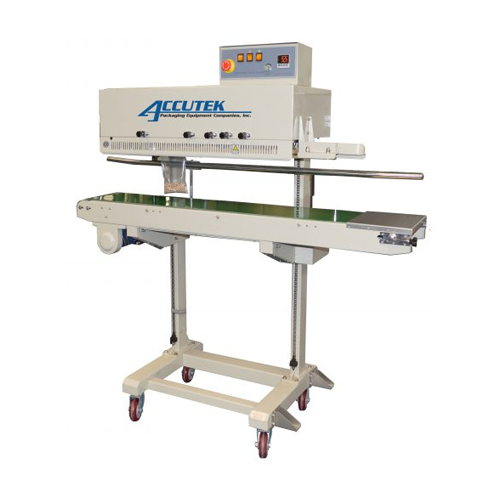

Heat sealer for thermoplastic bags

Ensure airtight seals on thermoplastic bags with precise temperature control and adjustable speed, ideal for continuous packaging of diverse products in various forms, enhancing efficiency and product quality.

Seals Thermoplastic Bags Efficiently

The Accutek Band Sealer is engineered to streamline your packaging operations across various industries, including food, medical, chemical, cosmetic, and electronics. This band sealer specializes in creating consistent, clean seals on a variety of thermoplastic materials such as PP, PE, and moisture barrier bags using durable PTFE bands. Designed for continuous operation, it features electronic temperature controllers and variable speed conveyors, allowing seamless integration in your production line. The vertical configuration is particularly beneficial for sealing stand-up pouches containing liquid, granules, or powder products. Equipped with a stainless steel construction, the sealer is robust and easy to maintain, while its PID digital temperature controller ensures precise heat management, ranging from 0 to 300 degrees Centigrade. With a sealing speed of up to 32.81 ft/min and a wide seal width of 8mm, the machine ensures airtight seals suitable for demanding applications. Optional built-in printer and lockable casters offer added flexibility and mobility, making it versatile for various packaging needs.

Benefits

  • Enhances packaging efficiency with consistent, reliable seals for a wide range of products.
  • Minimizes operator intervention and training time due to simple, user-friendly interface.
  • Increases production flexibility with adjustable speed and temperature controls.
  • Facilitates quick product changes and machine repositioning with easy mobility.
  • Ensures airtight seals critical for product integrity and shelf life preservation.

General


Applications
Food,Cosmetic,Chemical,Medical,Electronics
End products
Chemical powder bags,Cosmetic sachets,Snack pouches,Electronic component pouches,Medical device bags
Steps before
Filling,Product sorting,Weighing,Inspection
Steps after
Quality checking,Labeling,Packing,Distribution
Input ingredients
thermoplastic materials,PP,PE,stand up pouches,gusseted bags,moisture barrier bags,granular products,powder products,liquid products
Output ingredients
sealed bags,clean seals,airtight seals
Market info
Accutek is known for manufacturing high-quality engineered-to-order (ETO) equipment, specializing in custom automation and packaging solutions. They are reputed for their innovation, reliability, and ability to meet complex industrial needs.

Technical Specifications


Voltage
110 V 60Hz
Motor power
245 W
Sealing power
300x2W
Sealing speed
0 – 32.81 ft/min [0 – 10 m/min]
Sealing width
.39 in [10 mm]
Temperature control range
0 – 572 º F [0 – 300º C]
Distance from sealing center to conveyor table
3.94 – 27.6 in [100-700mm]
Size of conveyor table
55.12 x 9.8 in [1400 x 250 mm]
Thickness of film (monolayer)
≤ .005 in [0.12 mm]
Conveyor loading for single package
≤ 11lbs [5 kg]
Overall loading of conveyor
≤ 33 lbs [15 kg]
External dimensions (LxWxH)
57.1 [1450] x 26.8 [680] x 58.3 [1480] in[mm]
Net weight
300 lbs [136 kg]

Operating Characteristics


Automation level
Manual / PLC
Batch vs. continuous operation
Inline Continuous
Changeover time
Minimal
Cleaning method
Manual

Material Compatibility


Thermoplastic compatibility
PP,PE,Stand up pouches,Gusseted bags,Moisture barrier bags

Physical Characteristics


Machine footprint
57.1 x 26.8 x 58.3 in [1450 x 680 x 1480 mm]
Machine weight
300 lbs [136 kg]
Conveyor Table Size
55.12 x 9.8 in [1400 x 250 mm]
Sealing width
.39 in [10 mm]
Conveyor loading for single package
≤ 11lbs [5 kg]
Overall loading of conveyor
≤ 33 lbs [15 kg]
Distance from sealing center to conveyor table
3.94 – 27.6 in [100-700mm]

Custom Options


Temperature Control
0 – 300°C
Seal Width
8mm
Seal Speed
0 – 32.81 ft/min [0 – 10 m/min]
Sealing Belt Type
PTFE
Conveyor System
Variable Speed
Optional Printer
Yes
