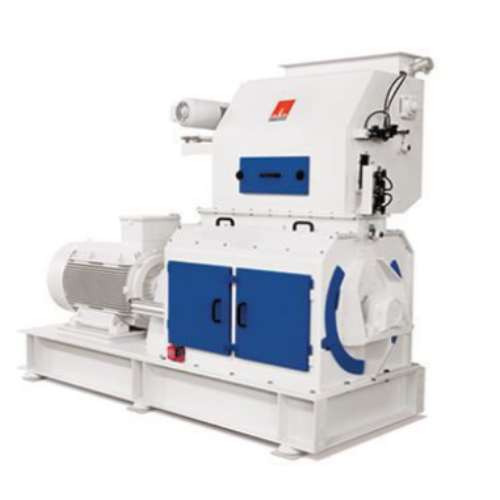

Hammer mill for efficient particle size reduction in feed mills

Optimize your feed milling operations with this hammer mill, designed to deliver high-speed, continuous grinding and milling for consistent particle size reduction, enhancing efficiency and throughput in your processing line.

Processes and Grinds Solid Granules Efficiently

The Hammer Mills 670 by Ottevanger Milling Engineers represent a pinnacle in industrial milling efficiency, designed for feed mill operators and agricultural processors. These mills are engineered for a dual direction rotation feature, significantly enhancing grinding precision and machine longevity. Equipped with electro-pneumatic product guide valves and cast iron rupture discs, they ensure operational safety and consistent performance. The mills cater to applications across compound feed, aqua feed, and grain processing by effectively reducing particle size to approximately 200 microns, thus ensuring optimal product texture and quality.

With various configuration options, the Hammer Mills 670 can process diverse inputs such as solid granules and powders with a throughput of up to 35 tons per hour for barley and maize. These machines incorporate an automatic, frequency-controlled vibratory feeder ensuring uniform granulate distribution and high-efficiency milling. The robust construction includes a fully enclosed roll feeder with self-cleaning magnet systems, offering seamless integration into existing lines while maintaining operational efficiency.

Ottevanger has designed these mills with energy efficiency in mind, implementing innovations like a precisely balanced rotor that reduces energy consumption during high-speed operations. Maintenance is streamlined with large inspection doors and the Quick Hammer Exchange system, facilitating ease of access and minimal downtime. Custom engineering support ensures the Hammer Mills 670 can be tailored to specific production needs, making it a versatile addition across animal feed, grain processing, and oilseed processing industries.

Benefits

  • Enhances product quality by achieving consistent granule sizes of approximately 200 microns.
  • Increases operational safety with electro-pneumatic valves and cast iron rupture discs.
  • Reduces downtime with Quick Hammer Exchange and large inspection doors for easy maintenance.
  • Optimizes feed distribution and reduces energy costs with automatic, frequency-controlled feeders.
  • Ensures high throughput with up to 35 tons per hour capacity for efficient production.

General


Applications
Pet food,Oilseed processing,Soybean processing,Aqua feed,Concentrates,Premix,Compound feed
End products
Steps before
Product intake,Cleaning,Pre-cleaning,Dosing,Weighing
Steps after
Sieving,Pelleting,Mixing,Conditioning,Drying,Cooling
Input ingredients
maize,barley,granulate
Output ingredients
particle size approx. 200 micron
Market info
Ottevanger Milling Engineers is renowned for designing and manufacturing innovative milling equipment and complete production lines for the grain processing industry, including feed mills, flour mills, and biomass processing, with a reputation for quality, efficiency, and customized solutions.

Technical Specifications


Rotation Speed
Dual direction of rotation
Particle Size Reduction
Approx. 200 micron
Motor Power
110 – 250 kW
Screen Surface
0.92 – 1.415 m²
Capacity (Maize)
15 – 35 t/h
Capacity (Barley)
9 – 18 t/h
Automation
Electro-pneumatic operated valves
Milling Efficiency
Very high efficiency rate
Construction
Solid all-welded construction
Weight (excl. Motor)
1700 – 2700 kg
Feeder Type
Automatic frequency-controlled vibratory feeder

Operating Characteristics


Dual direction of rotation
Yes
Electro-pneumatic operation
Yes
Automation level
Automatic
Vibratory feeder with magnet
Yes
Feeder type
Roll-feeder
Stone catcher inclusion
Yes
Frequency-controlled feeder
Automatic
Particle size reduction
Approx. 200 micron
Efficiency
High
Inspection doors
Yes
Built on heavy base frame
Yes
Rotor balancing
Precisely balanced
Material discharge
Immediate
Shock absorption
Incl. with base frame

Material Compatibility


Abrasion resistance
High
Biological compatibility
N/A
Cleanability
Easy to clean
Corrosive resistance (e.g. acids)
High
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine Footprint
Compact Design
Construction Material
Solid All-Welded
Rotation Direction
Dual Direction
Feed/Discharge Method
Closed Vibratory Feeder
Feeder Type
Roll Feeder with Stone Catcher
Inspection Access
Large Inspection Doors
Base Frame
Heavy Base Frame with Shock Absorbers

Custom Options


Rotation Direction
Dual direction
Feeder Type
Electro-pneumatic with self-cleaning magnet
Control Options
Automatic frequency-controlled vibratory feeder
