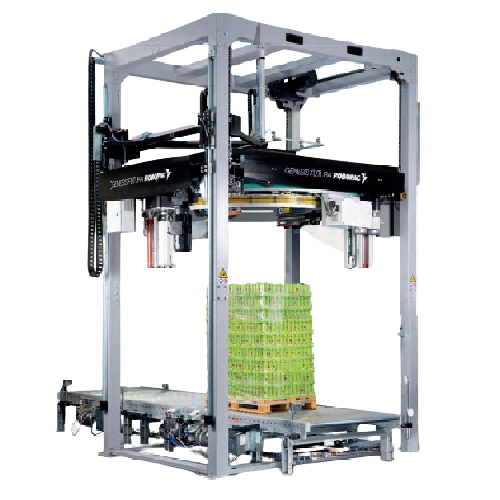

Fully automatic rotary ring wrapper

Achieve superior load stability and efficiency with this rotary ring technology, ideal for applications that require consistent wrapping precision while minimizing film usage, reducing costs, and supporting high throughput in demanding production environments.

Wraps and Stabilizes Palletized Loads

The GENESIS FUTURA HS from OCME is a medium-speed rotary ring stretch wrapper engineered for seamless integration into packaging lines across various industries, including beverage, food, and personal care. This fully automatic system excels in wrapping and stabilizing palletized loads with its SCF Fixed Pre-Stretch Carriage, offering film pre-stretching capabilities up to 350% to optimize film usage and reduce costs. Equipped with Cube Technology™, it guarantees precise film application and customizable containment force, enhancing load security.

Ideal for end products such as soda bottles, tissue rolls, and motor oil containers, the GENESIS FUTURA HS allows flexibility in wrapping cycle initiation and completion at any point around the load. With an output capacity of up to 110 packs per hour, it supports high-volume operations. The modular design permits easy upgrades, ensuring scalability as operational needs evolve. Integrated remote monitoring through RCONNECT enhances your ability to oversee and optimize line performance in real-time. With energy-efficient components and a dynamic parachute for safety, the GENESIS FUTURA HS offers longevity and dependable performance for demanding production environments.

Benefits

  • Enhances load security with precise film application and customizable containment force.
  • Reduces operational costs through efficient film usage and minimized waste.
  • Supports high-volume production with an output capacity of up to 110 packs per hour.
  • Facilitates easy future upgrades with its modular design.
  • Improves performance monitoring and efficiency with integrated remote access.

General


Applications
Food,Personal care,Beverage,Tissue,Lubricants,Paper,Corrugated,Home
End products
Snack bags,Juice cartons,Corrugated boxes,Soda bottles,Paper towels,Grease cartridges,Motor oil containers,Tissue rolls,Soap bars,Shampoo bottles,Frozen food packages
Steps before
Product Loading,Palletizing,Initial Film Preparation
Steps after
Load Unloading,Handling,Storage,Shipping
Input ingredients
pallets,stretch film,wooden pallets
Output ingredients
wrapped pallets,secured loads,stable pallet loads
Market info
OCME, part of Aetna Group Italy, is renowned for manufacturing innovative, high-quality packaging and material handling solutions, including filling, palletizing, and conveying systems, with a strong reputation for reliability and technological advancement in industrial sectors.

Technical Specifications


Output Capacity
Up to 110 P/H
Wrapping Speed
Medium Speed
Automation
Fully automatic
Compression Force
Variable up to 400%
Film Pre-Stretch
150%-400%
Pallet Dimensions
400x600 - 1220x1220 mm
Maximum Pallet Height
2000 mm
Power Supply
400-415V,50Hz
Optional Power Supply
380-480V,60Hz
Compressed Air Pressure
6 ± 1 Bar
Film Reel Height
500 mm / 750 mm optional
Max Reel Diameter
250 mm
SCV - CUBE TECHNOLOGY L.1
Variable Pre-Stretch Carriage
SCV_P - CUBE TECHNOLOGY L.2
Variable Pre-Stretch Carriage
NIP,TUCK TAIL SYSTEM
Optional
Energy Efficiency
Low consumption
Material Compatibility
Plastic film

Operating Characteristics


Automation Level
Fully Automatic
Changeover Time
Quick and Easy Setup
Batch vs. Continuous Operation
Continuous
Cleaning Method
Manual Cleaning
Energy Efficiency
Low Electricity Consumption
Wrapping Cycle Flexibility
Start and Stop at Any Position
Film Pre-stretch Ability
Fixed Values up to 350%
Dynamic Parachute System
Ring Position Locking for Safety

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Depends on configuration
Pallet dimensions
400x600 - 1220x1220 mm
Maximum pallet height
2000 mm
Control panel type
PLC-controlled
Film reel height
500 mm (optional 750 mm)
Max reel diameter
250 mm
Discharge method
Fully automatic

Custom Options


Pre-Stretch Carriage Options
Single or Double Pre-Stretch Carriage
CUBE TECHNOLOGY Levels
Level 1 or Level 2
Wrapping Cycle Flexibility
Start and Finish at Any Load Position
Pre-Stretch Range
150%-400%
Film Reel Height Options
500/20" mm or 750/30" mm
Integration Options
Rconnect for Performance Monitoring
Roping Device Options
Bottom,Top,Double Movement
Device Options
NIP,TUCK Clamp,Vertical Pressure Platen
Automatic Reel Changer Versions
ARC/1 or ARC/2
Top Covering Device Options
Inside or Outside
Pallet Lift Options
Pneumatic or Hydraulic
