Flexible endoscope washer-disinfector

Ensure precise cleaning and disinfection of complex medical instruments with a washer-disinfector that handles multiple endoscopes and surgical tools in a single cycle, minimizing cross-contamination risks and optimizing workflow efficiency.

Cleans, Disinfects, and Dries Medical Instruments

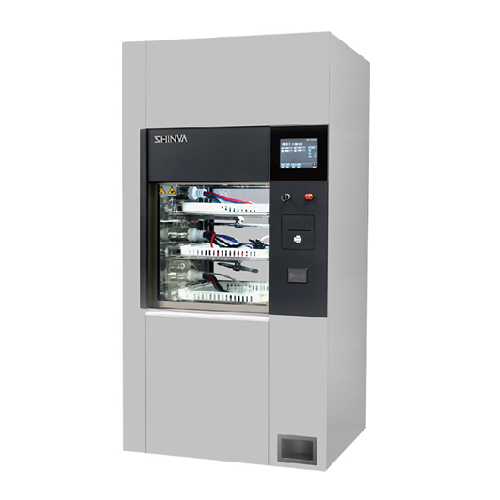

The FLOW Flexible Endoscope Washer-Disinfector from Shinva is engineered for healthcare facilities, hospitals, and surgical centers aiming to meet rigorous infection control standards. This versatile unit employs spray cleaning and internal perfusion techniques, handling up to three flexible endoscopes simultaneously with independent channel operation for thorough decontamination. Compatible with both chemical and thermal disinfection, it efficiently processes flexible bronchoscopes, laparoscopic forceps, and more. Automated controls, including high-definition touch interfaces, ensure intuitive operation and real-time monitoring, emphasizing user safety and reliability. Featuring an automatic lifting door and dual-channel design, it minimizes cross-contamination risks. The system showcases an energy-efficient thermal self-disinfection mechanism, controlled via an AO value System. With customizable voltage settings and robust materials, it supports seamless integration into diverse medical environments while ensuring compliance with healthcare standards.

Benefits

  • Enhances infection control with complete decontamination of endoscopes and instruments.
  • Minimizes cross-contamination risks with automatic door and dual-channel design.
  • Simplifies operation and monitoring with intuitive touch screen interface.
  • Optimizes energy use and environmental impact with thermal self-disinfection.
  • Adapts to various facility requirements with customizable voltage settings.

General


Applications
Minimally invasive instruments,Surgical instruments,Flexible endoscopes
End products
Colonoscopes,Flexible bronchoscopes,Cardiac endoscopes,Arthroscopic scopes,Surgical scissors,Endoscopic graspers,Retractors,Laparoscopic forceps
Steps before
Pre-cleaning,Leak testing,Manual washing
Steps after
Sterilization,Drying,Quality inspection
Input ingredients
flexible endoscopes,surgical instruments,minimally invasive instruments,soft endoscopes,water,chemical additives,disinfectant
Output ingredients
cleaned endoscopes,disinfected surgical instruments,decontaminated instruments
Market info
Shinva is known for manufacturing medical equipment, including sterilization and disinfection devices, radiotherapy products, and diagnostic imaging systems, demonstrating expertise in healthcare solutions and a strong reputation for quality in the medical industry.

Technical Specifications


Dimension (LxWxH)
700x780x1850 mm / 990x760x2020 mm
Weight
300 kg / 400 kg
Water consumption per step
15 L
Power supply
380V/50HZ
Input capacity
13.5 kVA / 18.5 kVA
Water Pressure
0.2-0.5 MPa
Water source hardness
Calcium carbonate concentration < 120 mg/L
Water source pH value
6.5-9
Drainage Type
With pump
Automation
High-definition touch screen display
Loading capacity
3 flexible endoscopes per batch
Disinfection method
Spray cleaning and internal perfusion
Self-disinfection method
Thermal self-disinfection
Monitoring System
Full pipeline flow monitoring
External Loading Method
Automatic lifting door
Chemical Compatibility
Chemical and thermal disinfection

Operating Characteristics


Working Mechanism
Spray cleaning and internal perfusion
Integrated Steps
Cleaning,disinfection,and drying
CIP Principles
Thermal and chemical disinfection
Batch vs Continuous Operation
Batch processing
Automation Level
High-definition touch screen control
Loading Method
Flexible external loading with automatic lifting door
Cross-Infection Prevention
Physical partition with double-door structure
Monitoring System
Full pipeline flow monitoring
Self-Disinfection
Thermal self-disinfection
Chemical Additive Application
Automatic,one-time use

Physical Characteristics


Machine footprint
700x780x1850 mm / 990x760x2020 mm
Weight
300 kg / 400 kg
Discharge method
With pump
Water consumption
15 L per step
Power supply
380V/50HZ
Input capacity
13.5 kVA / 18.5 kVA

Custom Options


Control panel type
High-definition touch screen
Integration possibilities
Single-door and double-door structures
Door type
Automatic lifting door
Tray type
Two-way drawing tray
