Final syrup and beverage preparation system

Optimize your beverage production with a modular system designed for flexibility, enabling seamless integration of diverse ingredients from viscous syrups to plant-based liquids, enhancing capacity without sacrificing product quality.

Mixes and Prepares Diverse Beverage Formulations

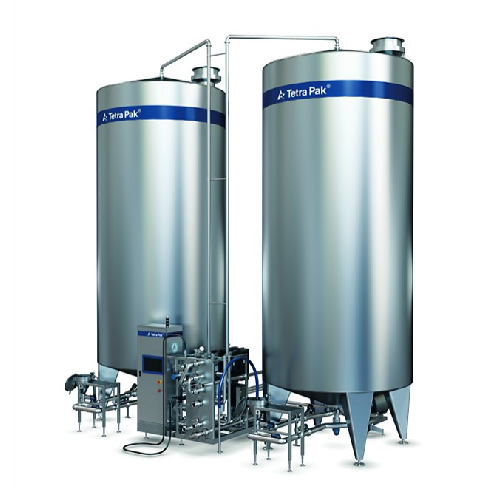

The Tetra Pak® Preparation System B-ES is engineered for beverage manufacturers aiming for precision and flexibility in their production lines. This system stands out for its modular design, allowing for seamless upgrades and capacity expansions from 2,000 to 70,000 liters per hour. The B-ES utilizes a radial jet mixer, which facilitates efficient mixing by leveraging liquid turbulence, ensuring homogeneity without the friction and heat typical of mechanical mixers. Ideal for juices, soft drinks, plant-based beverages, and syrups, it excels at handling viscosities up to 200 cP. The system incorporates a patented horizontal injector to prevent powder clumping, critical for challenging ingredients. With options like an auto mixing device and twin-stage nozzle, it reduces energy use by 60% compared to high shear pumps. Constructed with CIP capabilities, it ensures downtime is minimized while maintaining the highest hygiene standards, making it a robust solution for continuous or batch operations in food, beverage, and dairy sectors.

Benefits

  • Expands production capacity from 2,000 to 70,000 liters per hour, adapting to growing demands.
  • Enhances product consistency with a frictionless radial jet mixing process.
  • Decreases energy usage by 60% with an efficient auto mixing device for challenging ingredients.
  • Ensures seamless integration and scalability with a modular and upgradeable design.
  • Minimizes downtime and contamination risk with integrated CIP cleaning capabilities.

General


Applications
Plant-based drinks,Syrups,Still drinks,Nectars,Energy drinks,Juices,Soft drinks,Dairy drinks,Functional drinks
End products
Flavored yogurt drink,Vitamin water,Orange juice,Apple nectar,Iced tea,Maple syrup,Almond milk,Cola,Energy shot drinks
Steps before
Ingredient Preparation,Pre-mixing,Weighing Ingredients
Steps after
Filling,Packaging,Quality Control
Input ingredients
gums,stabilisers,thickeners,dry powder,viscous ingredients,fibres,pulps,sticky concentrates,soft drinks ingredients,plant-based ingredients,dairy ingredients
Output ingredients
juices,nectars,still drinks,soft drinks,energy drinks,syrups,plant-based drinks,functional drinks,dairy drinks,homogeneous mixes,final syrup
Market info
Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.

Technical Specifications


Capacity
2,000-4,000 litres/hour (batch) to 70,000 litres/hour (continuous)
Viscosity range
Up to 200 cP
Mixing efficiency
High energy efficient mixing
Automation
Intuitive,easy-to-operate design
Batch size flexibility
10,000,16,500,25,000 and 45,000 litres tank sizes
Energy efficiency
AMD consumes 60% less energy than high shear pump
Nozzle type
Twin-stage nozzle
Pumping system
Radial Jet Mixer

Operating Characteristics


Modular Design
Flexibly Upgradable
Batch vs. Continuous Operation
Batch / Inline Continuous
Automation Level
Intuitive,Easy-to-Operate Design
Handling Capability
Handles Viscosity up to 200 cP
Mixing Efficiency
High-Speed Continuous Production
Cleaning Method
CIP (Cleaning in Place)

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product range
Juices,syrups,soft drinks,plant-based,dairy drinks

Physical Characteristics


Tank size
10,000 - 45,000 litres
Batch size capability
2,000 - 70,000 litres/hour
Modular design
Flexibly upgradable
Mixing technology
Radial Jet Mixer
Mixing method
Jet-induced turbulence
Injection method
Horizontal injector
Nozzle type
Twin-stage nozzle

Custom Options


Modular Design
Flexibly upgradable
Ingredient Lines
Add more lines
Equipment Upgrade
Handle stabilisers and challenging ingredients
Tank Sizes
10,000 to 45,000 litres
Mixing Capability
Includes Radial Jet Mixer
Twin-Stage Nozzle
For viscous ingredients
Auto Mixing Device (AMD)
For challenging ingredients
