Filled capsule elevator for seamless process integration

Efficiently streamline the transfer of filled capsules across various processes with ease, eliminating manual intervention and ensuring seamless automation while maintaining conformance to cGMP norms.

Automates and Transfers Filled Capsules Efficiently

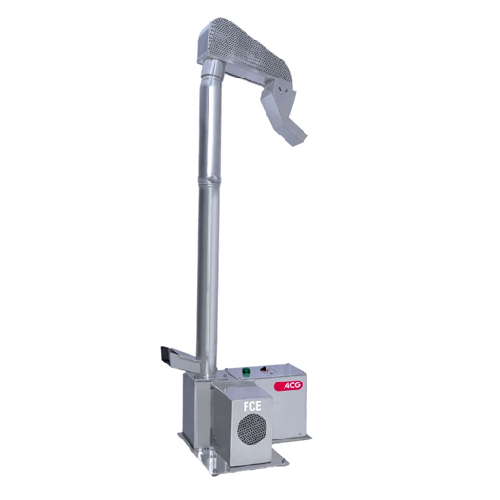

The Filled Capsule Elevator (FCE) from ACG is designed to automate the transfer and conveyance of filled capsules across various processes, such as sorting, check-weighing, and packaging. It excels in transporting gel, veggie, and other capsules without the need for manual intervention, using blower units that support adherence to cGMP norms. The FCE handles a wide range of capsule sizes (000 to 5) without requiring different format parts, enhancing operational efficiency in high-speed, continuous manufacturing environments. With a capacity of up to 250,000 capsules per hour, it integrates smoothly with existing production lines, providing seamless automation for pharmaceutical and nutraceutical facilities. The equipment’s robust design ensures reliable performance and minimal maintenance requirements, making it an essential component for efficient capsule processing and transport workflows.

Benefits

  • Enhances production efficiency by automating capsule transfer, minimizing manual handling.
  • Supports seamless integration, allowing continuous, high-speed conveyance within existing lines.
  • Accommodates a broad range of capsule sizes without additional format parts, reducing setup time.
  • Ensures compliance with cGMP norms, promoting quality control standards.
  • Maintains consistent output of up to 250,000 capsules per hour, optimizing throughput.

General


Applications
Nutraceuticals,Supplements,Capsules,Pharmaceuticals
End products
Vitamin d capsules,Multivitamin capsules,Herbal supplement capsules,Probiotic capsules,Gel capsules,Fish oil capsules,Veggie capsules,Amino acid capsules,Omega-3 capsules,Calcium tablets capsules
Steps before
Sorting
Steps after
Checkweighing,Packing
Input ingredients
filled capsules,capsules of all sizes
Output ingredients
transferred capsules,sorted capsules,checkweighed capsules
Market info
ACG World is known for manufacturing capsules and capsule filling machines, providing integrated pharmaceutical solutions with a strong reputation for innovation, quality, and comprehensive service offerings in the pharmaceutical manufacturing industry.

Technical Specifications


Output
Up to 250,000 capsules/hr
Capsule sizes
000 to 5
Automation
Automates the transfer of filled capsules
Compliance
Supports conformance to cGMP norms

Operating Characteristics


Automation level
Manual to full automation
Operation efficiency
High throughput,up to 250,000 capsules/hr
Batch vs. continuous operation
Continuous
Cleaning method
Minimal manual intervention
Support for capsule sizes
000 to 5
Compliance
cGMP norms

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Automated transfer system
Blower units
Capsule size compatibility
000 to 5
Transfer method
Blower units
Format part requirements
None required for different capsule sizes
Machine type
Filled capsule elevator

Custom Options


Control panel type
PLC-controlled
Capsule size adaptability
000 to 5
