Fill level inspection system for beverage bottling
Ensure compliance and optimize quality control with a system that accurately inspects fill levels across various liquid containers, from PET to glass bottles, keeping your production line running smoothly and reducing waste.
Detects Precise Fill Levels in Containers

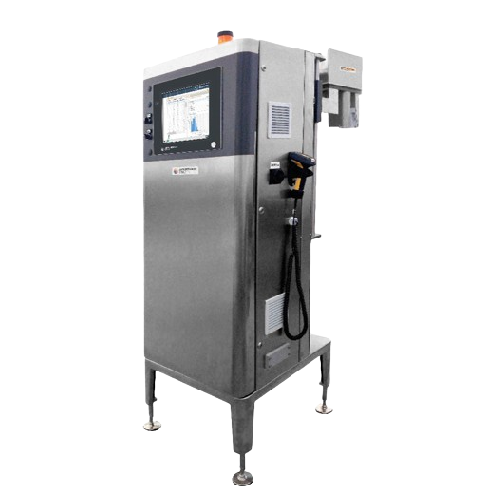

The Fill Level Inspection – CL 700 from Antares Vision Group is engineered to ensure precise fill level detection in beverage and cosmetic containers, addressing efficiency challenges in both standalone units and integrated filler systems. Utilizing high-frequency, X-ray, and IR technologies, the system accurately measures liquid and foam volumes, ensuring compliance with industry regulations. Suitable for various end-products such as soda, wine, and juice bottles, as well as cosmetic containers, the CL 700 can be embedded into filler monoblocs to optimize space and reduce waste. Its versatile configurations allow adaptation to diverse packaging types, including PET, glass, and HDPE, while maintaining high-speed continuous operation. Designed with a user-friendly interface, the system offers expandable data analysis features, catering to the needs of beverage manufacturers and packaging companies.
Benefits
- Ensures regulatory compliance by accurately detecting and compensating for foam interference.
- Saves space and minimizes waste with integrated monobloc system configuration.
- Enhances production flexibility, handling a wide range of container types and sizes.
- Increases operational efficiency with high-speed inspection capabilities.
- Simplifies data management through expandable analysis and historical storage options.
- Applications
- Beverages,Rigid containers,Cosmetics
- End products
- Lotion containers,Liquid soap dispensers,Pet bottles,Wine bottles,Aerosol cans,Soda bottles,Conditioner bottles,Cosmetics jars,Hdpe containers,Juice bottles,Shampoo bottles,Glass bottles
- Steps before
- Bottling,Filling,Foam separation
- Steps after
- Packing,Labeling,Quality checking
- Input ingredients
- bottles,beverages,packaging,foam
- Output ingredients
- accurately filled bottles,compliance-checked containers
- Market info
- Antares Vision is renowned for providing inspection, track and trace, and quality control systems primarily to the pharmaceutical, food, and beverage industries, ensuring product integrity and supply chain transparency.
- Accuracy
- ±0.5%
- Detection type
- X-ray / High-frequency / IR
- Foam compensation
- Yes
- Fill level variation measurement
- Real-time
- Configuration
- Standalone / Embedded
- Bottle formats
- Standard / Mignon
- Technology
- High-frequency / X-ray / IR
- Detection mechanism
- High-frequency,x-ray,IR
- Foam compensation capability
- Yes
- Embedded or standalone operation
- Embedded into filler monobloc / Stand-alone
- Space-saving design
- Reduced footprint
- Bottle format compatibility
- Standard to mignon formats
- Data analysis
- Historical production and picture storage
- User interface
- User-friendly
- Glass Compatibility
- Yes
- PET Compatibility
- Yes
- Metal Compatibility
- Yes
- HDPE Compatibility
- Yes
- Foam Presence Detection
- Yes
- Corrosive Resistance (e.g. acids)
- N/A
- Container size
- Standard to Mignon
- Container type
- PET / Glass / Metal / HDPE
- Filling purpose
- Beverages
- Machine footprint
- Reduced
- Compact footprint
- Yes
- Embedded system
- Yes,into filler monobloc
- Integration possibilities
- Standalone or embedded into filler monobloc
- Footprint
- Compact
- Inspection configurations
- High-frequency,X-ray,IR
