External vial washer for pharmaceutical industry
Ensure complete decontamination of vial exteriors with precision washing and drying, reducing contamination risks and improving production cleanliness, while seamlessly integrating into high-speed pharmaceutical lines.
Cleans and Decontaminates Vial Exteriors

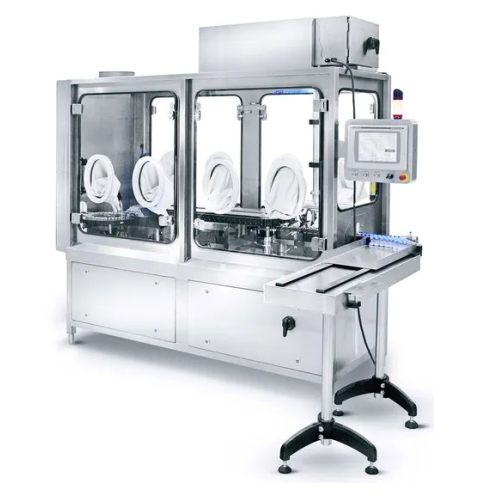

The Hull i-Dositecno Vial Washing and Decontamination Machine is your solution for maintaining rigorous cleanliness standards in pharmaceutical and biotech manufacturing. With low-pressure water nozzles cleaning all vial surfaces from multiple angles, this system ensures thorough decontamination. Designed to handle vials ranging from 2 to 500 mL, the machine is capable of processing up to 400 vials per minute, depending on the model.
The compact units, EVW-60 and EVW-100, require minimal floor space—ideal for facilities with limited space. Both models boast a changeover time of under 20 minutes without tools, enhancing operational flexibility. Utilizing a single feed screw transport system, vials are securely moved through the washing and drying phases, eliminating the need for traditional conveyor belts.
Servo-driven adjustments enable precise positioning for consistent cleaning, while Allen Bradley PLC-controlled systems optimize output rates, managing vial height and water/air flow for each vial size. The equipment’s stainless-steel construction, tempered glass, and advanced air handling system safeguard against contamination, adhering to cGMP compliance. For applications requiring maximum sterility, glove ports and bag-in/bag-out HEPA filters are available. These features, along with easy validation protocols, make Hull i-Dositecno’s machines a vital component in producing sterile injectable, vaccine, and biologic drug vials.
Benefits
- Ensures product safety by maintaining complete decontamination, eliminating contamination risks.
- Saves valuable floor space with a compact design suited for high-speed operations.
- Increases productivity with rapid changeovers, reducing downtime in production.
- Enhances sterility assurance with advanced air handling systems and HEPA filtration options.
- Supports consistent and repeatable cleaning, ensuring compliance with strict pharmaceutical standards.
- Applications
- Biotech,Liquid formulations,Pharmaceuticals
- End products
- Monoclonal antibody vials,Chemotherapy drug vials,Injectable vials,Antiviral medication vials,Hormone therapy vials,Diagnostic reagent vials,Sterile liquid drug vials,Biologic drug vials,Vaccine vials
- Steps before
- Filling,Sealing
- Steps after
- Sterilization,Inspection,Labeling,Packing
- Input ingredients
- sealed vials,vials,vial-dedicated timing screw
- Output ingredients
- clean vials,dry vials,decontaminated vials,vials discharged onto conveyor,vials in tray off collection area
- Market info
- Throughput
- 100 vials/min (EVW-60)
- 400 vials/min (EVW-100)
- Vial range
- 2–125 mL (Compact model)
- 2–500 mL (EVW-100)
- Changeover Time
- 20 min (EVW-60)
- 5 min (EVW-100)
- Cleaning method
- Low pressure water nozzles
- Automation
- Servo-driven adjustments
- Construction Material
- Stainless steel
- Protection
- Enclosure to prevent water ingress
- Transport system
- Vial-dedicated timing screw
- Drying System
- Compressed air / On-board air blower
- Safety Standards
- cGMP compliance
- Control System
- Allen Bradley PLC
- Air Handling System
- Bag in and bag out HEPA filters
- Vial sealing
- Sealed to prevent moisture
- Footprint
- Compact design
- Sterility and containment
- Compatible with glove ports
- Machine Interface
- HMI for feedback
- Cleaning method
- High pressure water nozzles
- Automation level
- PLC-controlled servo motors
- Changeover time
- 5–20 min
- Batch vs. continuous operation
- Inline Continuous
- Vial capacity
- 100–400 vials/min
- Operating pressure
- Up to 90 psi
- Adjustability
- Servo-driven adjustments
- GMP Compliance
- cGMP guidelines
- Machine footprint
- Compact
- Vial size range
- 2 – 500 mL
- Changeover time
- 5 – 20 min
- Feed method
- Single feed screw
- Transport method
- Linear transfer belt
- Construction material
- Stainless steel
- Enclosure type
- Tempered glass windows and doors
- Control panel type
- Allen Bradley PLC-controlled
- HMI type
- Human Machine Interface (HMI)
