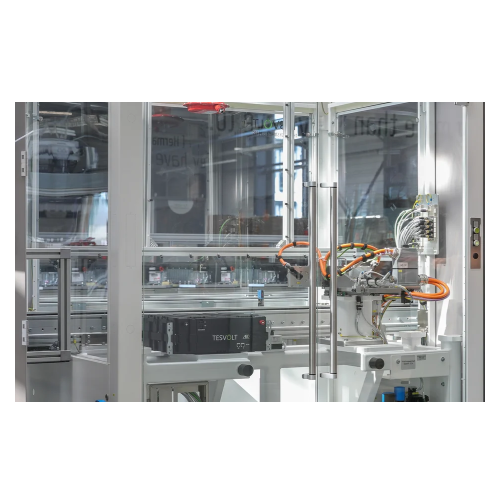

End-of-line battery pack testing system

Ensure the quality and reliability of your battery packs with comprehensive end-of-line testing that covers everything from electrical parameters to integrated battery management systems.

Tests and Validates Battery Packs

The End-of-Line Battery Pack Test System from teamtechnik is a comprehensive solution designed for automotive manufacturers, electric vehicle producers, and battery manufacturers. This system performs complex testing and validation processes, including automated contacting, charging, discharging, and visual inspections, ensuring the reliability of electric vehicle battery packs and energy storage modules. It operates continuously and efficiently, integrating seamlessly into existing production lines with handling robots and AGVs. Capable of testing various battery cell types, such as prismatic and round cells, it ensures safety and performance standards are met. The system is PLC-controlled for ease of operation and provides remote monitoring capabilities, enhancing production oversight. With robust engineering support and customization options, teamtechnik helps optimize your production efficiency and maintain compliance with industry standards.

Benefits

  • Enhances production efficiency with fully automated, continuous operation.
  • Reduces labor costs through PLC-controlled processes and remote monitoring.
  • Ensures product reliability by conducting comprehensive multi-stage testing and validation.
  • Integrates seamlessly into production lines with customizable handling and transport solutions.
  • Supports diverse battery applications, enhancing operational flexibility and product adaptability.

General


Applications
Battery modules,Fuel cells,Battery packs,Battery cells,Batteries
End products
Energy storage battery modules,Round battery cells,Lithium-ion battery packs,Electric vehicle battery packs,Solid-state battery cells,Prismatic battery cells
Steps before
Battery cell assembly,Battery module assembly,Battery pack assembly,Battery management system installation
Steps after
Visual inspection,Pack provision via AGVs,Transportation by interlinked systems
Input ingredients
battery packs,round cells,prismatic cells,electrical parameters,battery management system (BMS)
Output ingredients
tested battery packs,EOL (End-of-Line) test results,begin-of-line test results,mid-of-line test results,integrated optical and electrical tests
Market info
Dürr is known for its expertise in industrial engineering and manufacturing solutions, specializing in automotive painting technology, environmental technology, and production efficiency systems. It has a strong reputation for innovation and quality in engineered-to-order equipment.

Technical Specifications


Automation
Automated testing systems with AGVs
Testing Stages
Begin-of-line,mid-of-line,end-of-line
Handling Robots
Yes,including pick-and-place solutions and magnetic grippers
Visual Inspection
Included as part of the system
Cell Handling
Round and prismatic cells
Contacting Method
Automated contacting
Charging/Discharging
Automated for each battery pack
Cell Transport
Belts,rotary indexing tables
Machine Construction
Standardized but customizable
BMS Installation
Integrated during EOL test

Operating Characteristics


Automation level
Fully Automated
Testing Stages
End-of-Line,Begin-of-Line,Mid-of-Line
Contacting Method
Automatic
Cell Handling Types
Round Cells,Prismatic Cells
Visual Inspection
Included
Pack Provision
AGVs or Interlinked Transport Systems
Battery Management System Installation
During EOL Test

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Discharge method
AGVs or interlinked transport
Compact footprint
Standardized system solution
Cell types
Round and prismatic cells

Custom Options


Control panel type
Touchscreen/PLC interface
Integration possibilities
PLC/SCADA systems
Handling options
AGVs/interlinked transport systems
Cell handling
Round/prismatic cells
Automated contact systems
Automatic contacting/charging/discharging
Visual inspection capabilities
Integrated inspection systems
