Dual laser capsule marking system

Ensure precise and rapid laser marking of tablets and capsules with a dual-laser system, enhancing traceability and compliance while maintaining high-speed production outputs.

Marks Tablets and Capsules with Dual Laser System

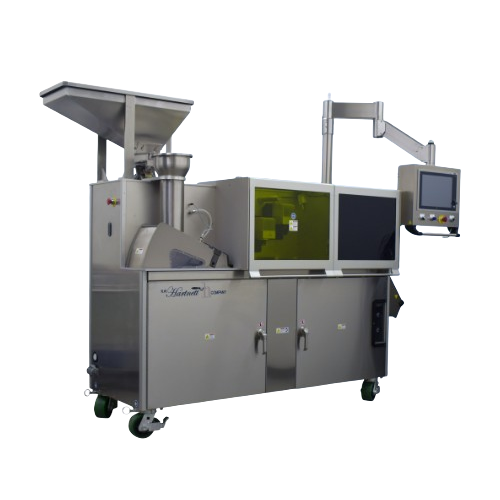

The H-Track Dual Laser Combination Machine from RW Hartnett Company is designed to meet the stringent requirements of pharmaceutical and nutraceutical manufacturers, offering unparalleled precision in laser marking. Utilizing both UV and CO2 laser technologies, this machine ensures clear and accurate markings on tablets and soft gelatin capsules, including paracetamol, Vitamin D softgels, and more. With a production capacity of 120,000 to 180,000 pieces per hour, it integrates seamlessly into high-speed, continuous production lines. Featuring an adjustable feed hopper and level sensing bulk hopper, it maintains optimal fill rates and production speeds. A servo drive system assures precise print registration, while the swingarm 15” touchscreen HMI and Wi-Fi connectivity facilitate intuitive operation and batch recording. Compliance with 21 CFR Part 11 and certifications like CE and UL underscore its reliability and quality. Optional features include a vision inspection system with single-piece rejection and a floor-level infeed bulk conveyor, enhancing quality control and operational efficiency. Configuration flexibility and robust engineering support ensure this machine meets diverse production needs.

Benefits

  • Increases production speed, achieving up to 180,000 units per hour with reliable marking accuracy.
  • Enhances product traceability and compliance with dual UV and CO2 laser systems for clear identification.
  • Supports regulatory adherence with 21 CFR Part 11 compliance and certified safety standards.
  • Minimizes maintenance downtime with quick-change tooling and integrated fume extraction.
  • Facilitates seamless integration into production lines with flexible configuration options and remote monitoring capabilities.

General


Applications
Supplements,Soft gelatin capsules,Nutraceuticals,Pharmaceutical tablets
End products
Multivitamin gummies,Vitamin d softgel capsules,Antihistamine tablets,Iron supplement tablets,Omega-3 fish oil softgels,Herbal supplement capsules,Probiotic tablets,Calcium chewable tablets,Paracetamol tablets,Curcumin capsules
Steps before
Tablet or capsule formulation,Drying,Inspection before marking
Steps after
Quality inspection,Packing,Distribution
Input ingredients
tablets,soft gelatin capsules,titanium dioxide
Output ingredients
marked tablets,marked soft gelatin capsules
Market info
RW Hartnett is known for designing and manufacturing precision printing and vision inspection equipment for the pharmaceutical and confectionery industries, offering high-quality, innovative solutions tailored to client needs, with a strong reputation for reliability and excellence.

Technical Specifications


Production output
120,000 to 180,000 pieces per hour
Electrical
240 VAC / 30 amp / 3 phase
Air pressure
90 psi
Air consumption
5 scfm
Laser type
UV and CO2 laser
Automation
Servo drive system
Touchscreen HMI
Swingarm 15”
Wi-Fi connectivity
Yes
Batch recording
21 CFR Part 11 Compliant
Certification
CE and UL certified
Fume extraction system
Yes

Operating Characteristics


Marking type
Single sided
Automation level
Servo drive system
Changeover time
Quick change carrier bar tooling
Production speed
120,000 to 180,000 pieces per hour
Feed system
Adjustable feed hopper
HMI type
Swingarm 15” touchscreen
Connectivity options
Wi-Fi connectivity
Batch recording
Yes
Inspection capability
Vision inspection system with single piece rejection

Material Compatibility


Marking compatibility
Tablets,soft gelatin capsules
Ink compatibility
Titanium dioxide or without
Laser compatibility
UV laser,CO2 laser

Product type Characteristics


Marking Material Used
Titanium Dioxide
Product Type
Tablet / Soft Gelatin Capsule

Physical Characteristics


Adjustable feed hopper
Yes
Bulk hopper
Level sensing
Touchscreen HMI
Swingarm 15”
Wi-Fi connectivity
Yes
Production output
120,000 to 180,000 pieces per hour

Custom Options


Control panel type
Swingarm 15” touchscreen HMI
Connectivity
Wi-Fi
Carrier bar tooling
Quick change
Hopper
Adjustable
Vision inspection system
Optional
Infeed bulk conveyor
Optional
